TPE car mats are injection molded, blister molded, multi-layer composite molded, and cut molded. Our company mainly does blister molding and composite molding. Blister molding first produces TPE mat sheets and then uses a blister machine to make the car mats of the model we need. Composite car mats are TPE sheets compounded with carpets and then cut into car mats of different models.

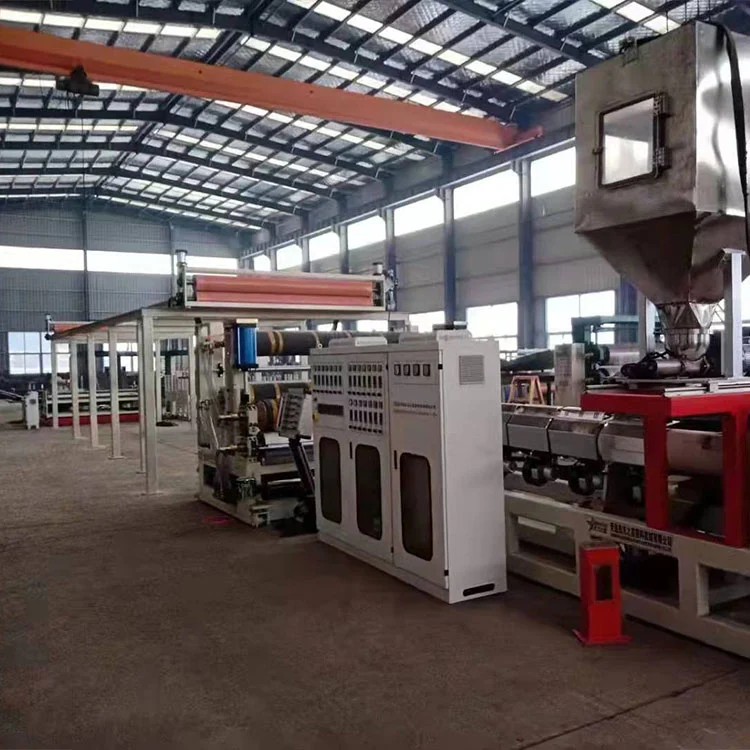

| order number | name | quantity |
| 1． | SL-600 feeder | 1set |
| 2． | SJ-150 / 33 single screw extruder | 1set |
| 3． | Mold and net changing device | 1set |
| 4． | L=2000 MM three-roller optical press | 1set |
| 5． | Roller temperature control system | 1set |
| 6． | Cooling bracket, edge cutting | 1set |
| 7． | hauling engine | 1set |
| 8． | winding machine | 1set |

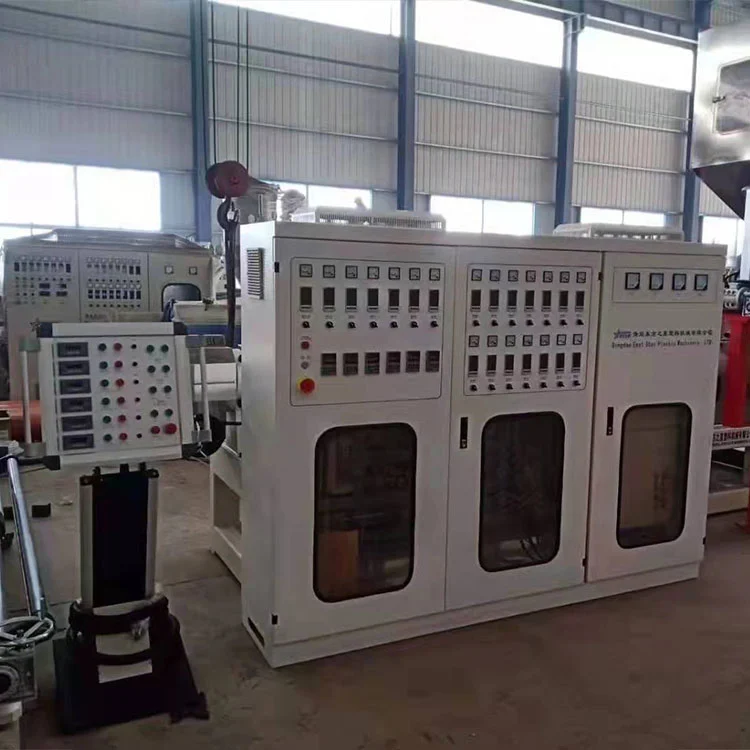

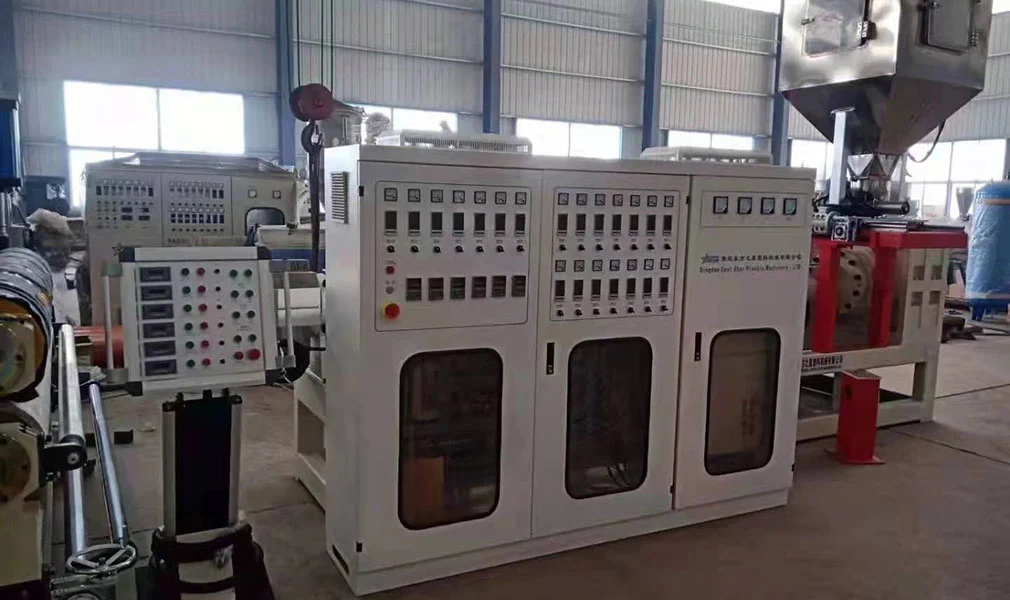

| 9． | Complete electrical control system | 1set |
TPE Car Mat Sheet Extruder Machine-SJ-150 / 33 single screw extruder
Screw barrel and temperature control
| Screw material | 38CrMoAL, nitride steel |
| Screw hardness | HV950 |
| Machine cylinder material | Drum wear-resistant material, nitride steel |
| Machine cylinder hardness | HV 1050 |
| Screw diameter | 150 mm |
| draw ratio | 33/1 |
| Power of main motor | 160 KW |
| Host heating of the total power | 42KW |
| Bottle heating method | Casting aluminum or ceramics |
| Temperature control mode | Automatic temperature control, fan forced cooling |
Main motor and speed control method
| Motor brand | Qingdao Hongqi or Rongcheng Tailida motor |
| power of motor | 37KW AC |
| motor speed | 1450rpm |
| mode of speed regulation | Shenzhen Weichuang or Chengdu Senlan frequency converter controller |
| Motor protection class | IP54 |
| cooling fan | Equipped with independent fan |
Main motor and speed regulation mode
| Motor brand | Rongcheng Telida motor |
| power of motor | 160KW AC |
| motor speed | 1450rpm |
| mode of speed regulation | Inwitten or Fletron frequency conversion controller |
| Motor protection grade | IP54 |
| cooling fan | With independent fan |

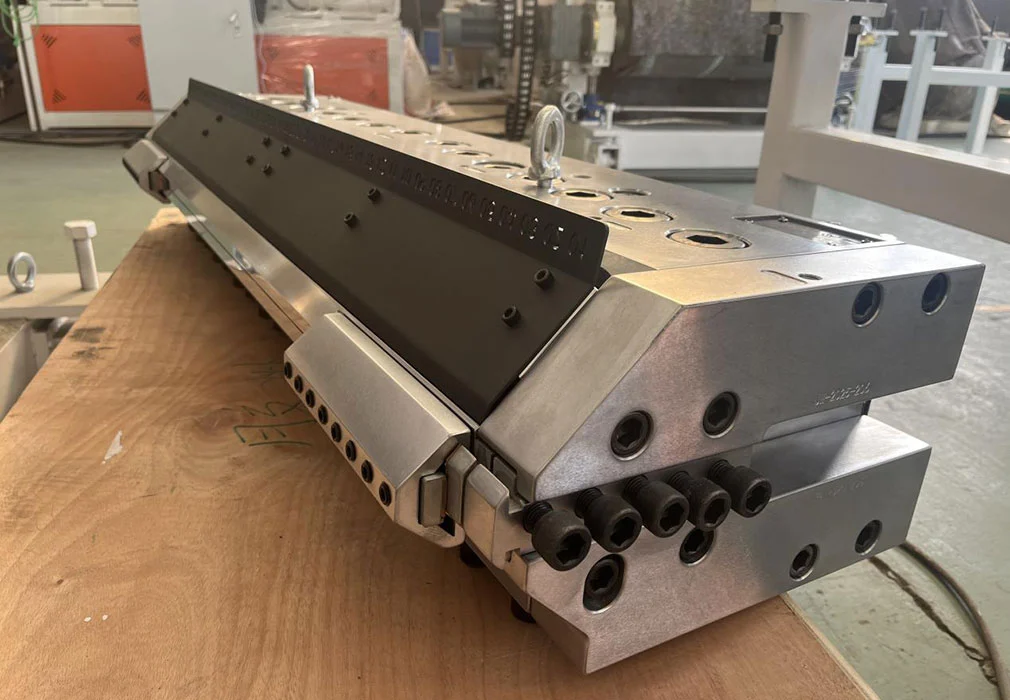

TPE Car Mat Sheet Extruder Machine-Extrusion mold
| structure | Clothes hanger type flow channel, T-shaped mold |
| material quality | High quality mold steel |
| The chromium plating treatment of the internal flow channel of the mold, and the minimum thickness of the chromium plating layer 0.03-0.05mm | |
| Polished to mirror (cavity Ra 0.1um, mold lip Ra 0.05um) | |
| die width | 1950mm |
| Thickness of the product | 2-5mm |

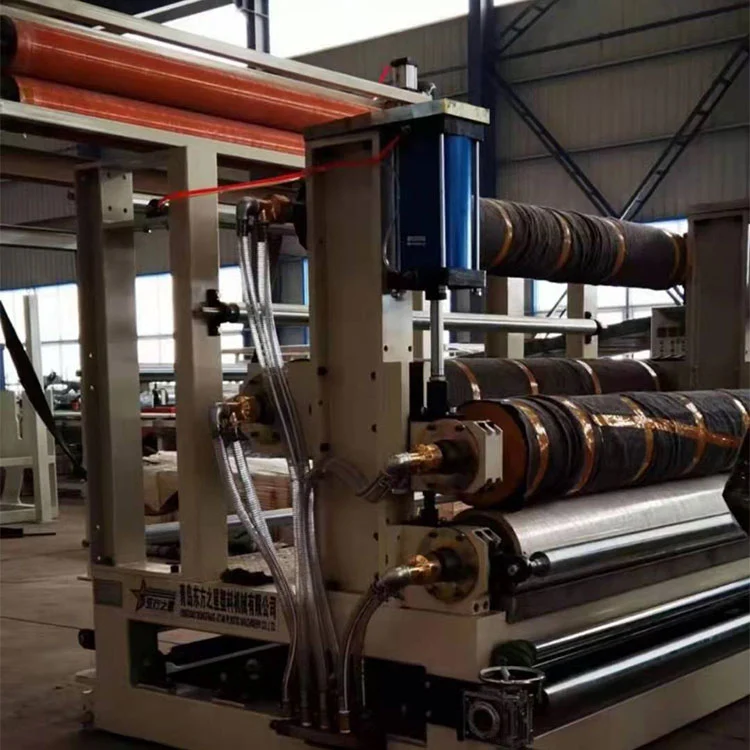

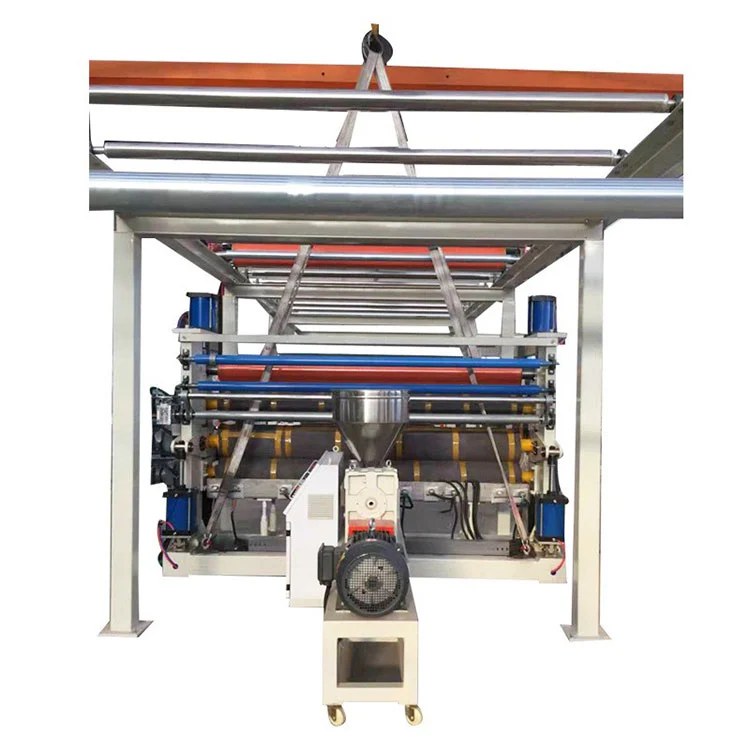

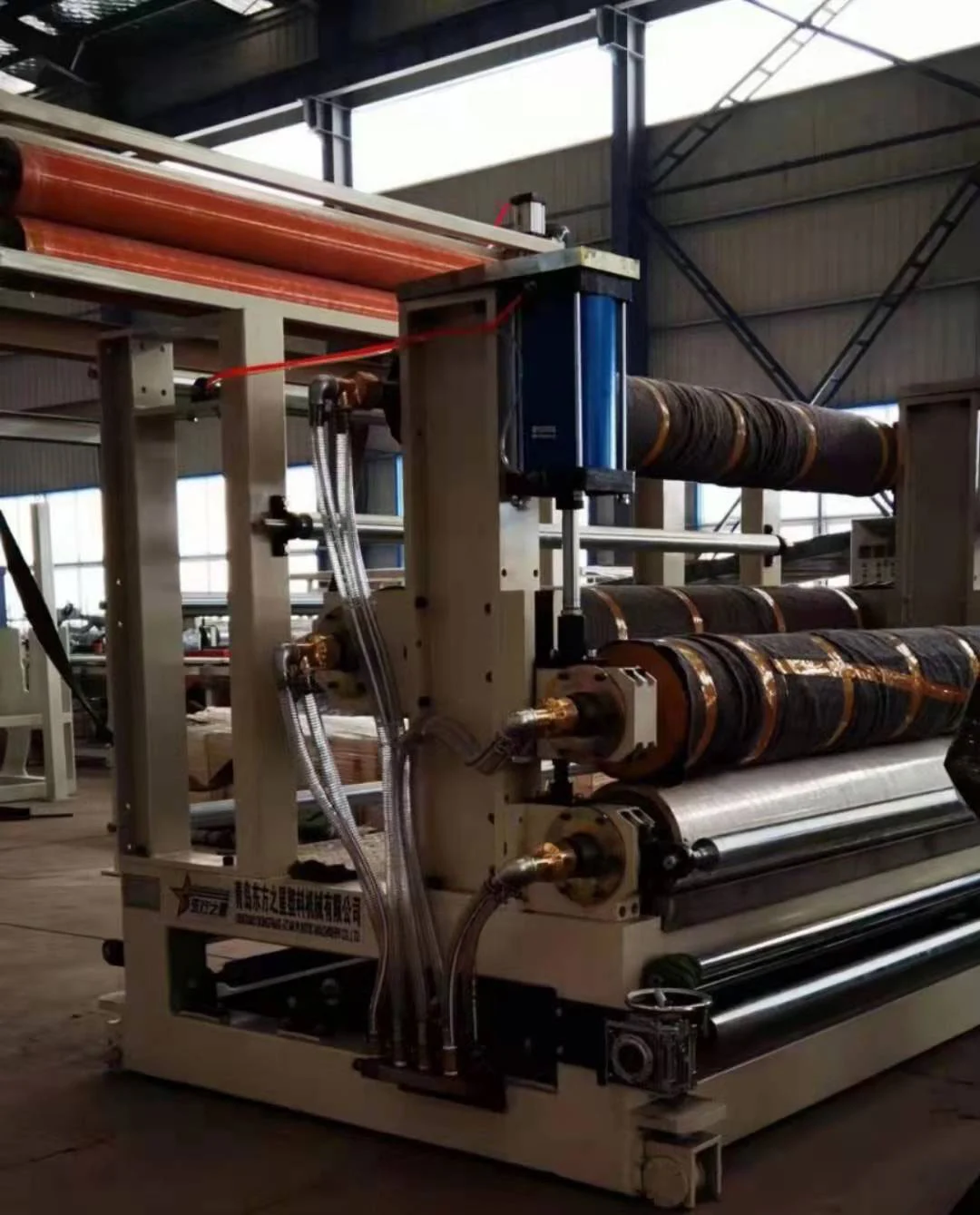

TPE Car Mat Sheet Extruder Machine-Three calendar
| Roller diameter | 450mm |
| Effective width of roller | 2000mm |
| Roller material | 45 Steel |
| Roller structure | Qingdao roller making or Xuzhou Saite machinery special multi-flow channel design |
| axiality | ≤0.005mm |
| Roller finish | Ra≤0.016um |
| Roller surface hardness | HRC58-62 |
| Chrome thickness | 0.08mm |
| Transmission deceleration box | Redson or Felocca brand |
| transmission power | 3×2.2 KW |
| Speed control | Shenzhen Flehuang or Flehuang frequency conversion controller |
| Three-roller clearance adjustment mode | Cylinder adjustment, safety emergency stop switch, synchronous control system. |
| Three roll form | Vertical type |
| Three roll wall board | Integral steel plate welding processing |
| Three-roller centering roller bearing | Ha axis or tile house shop |
| revolving joint | Shandong first force seal |
TPE Car Mat Sheet Extruder Machine-Tractor
| specifications | Ф240×2000mm |
| material quality | Nitrile roller |
| transmission | reduction box |
| power | 2.2 Kw |
| control | Wei Chuang frequency conversion control |
| Step up the way | pneumatic |
| Synchronization with the three rolls can also be independent |

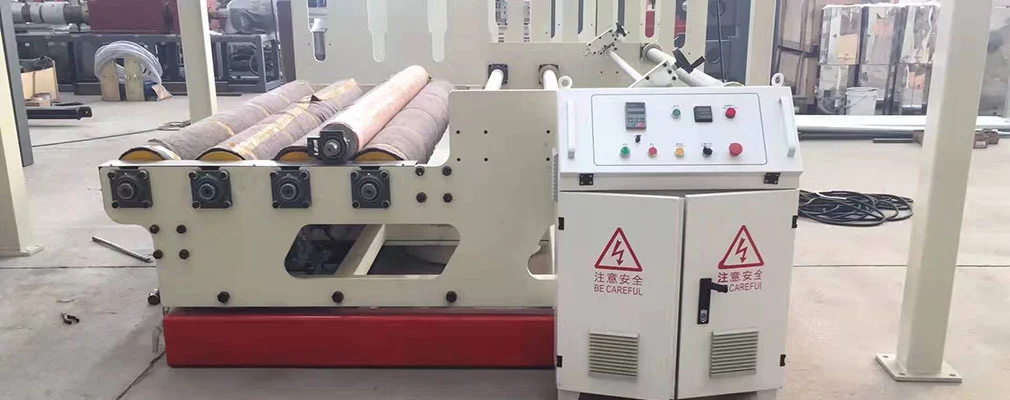

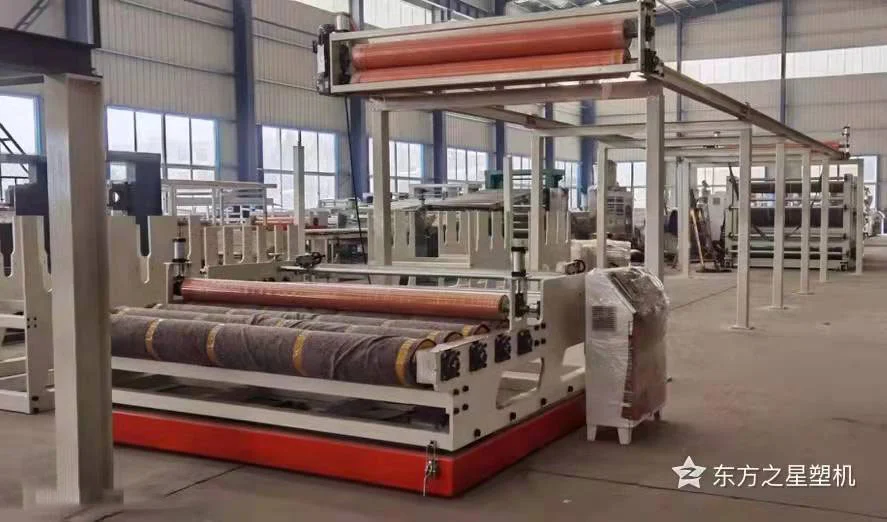

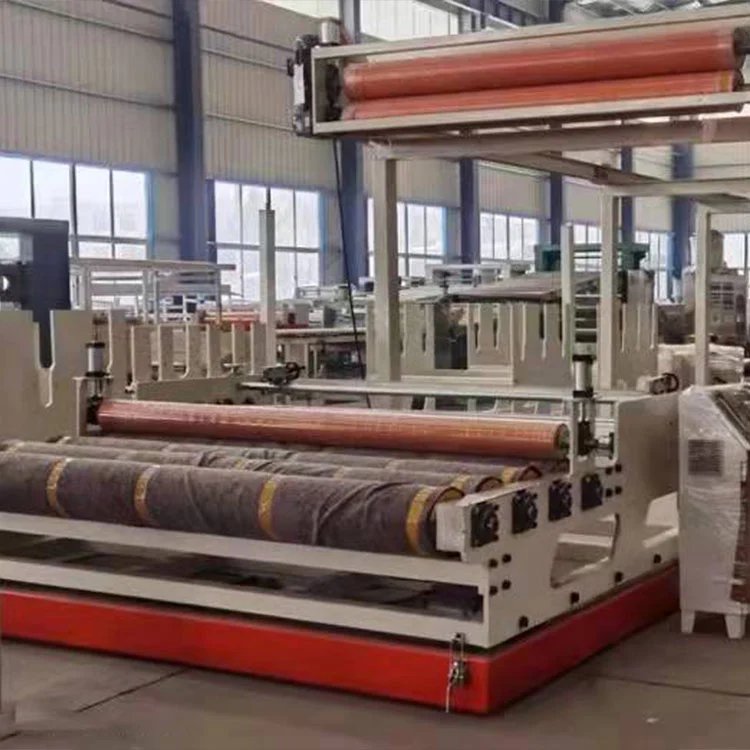

TPE Car Mat Sheet Extruder Machine-Winding machine
| transmission | Frequency conversion control |
| form | Duplex |
| Drive the motor | 2.2KW |
| control | Automatic length counting |
| Volume diameter | 300-500 mm |
