PVC blister sheet extruder machine includes extruder, mold, calendar, tractor, cutter, conveyor platform

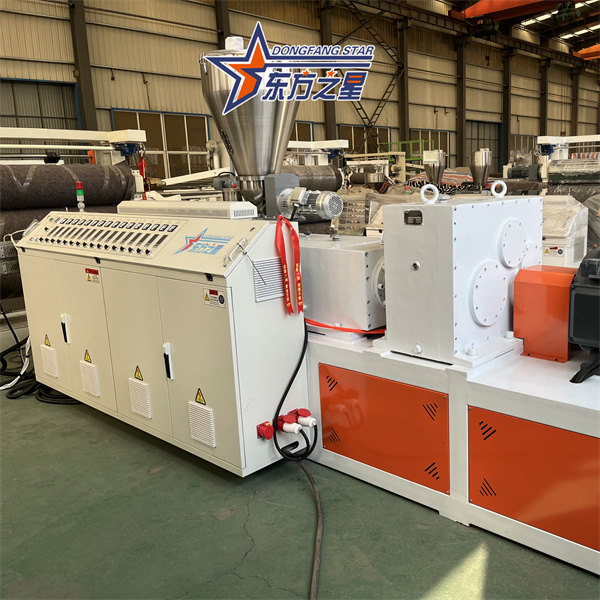

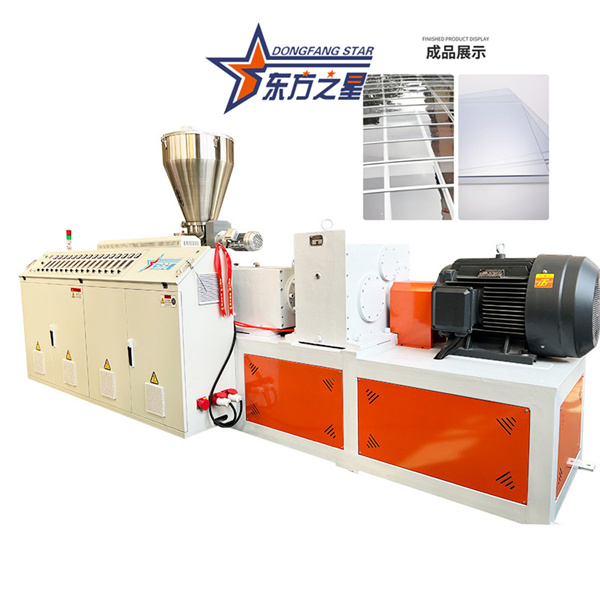

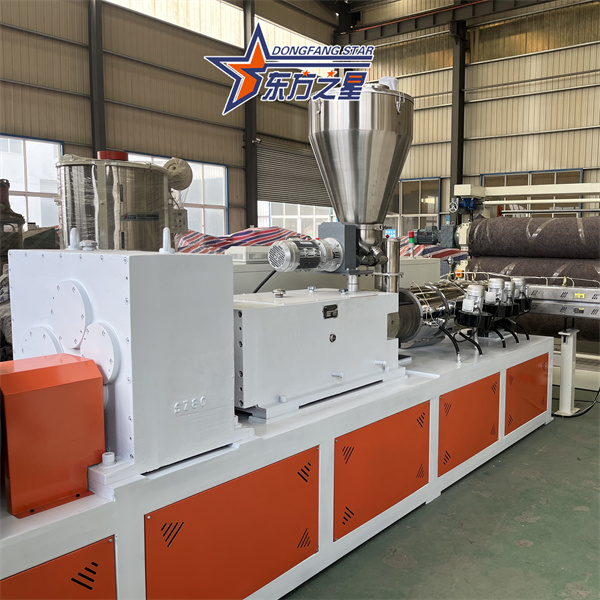

Extruder: Usually a conical twin-screw extruder is used, which is suitable for the processing of PVC materials.

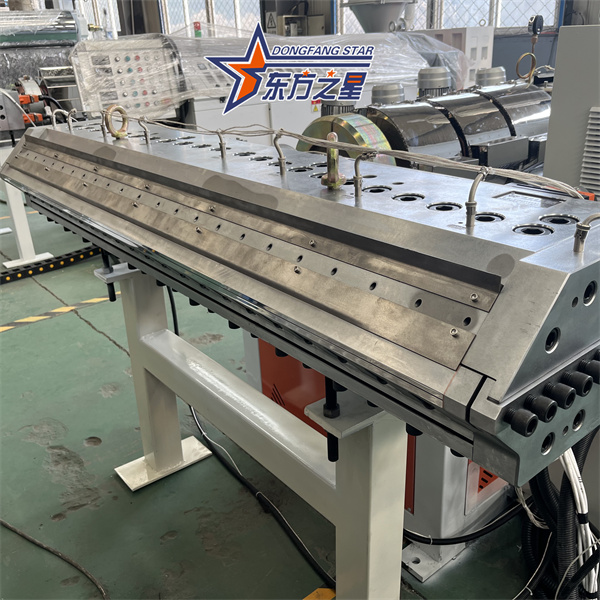

Mold: Generally a hanger-type die head
Calendar: Its function is to calendar the extruded sheet to improve the surface finish and flatness of the sheet, and further control the thickness of the sheet.
Tractor: Usually composed of two or more rollers, it is used to haul the calendered sheet forward at a stable speed to ensure the continuity of sheet production, and cooperate with the extruder and calender to control the thickness and dimensional accuracy of the sheet.

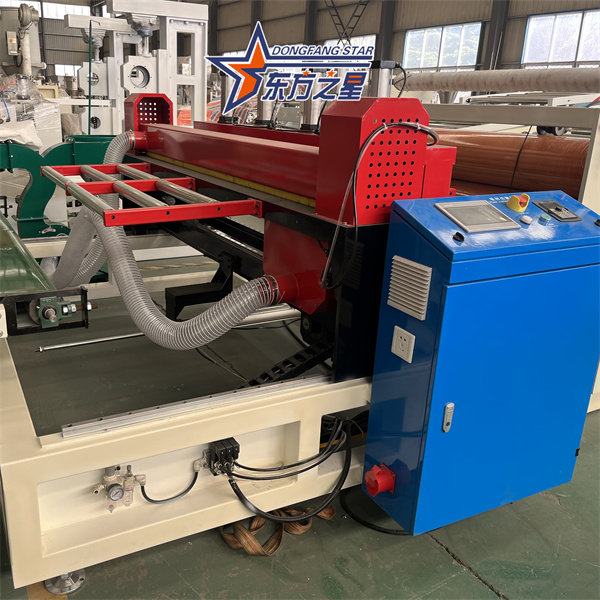

Cutter: The sheet can be cut into plates of different lengths according to demand
PVC Plastic Sheet Extrusion Machine- Equipment list and quotation
| order number | name | quantity | remarks |
| 1 | Stainless steel screw feeder | 1 set |
The main components of the whole line are made by well-known domestic and foreign brands: 1. The electrical system adopts Siemens contactor, Omron intelligent temperature controller and Invtensor frequency converter. 2. The hard toothed reducer adopts high torque gear reducer for plastic machine. 3. Screw barrel is made of screw from Zhoushan, Zhejiang province 4. The mirror roller is made in Qingdao or Xuzhou. 5. The mold is made of Huangyan. |
| 2 | SZ80-twin screw | 1 unit | |
| 3 | MJ-1700 optical panel mold | 1 set | |
| 4 | BF-1800X ∗ 400 three roll calender | 1 unit | |
| 5 | BF-1800-6000 cooling bracket | 1 set | |
| 6 | BF-1800X ∿ 220 rubber roller traction machine | 1 unit | |
| 7 | BF-1800 cutting machine | 1 unit | |
| 8 | Three-in-one oil roller constant temperature machine | 1 set | |
| 9 | DK-18 district extrusion production line electrical control cabinet | 1 set | |
| 10 | Double-sided film covering device | 1 set | |
| 11 | manipulator | 1 set | |
| 11 | Random device technical data | 1 copy |
