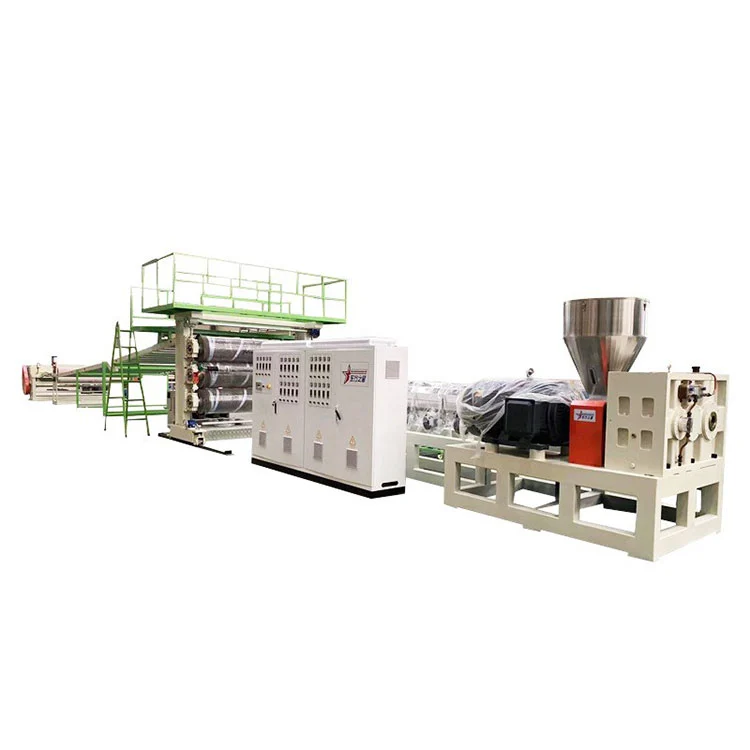

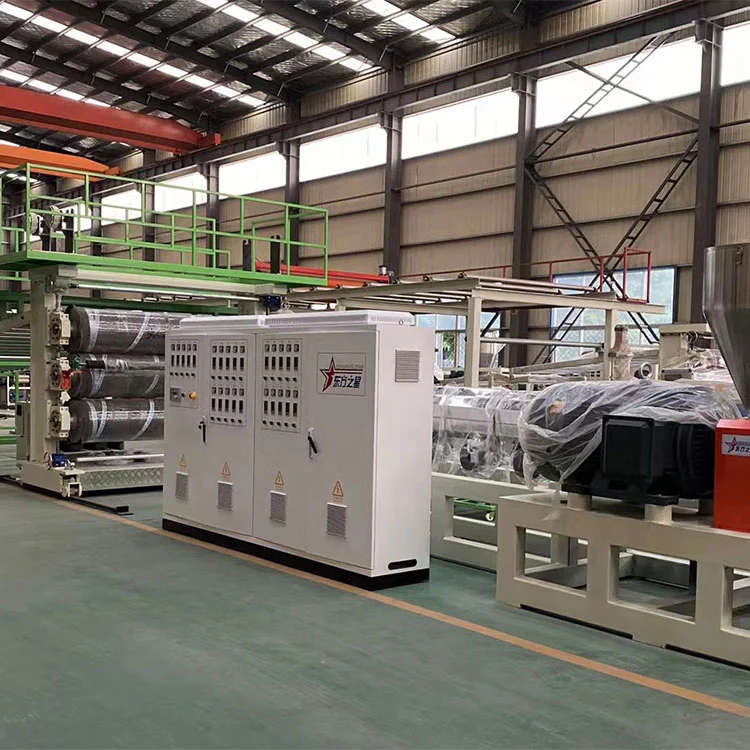

ABS Single Layer Board Extruder Machine

Qingdao Eaststar Plastic Machinery Co., Ltd. is a professional manufacturer of ABS sheet extruder machine, ABS Single Layer Board Extruder Machine, ABS double-layer sheet extruder machine, ABS three-layer sheet extruder machine, width 600-3000mm, thickness 3-30mm,All can be produced, and the factory has all models in stock, welcome to come and inspect.

What is the difference between ABS single-layer sheet and multi-layer sheet?

ABS single-layer sheet is produced by one extruder, and multi-layer sheet is produced by two or more extruders. Single-layer sheet uses one raw material and has a relatively simple structure. ABS Single Layer Board Extruder Machine is a composite of multiple raw materials, with a relatively complex process and relatively high technical requirements.



Product parameter

1. SJ-120 / 33 single screw extruder 1set
2. T -die 1 set
3. three-roller optical press 1set
5. Cooling bracket 1 set
6. Traction machine 1set
7. Cutting machine 1set

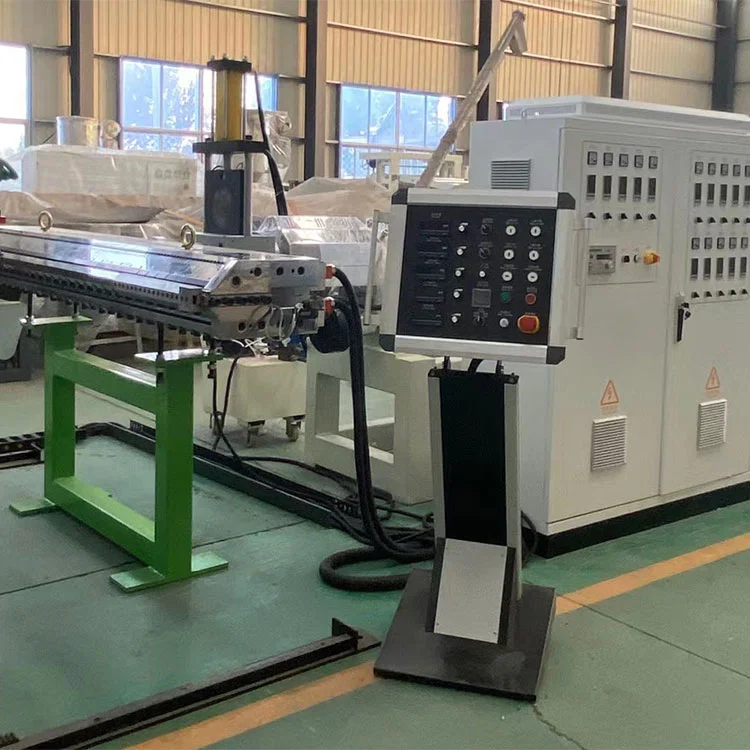

8. Complete electrical control system 1set


Product detail

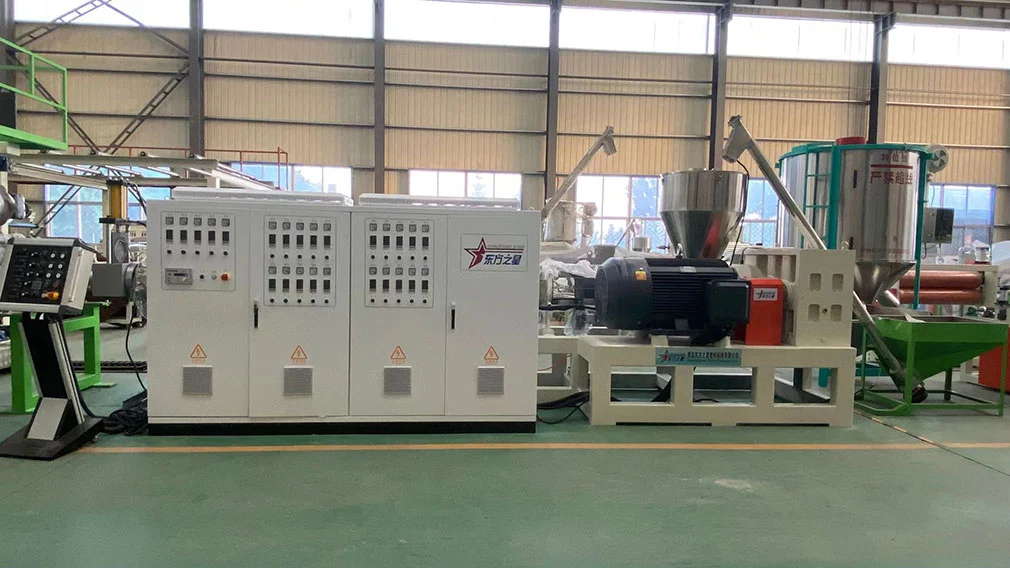

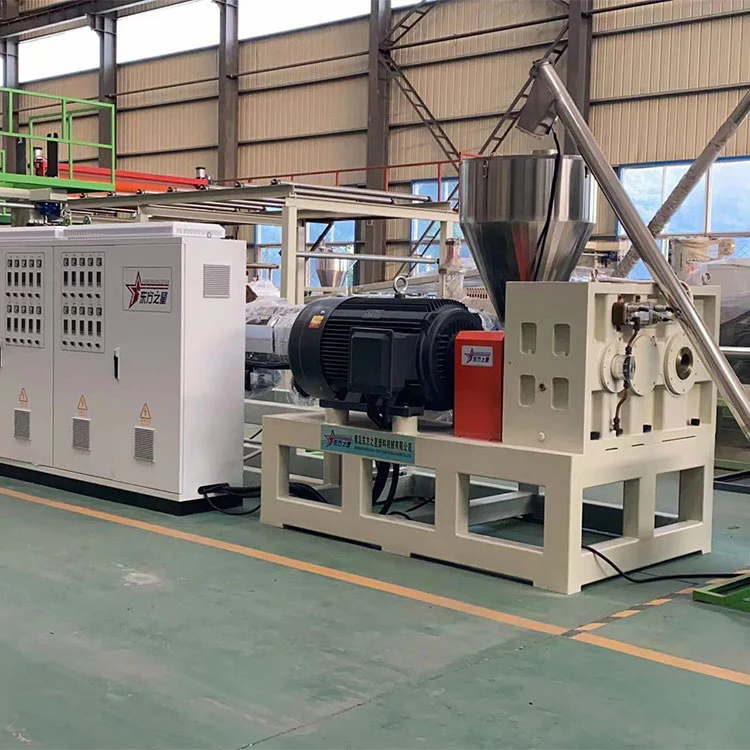

SJ-120 / 33 single screw extruder

Abs Single Layer Board Extruder Machine


Screw barrel and temperature control

Screw material 38CrMoAL, nitride steel
Screw hardness HV950
Machine cylinder material Drum wear-resistant material, nitride steel
Machine cylinder hardness HV 1050
Screw diameter 120mm
draw ratio 33/1
Power of main motor 90KW
Bottle heating method Casting aluminum or ceramics
Temperature control mode Automatic temperature control, fan forced cooling

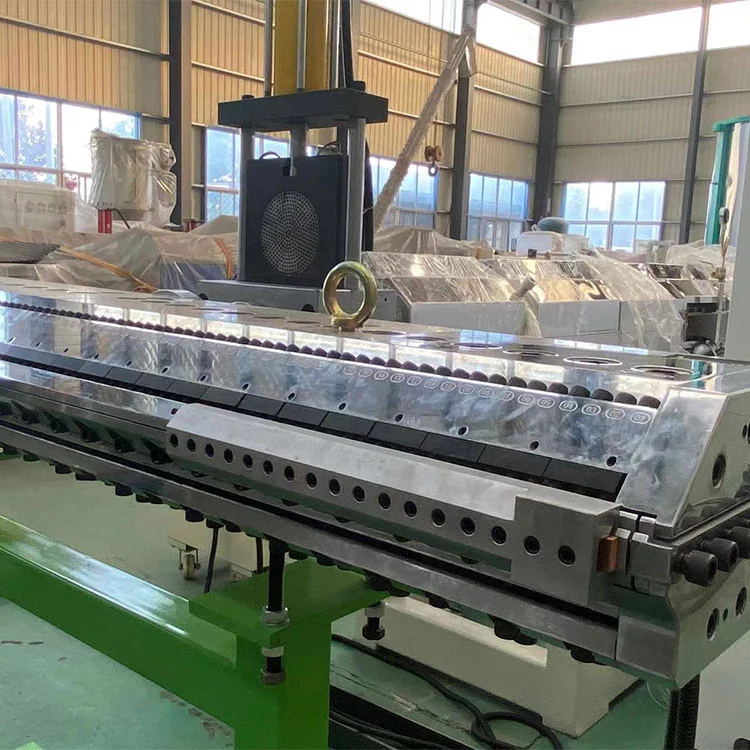

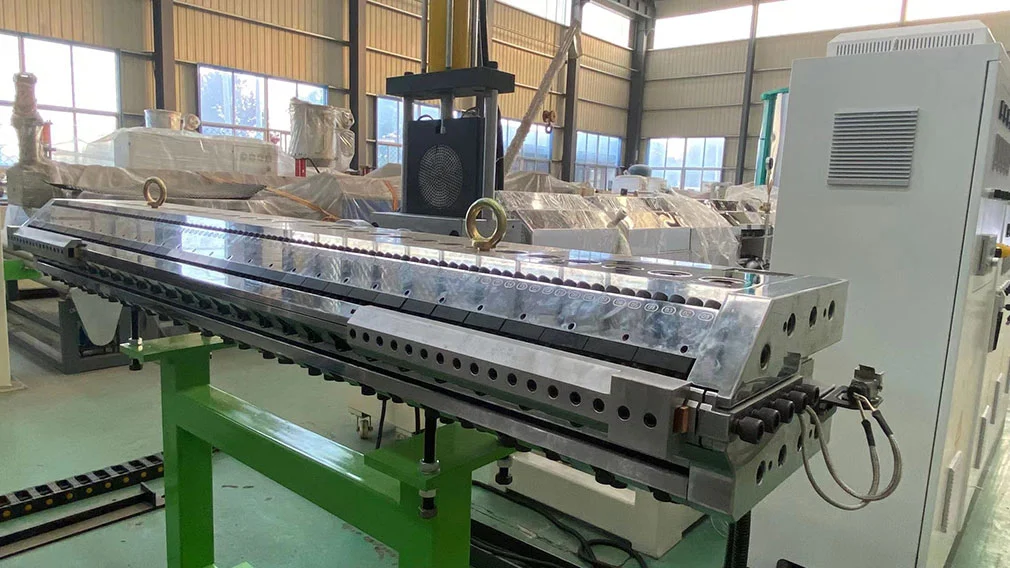

Mold

Abs Single Layer Board Extruder Machine

structure Frack flow channel, T mold
material quality High quality mold steel
The flow channel inside the mold is chrome-plated, and the minimum thickness of the chrome-plated layer is 0.03-0.05mm
Polished to mirror (Ra 0.1 um, Ra 0.05 um)
die width 1250mm
Product thickness 0.3-2.5mm

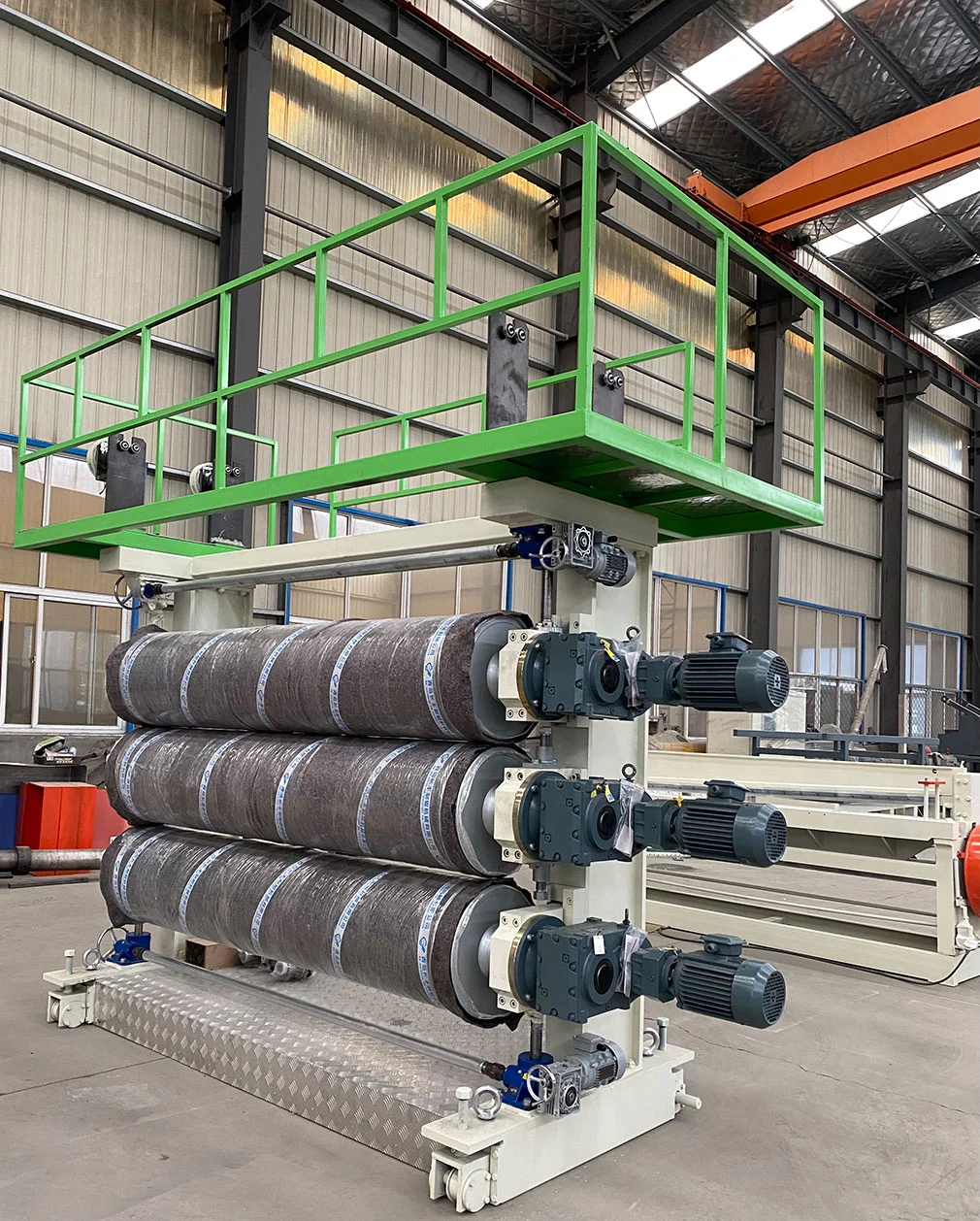

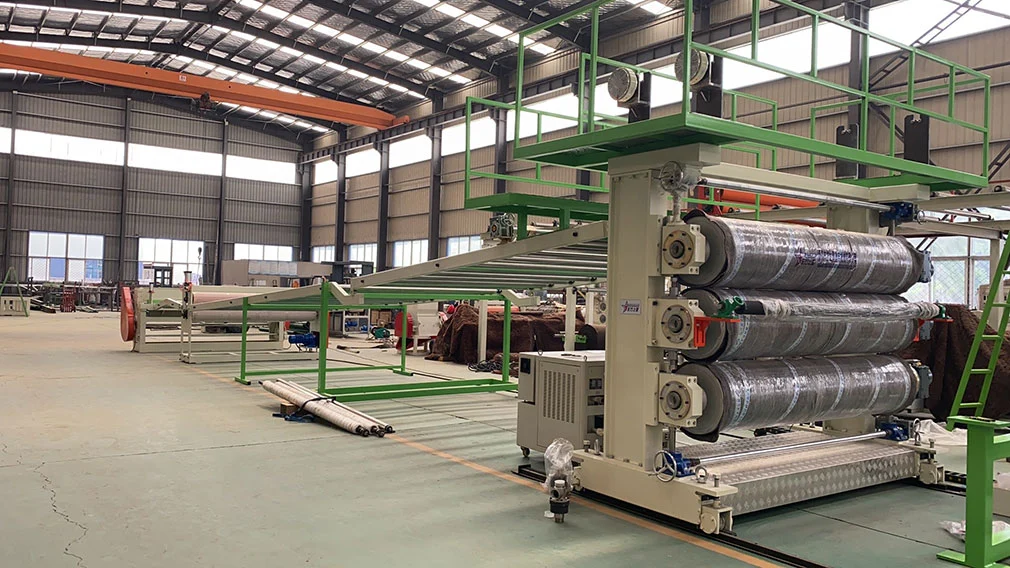

Three-calendar

Abs Single Layer Board Extruder Machine

Roller diameter 450mm
Effective width of roller 1400mm
Roller material 45 Steel
Roller structure Qingdao roller making or Xuzhou Saite machinery special multi-flow channel design
axiality ≤0.005mm
Roller finish Ra ≤0.016um
Roller surface hardness HRC58-62
Chrome thickness 0.08mm
Transmission deceleration box Redson or Felocca brand
transmission power 3×2.2KW
Speed control Ying wei teng
Three-roller clearance adjustment mode Cylinder adjustment, safety emergency stop switch, synchronous control system.
Three roll form Slant 45° type
Three roll wall board Integral steel plate welding processing
Three-roller centering roller bearing Ha axis or tile house shop
revolving joint Sino-foreign joint venture


Cooling bracket

Abs Single Layer Board Extruder Machine

The length of the bracket 6 Meters
Hollers (unpowered) Quality stainless steel roller
specifications Φ 75×1400mm


Tractor

specifications Ф220×1400mm
material quality Nitrile roller
transmission reduction box
power 2.2Kw
control Wei Chuang frequency conversion control
Step up the way pneumatic
