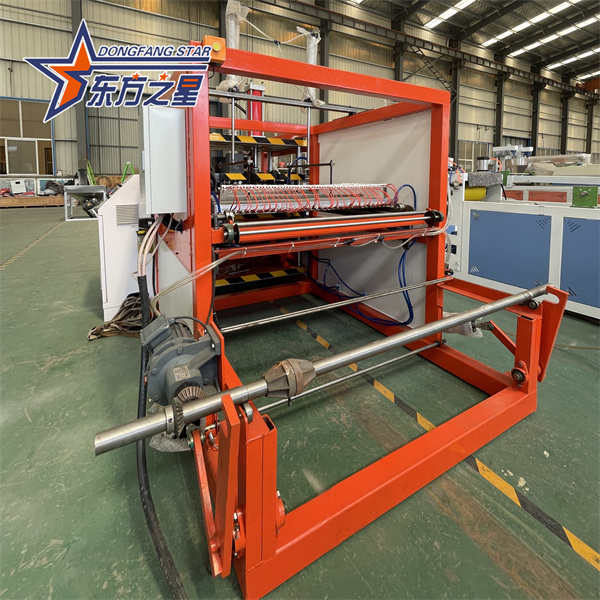

Root Control Equipment Introduction
Root control equipment, also known as a fully automatic root control molding machine, is an automated plastic processing equipment specifically designed for producing root control containers (root control devices) for landscaping and seedling cultivation. It primarily uses hot pressing/roll forming processes to process PE, PP, PVC, PET, and other plastic sheets into root control rolls/sheets with raised and recessed structures and ventilation holes.
I. Core Equipment Functions
Automatic Production Line: Integrates automatic feeding, heating and plasticizing, calendering/stamping, simultaneous punching, edge trimming, meter cutting, and automatic winding.

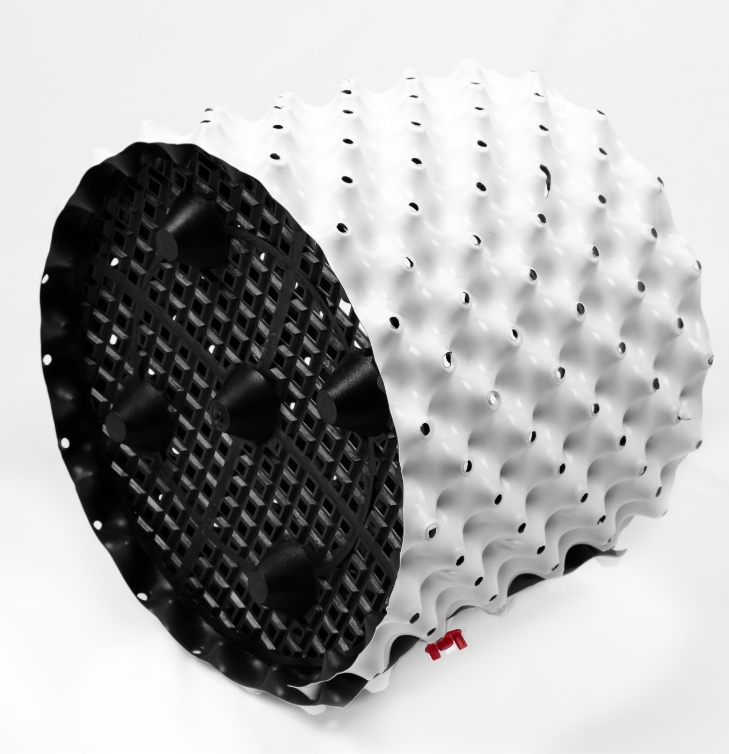

Root Control Structure Forming: Continuously presses alternating raised and recessed wave/protrusion structures onto the sheet material, and punches ventilation holes at the tips of the protrusions to achieve a "air-based root control" physical root control effect.
Flexible Specifications: Molds can be quickly changed to produce root control devices of different heights (30–100cm), thicknesses, and protrusion spacings.
II. Equipment Structure and Components
Automatic Feeding Machine: Capable of feeding 200kg inner rolls of material, infrared sensor automatic feeding, stable and without deviation.
Heating System: Stainless steel U-shaped heating tube + digital temperature control, quickly softens the sheet, energy-saving and durable.
Forming Main Unit
Pressure Forming: Hydraulic double cylinder + lever linkage, high-speed stamping.
Roll Forming: Multiple sets of die rollers continuously roll, suitable for long roll production.
Drilling/Trimming System: Simultaneously completes punching of raised dots and edge trimming, precise dimensions.
Cooling and Shaping: Air-cooled/water-cooled rapid shaping, ensuring structural stability and no deformation.
PLC Control System: Touch screen human-machine interface, servo motor drive, adjustable parameters, one-button start/stop.
Cutting/Rewinding: Automatic meter cutting or continuous rewinding, finished products are ready for direct use.
III. Technical Parameters (General)
Applicable Raw Materials: PVC, PE, PP, PET plastic sheets (thickness 0.8–2.5mm)
Molding Width: Standard 600–1200mm (customizable)
Production Efficiency: 80–150m³/min (continuous production)
Total Power: 5.5–15kW
Temperature Control Range: Ambient temperature–220℃
Equipment Dimensions: Approx. 8000×1800×1800mm
Machine Weight: 3–6 tons
IV. Core Advantages
Fully Automatic: 1-person operation, saving labor and increasing efficiency.
Stable Quality: Uniform structure, precise hole positioning, neat edges, high strength, aging resistance, and reusable finished products.
Multi-purpose: By changing the mold, it can produce root control devices, drainage boards, root barrier boards, tree surrounds, etc.
Low Cost: Continuous molding, high material utilization rate, suitable for large-scale production. V. Application Areas The root control containers we produce are widely used in:
Landscape greening, nursery seedling cultivation, fruit tree planting
Potted flowers, balcony planting, rooftop greening
Seedling transplanting, improving survival rate (up to 95%+)
