HDPE aluminum-plastic board a special material made by combining HDPE and aluminum foil through a special process. It is light in texture, easy to carry and install, which greatly saves installation costs. It is corrosion-resistant, not easy to rust when used outdoors, has a long service life, a smooth surface, a variety of colors, and a good decorative effect.
● Extruder
● hydraulic screen changer
● mold
● 3-Roll Calender
● High polymer film cover unit
● sheet cutting edge unit
● aluminum roll put-off device
● Composite equipment
● Oil heater
● Air cooling system
● protective film cover unit
● Haul off unit
● horizontal and Longitudinal cutting
● Electric control system
● Spiral feeding

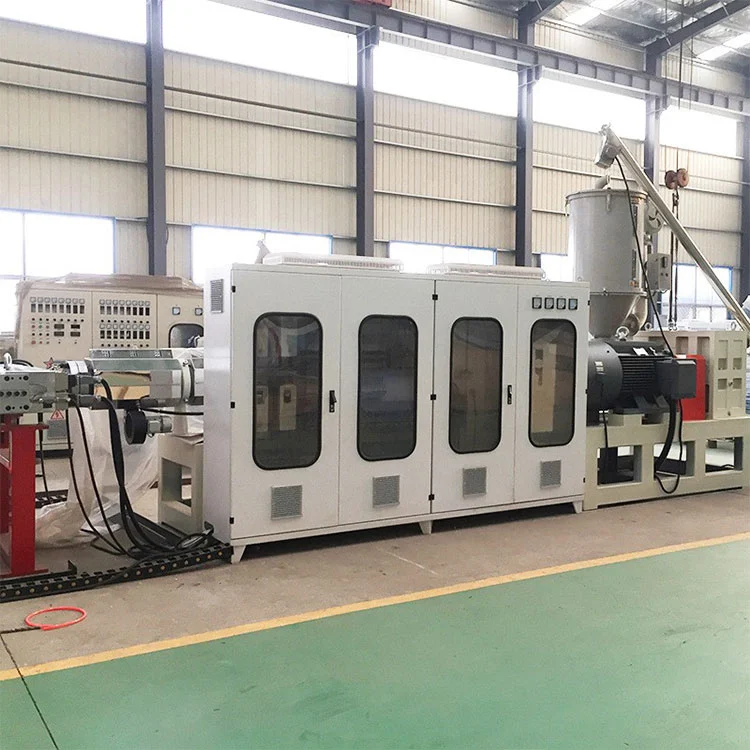

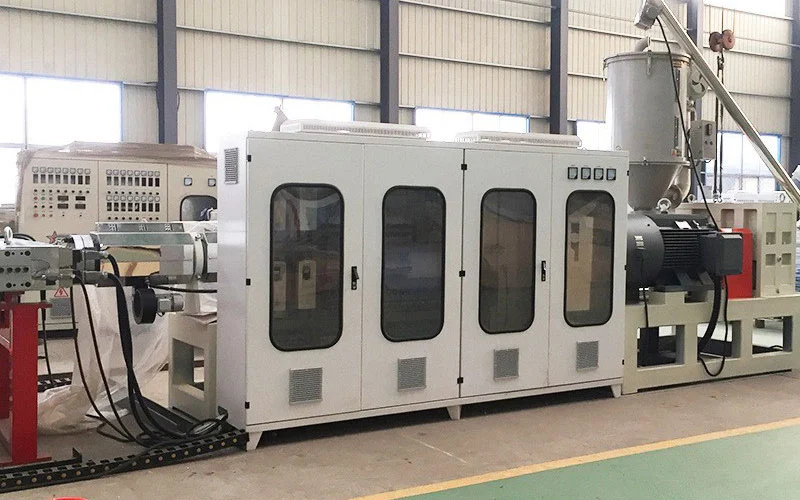

1. Main extruder
1.Size: JET-120/35
2.Main motor:
―――Power: 132kw
―――Speed control: Inverter control
3.Gear box
―――L/D: 1:20
―――lubrication: 150＃gear oil with gear pump oil wheel lubrication
―――Cooling: Water cooling
4.Screw
―――Diameter: 120mm
―――L/D: 35:1
―――Material: 38CrMoAL
―――Surface nitriding process
5.Barrel
―――Surface infiltration nitrogen, polish
―――6kw 6zone electric heating, the fifth zone 4kw, other every zone power 6kw
―――1zone Air cooling, every zone fan power 250W 3P, recycling water cooling
6.Temperature control and low voltage electrical
―――16zone temperature control, use OMRON temperature controller
―――all ow voltage electrical adopt Delixi
HDPE Plastic Board Extruder Machine-Screen changer
―――Type: hydraulic auto change
―――Material: Steel
――― inner surface heat treatment、polishing
―――Hydraulic unit: Hydraulic pump motor 3P 2. 2kw/30L
―――Temperature control zone: total 3 zones
―――Heating way: 6kw
Plastic Board Extruder Machine-Mold
―――Mold mouth width: 1400mm, adjust
―――Mold thickness: 1-6mm, adjust
―――Heating zone: 5zones
―――Heating power: 18kw
HDPE Aluminum-Plastic Board Extruder Machine-3-roller calender
―――Material: 45＃ steel double layers spiral structure
―――Surface Polishing plating hard chromium
―――Three roller diameter: 400mm
―――Water heating: 6kw Total 3 zones, every zone 6kw
―――Water pump motor: 3P asynchronization two grade motor, total 3 units, every unit 2. 2KW
―――Cooling system: Water pool or cooling tower
―――1. 5kw 3 roller individual transmission, Gear box transmission rate 280:1
―――Motor adjust speed device: Inverter
―――Potentiometer and synchronization controller. up middle down can separate adjust and synchronization adjust speed with haul off synchronization
――― 3 zone temperature controller、Adopt OMRON temperature controller
―――all low voltage electrical adopt Delixi

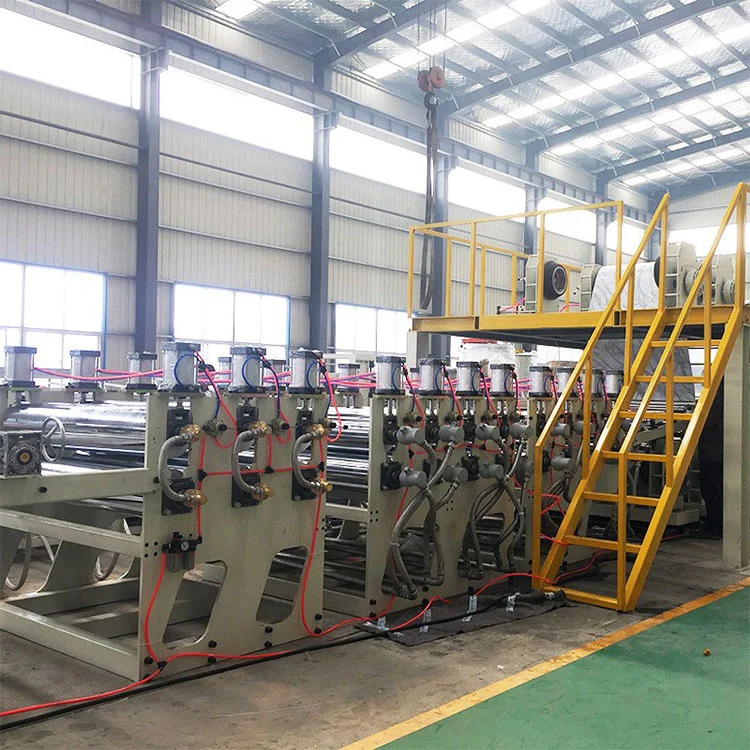

HDPE Aluminum-Plastic Board Extruder Machine-High polymer film composite, cutting edge unit
―――composite: Φ200X1500 rubber roller gas press cover film
―――Cutting edge: white steel knife
―――Controller: Adopt ZK-2 tension controller

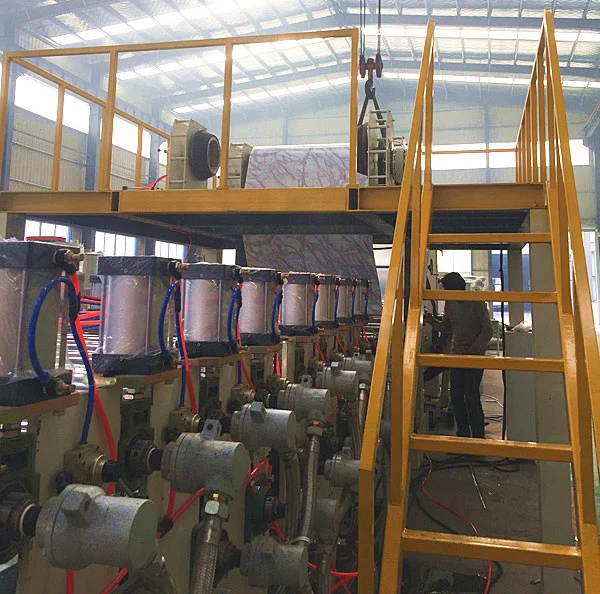

HDPE Aluminum-Plastic Board Extruder Machine-aluminum roll put off unit
―――Width: 1300mm
―――Aluminum roll diameter: 1300mm
―――Core size: Φ405mmand Φ150mm
―――Correction partial device: manual
