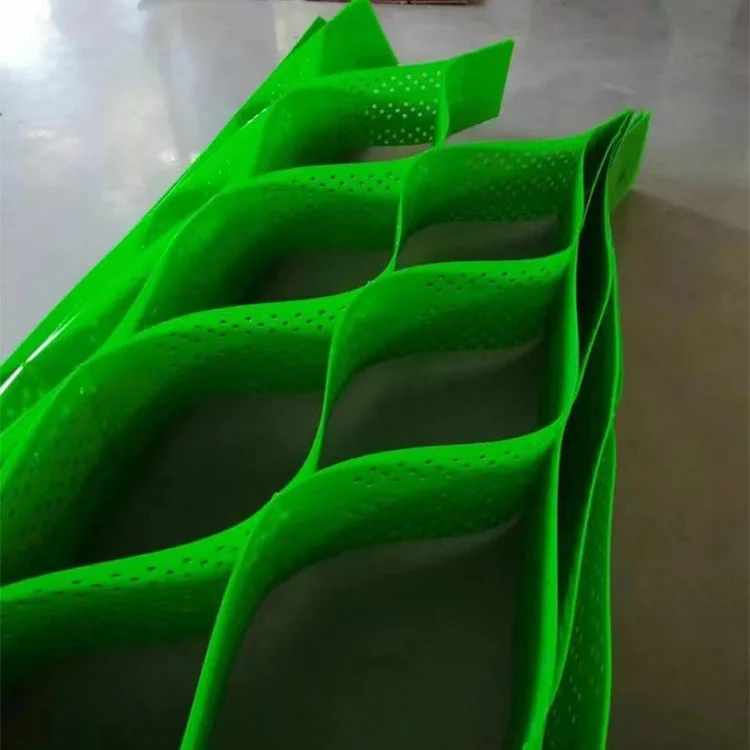

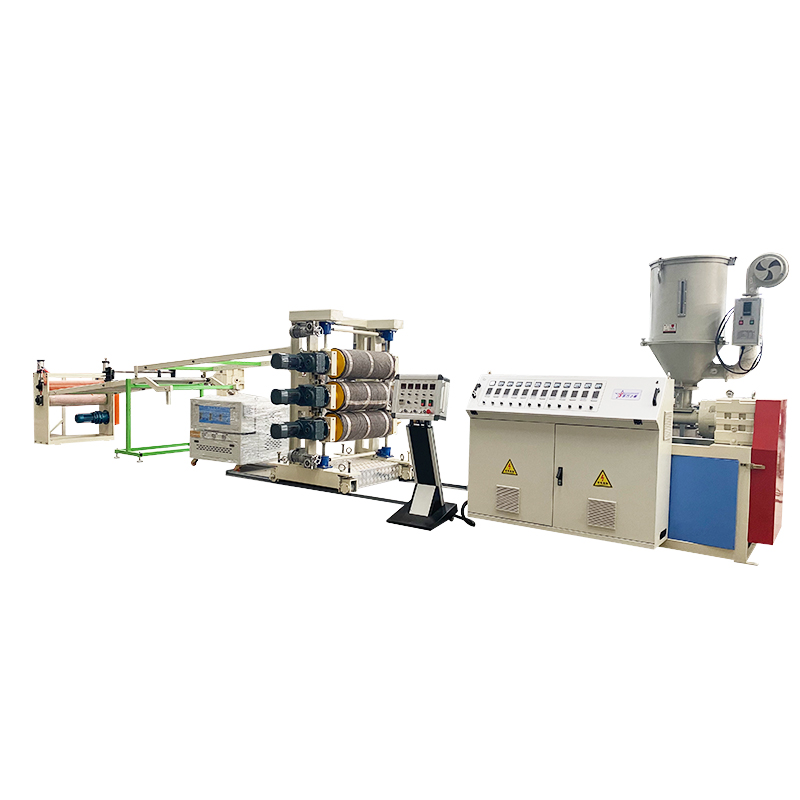

HDPE Geocell Sheet Extruder Machine raw materials used in the production of this equipment are granular HDPE/PP pellets (can be stored in bags or silos). After being manually poured into the material box, it is sent to the extruder hopper through a screw feeder, plasticized by the extruder, extruded into sheets by the die, and cooled by the three-roll calender and cooling rack. After traction, it is punched or cut online, and then welded by the geocell automatic welder, tested, packaged and put into storage for use.

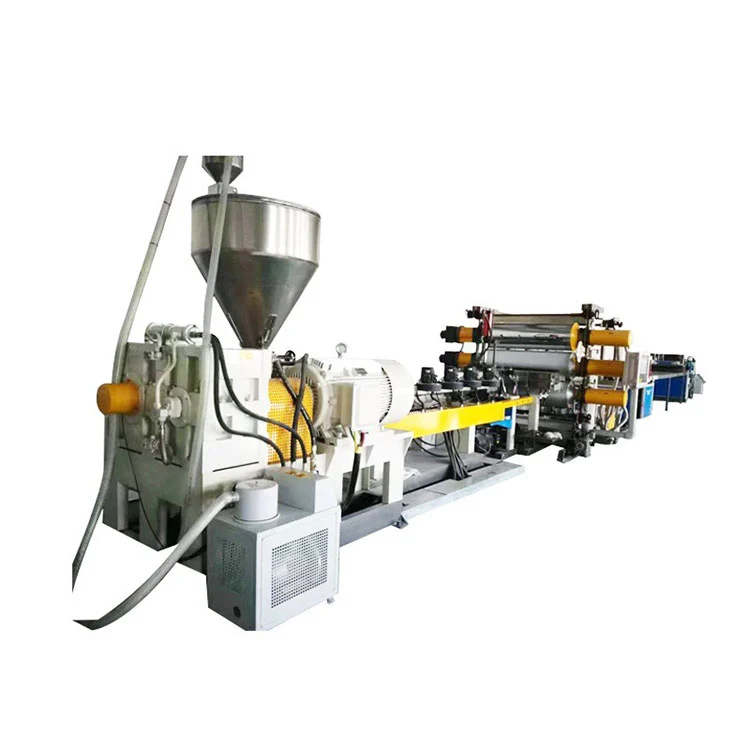

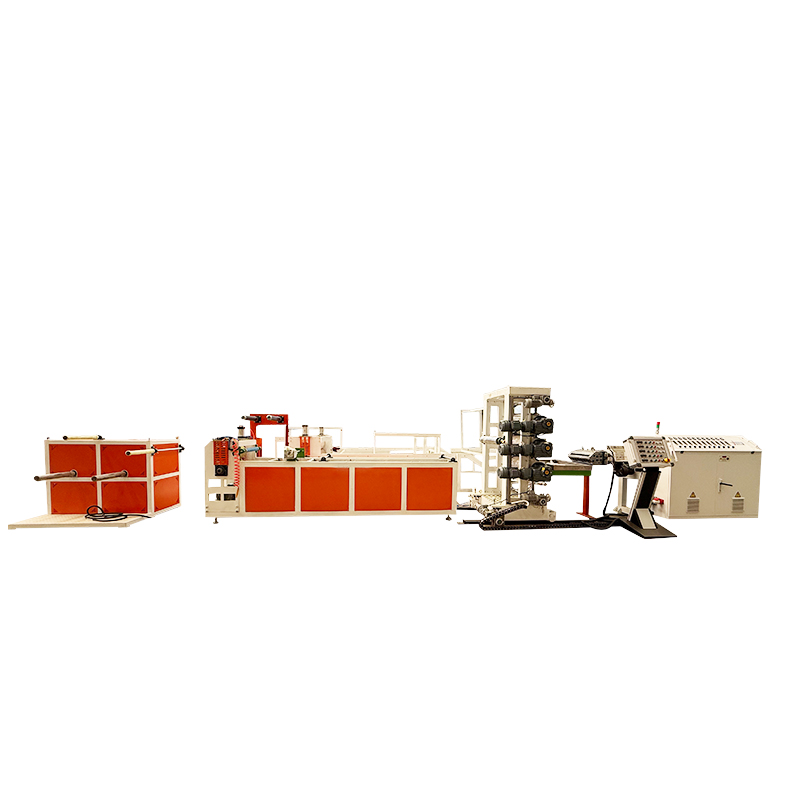

The specific process flow is as follows: Dry mixed material → extruder → die → calender → cooling rack → traction → cut to size → cell welding → finished product → storage

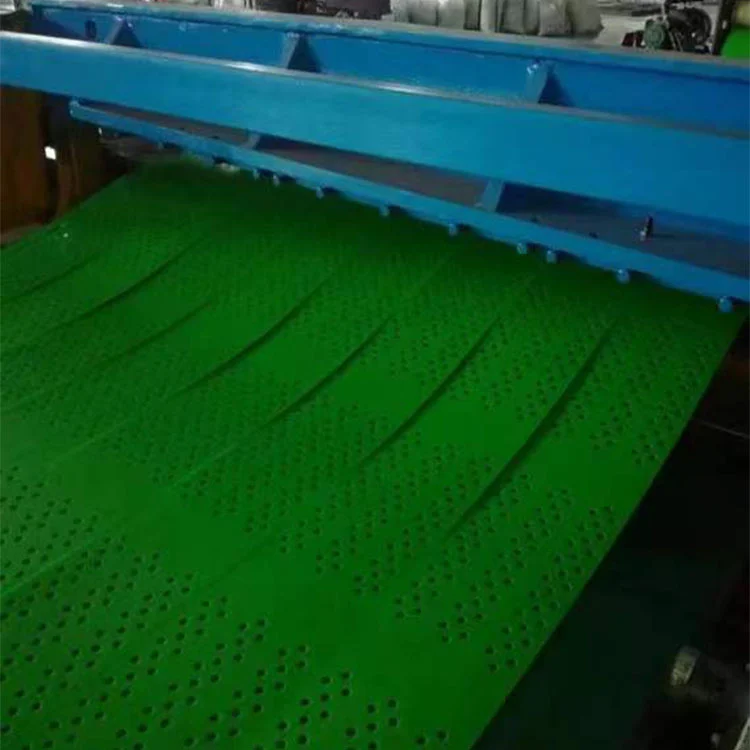

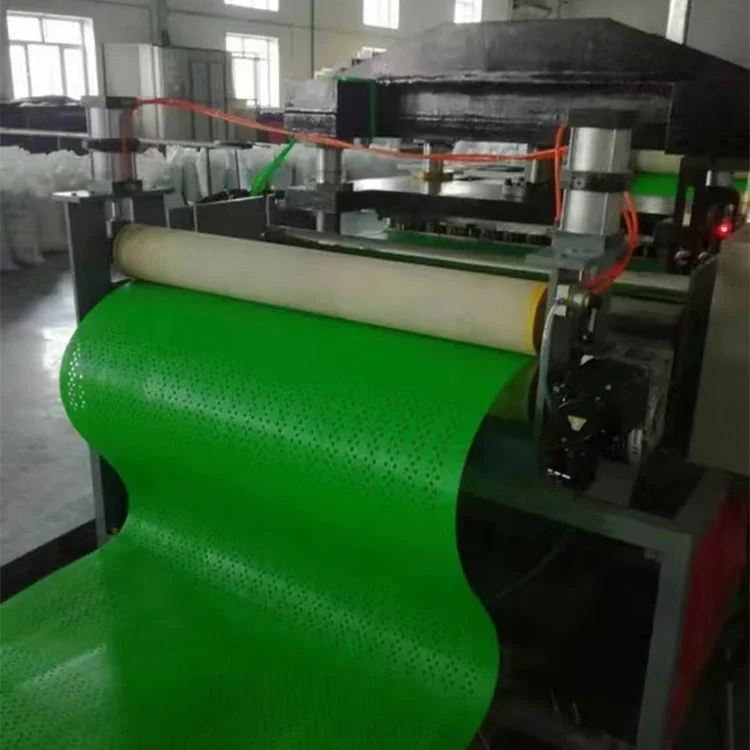

| 1． | SJ-120 / 33 single screw extruder | 1set |
| 2. | Single channel double hole quick screen changer | 1set |
| 2 | Mold jingcheng brand | 1set |
| 3． | One three-roll calender | 1sets |
| 4． | air cooling device1set | 1set |
| 5． | Sheet draw-off machine | 1set |
| 6． | Online Punching machine | 1 set |
| 7． | Cutting machin | 1set |

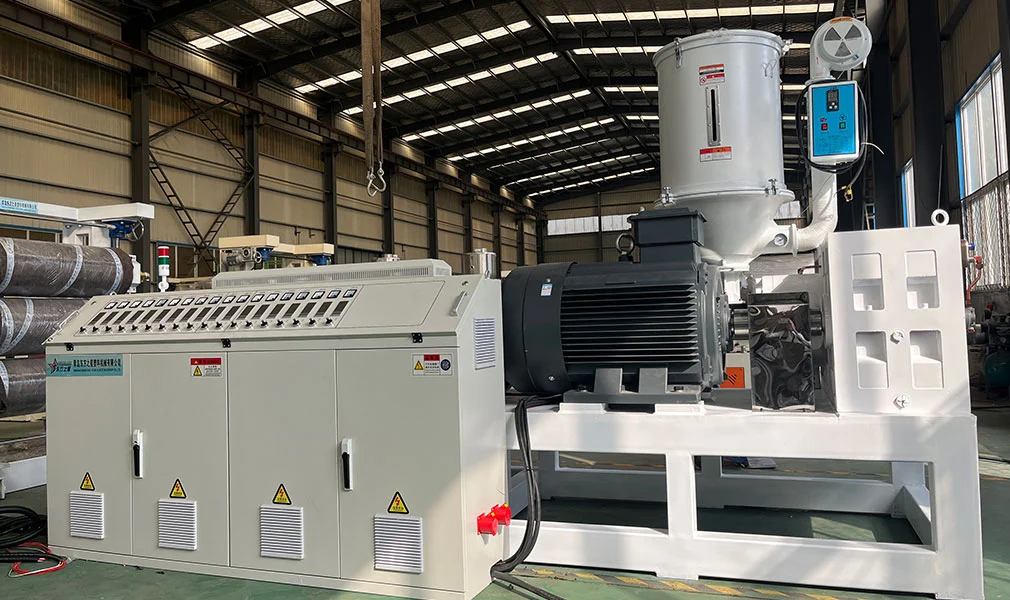

SJ-120 / 33 single screw extruder
Screw barrel and temperature control
| Screw material | 38CrMoAL, nitride steel |
| Screw hardness | HV950 |
| Machine cylinder material | Drum wear-resistant material, nitride steel |
| Machine cylinder hardness | HV 1050 |
| Screw diameter | 120mm |
| draw ratio | 33/1 |
| Power of main motor | 90KW |
| Bottle heating method | Casting aluminum or ceramics |
| Temperature control mode | Automatic temperature control, fan forced cooling |
Hydraulic net changer
1) The screen changer adopts a special internal mechanism to ensure good sealing performance
2) Each mold body part of the screen changer is made of alloy steel and is heat treated
3) The control form of the screen changer is full hydraulic control
4) Hydraulic control power: 3hp
5) Hydraulic cylinder diameter: ∮100mm
6) Equipped with 1 set of pressure sensing system, using electronic digital pressure display instrument
| specifications | Net diameter: 150mm |
| hydraulic pressure station | independent control |
| hydraulic fluid | 60 # Above |
| pumping power | 2.2KW |
| hydraulic component | Adopt Taiwan |
| pressure pickup | Adopt domestic brands |
HDPE Geocell Sheet Extruder Machine Mold
| structure | Frack flow channel, T mold |
| material quality | High quality mold steel |
| The flow channel inside the mold is chrome-plated, and the minimum thickness of the chrome-plated layer is 0.03-0.05mm | |
| Polished to mirror (Ra 0.1 um, Ra 0.05 um) | |
| die width | 1250mm |
| Product thickness | 0.3-2.5mm |

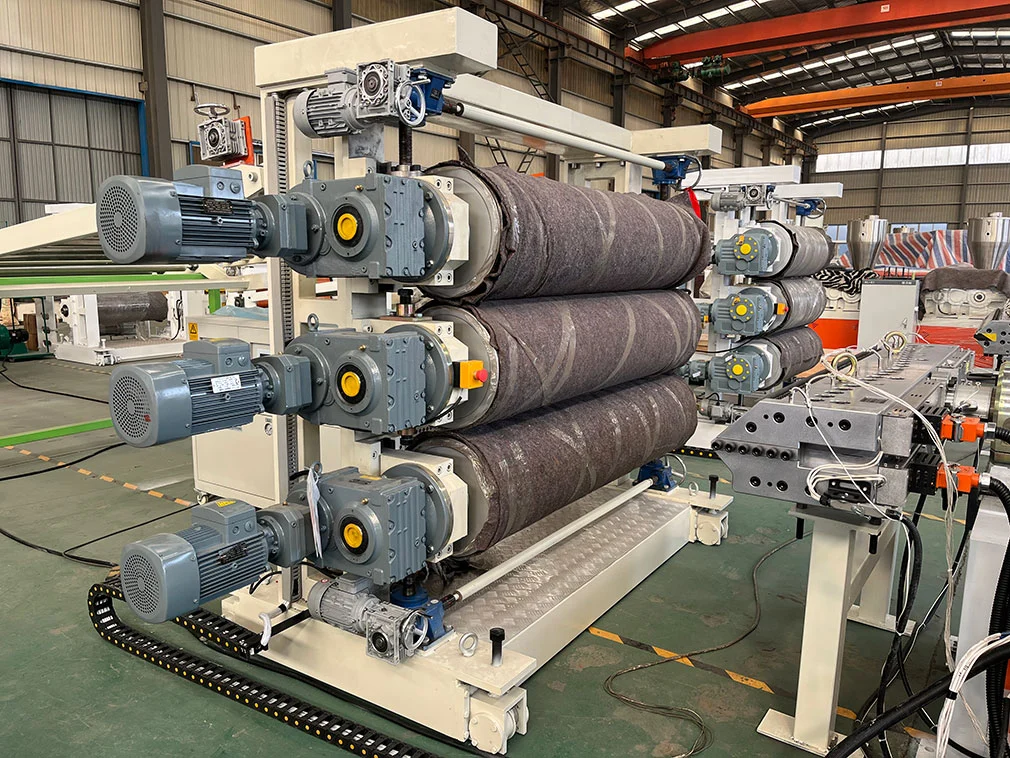

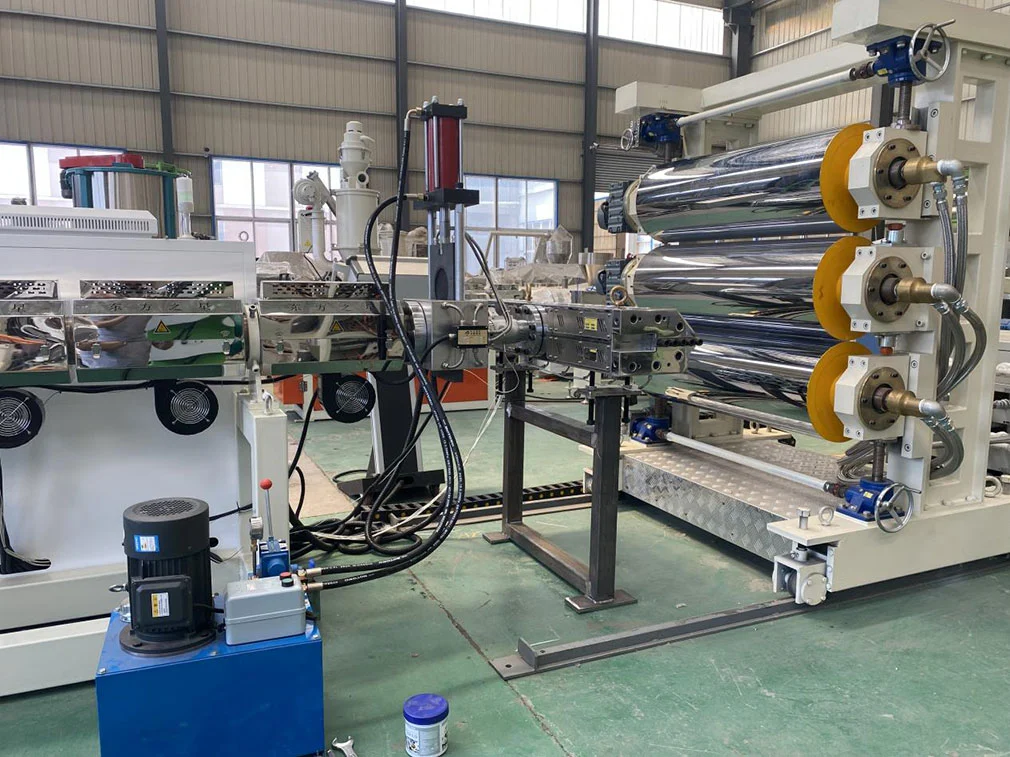

HDPE Geocell Sheet Extruder MachineThree calendar
| Roller diameter | 450mm |
| Effective width of roller | 1400mm |
| Roller material | 45 Steel |
| Roller structure | Qingdao roller making or Xuzhou Saite machinery special multi-flow channel design |
| axiality | ≤0.005mm |
| Roller finish | Ra ≤0.016um |
| Roller surface hardness | HRC58-62 |
| Chrome thickness | 0.08mm |
| Transmission deceleration box | Redson or Felocca brand |
| transmission power | 3×2.2KW |
| Speed control | Ying wei teng |
| Three-roller clearance adjustment mode | Cylinder adjustment, safety emergency stop switch, synchronous control system. |
| Three roll form | Slant 45° type |
| Three roll wall board | Integral steel plate welding processing |
| Three-roller centering roller bearing | Ha axis or tile house shop |
| revolving joint | Sino-foreign joint venture |

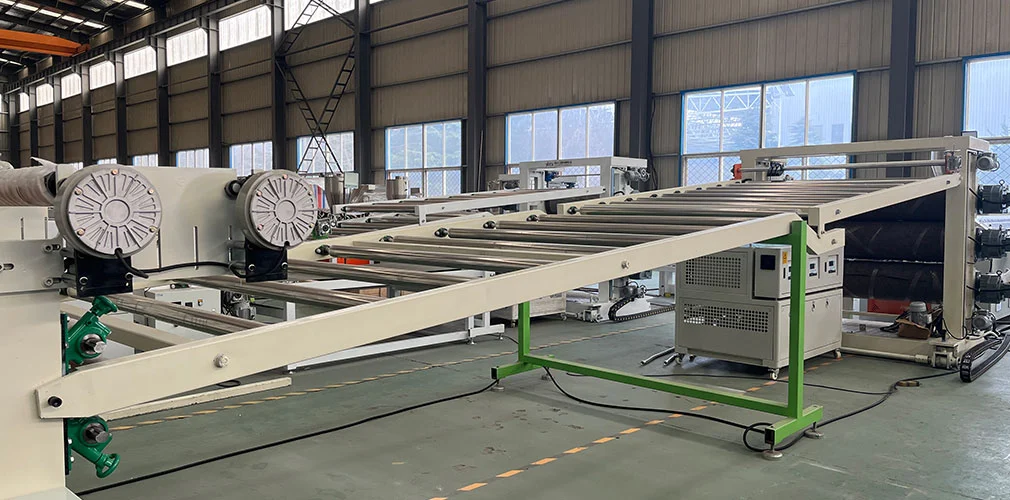

Cooling bracket
1) Number of empty feed rollers: 16 ：16
2) Diameter of empty feeding roller: ∮75mm ：∮75mm
3) Length of empty feed roller: 1200mm ：1200mm
4) Surface treatment of empty feeding roller: stainless steel ：
5) Length of air delivery device: 8 meters
with gold cutter: 7
| The length of the bracket | 6 Meters |
| Hollers (unpowered) | Quality stainless steel roller |
| specifications | Φ 75×1400mm |

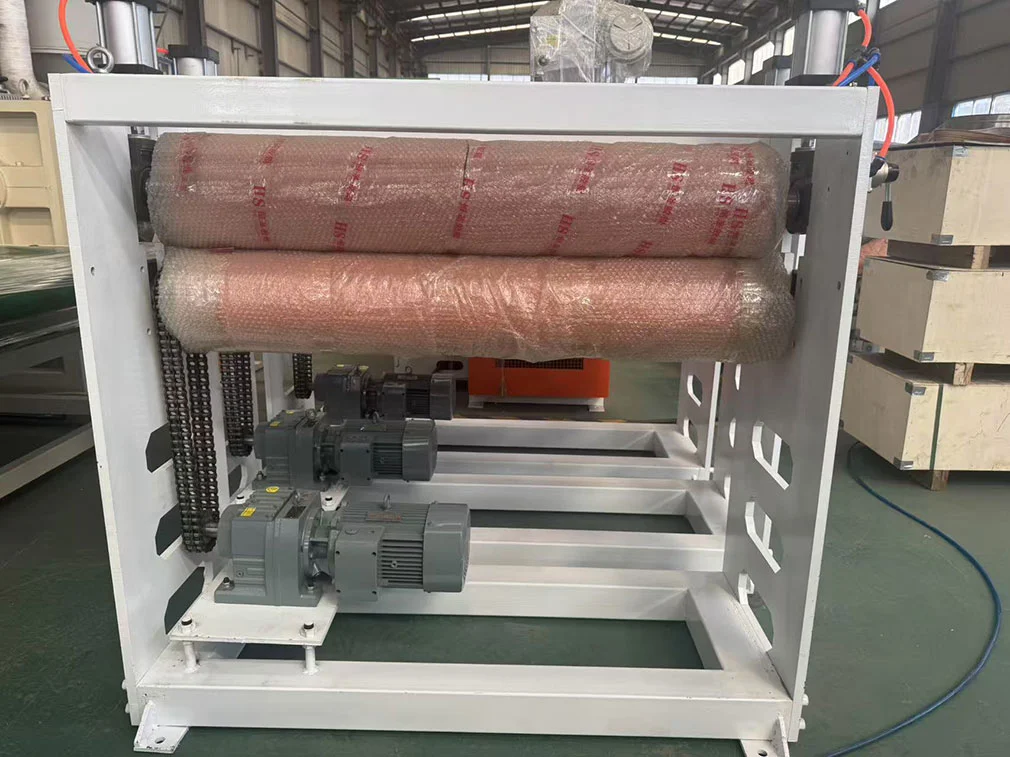

HDPE Geocell Sheet Extruder Machine Tractor

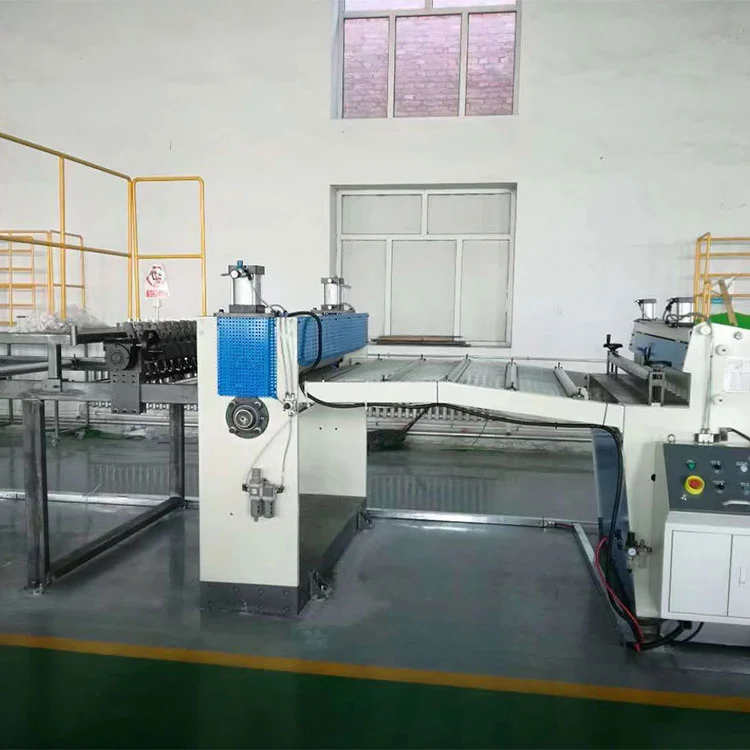

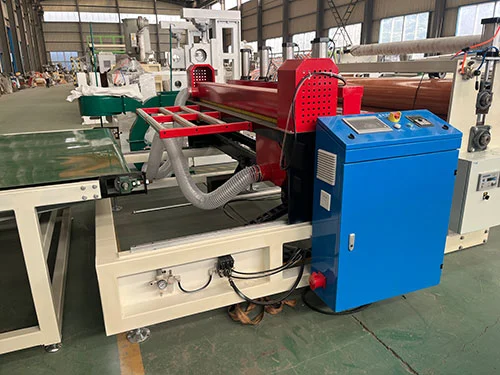

| specifications | Ф220×1400mm |
| material quality | Nitrile roller |
| transmission | reduction box |
| power | 2.2Kw |
| control | Wei Chuang frequency conversion control |
| Step up the way | pneumatic |
| Cutting machine 1set | |
|
Cutting form: mechanical shearing machine Meter counting method: rotary encoder Cutting motor: 2.2KW Clamping method: pneumatic Cutting width: 1000mm |
|
