The equipment runs stably and efficiently, supports personalized customization, and can adjust the configuration according to your actual needs. It is now in stock and delivered quickly to help you quickly start production!
Why can our POK/POM sheet Extruder machine stably produce ultra-thin thickness of 0. 25mm? The answer lies in the core components!
The optimized design of the mold flow channel allows the material to be evenly distributed; the temperature of the three-roll calender is adjustable to ensure that the surface of the sheet is smooth and flawless. The thickness can be switched from 0. 25 to 2mm at will, and the production is stable without material jamming. The core components of the equipment are made of wear-resistant materials and will not deform after long-term use. They are especially suitable for processing high-temperature materials such as PEEK and PVDF.
| order number | name | quantity |

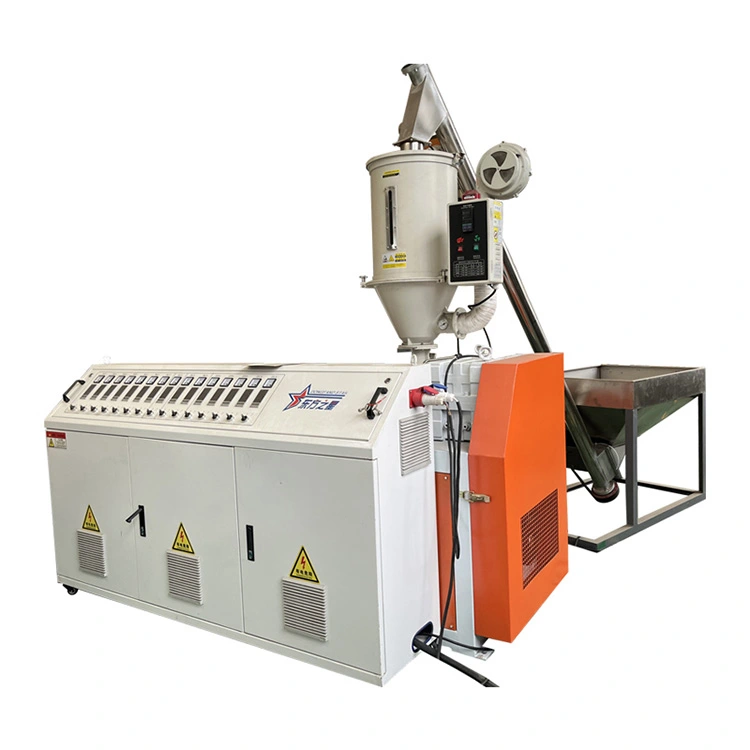

| 1. | Automatic feeding + drying system | 1 set |

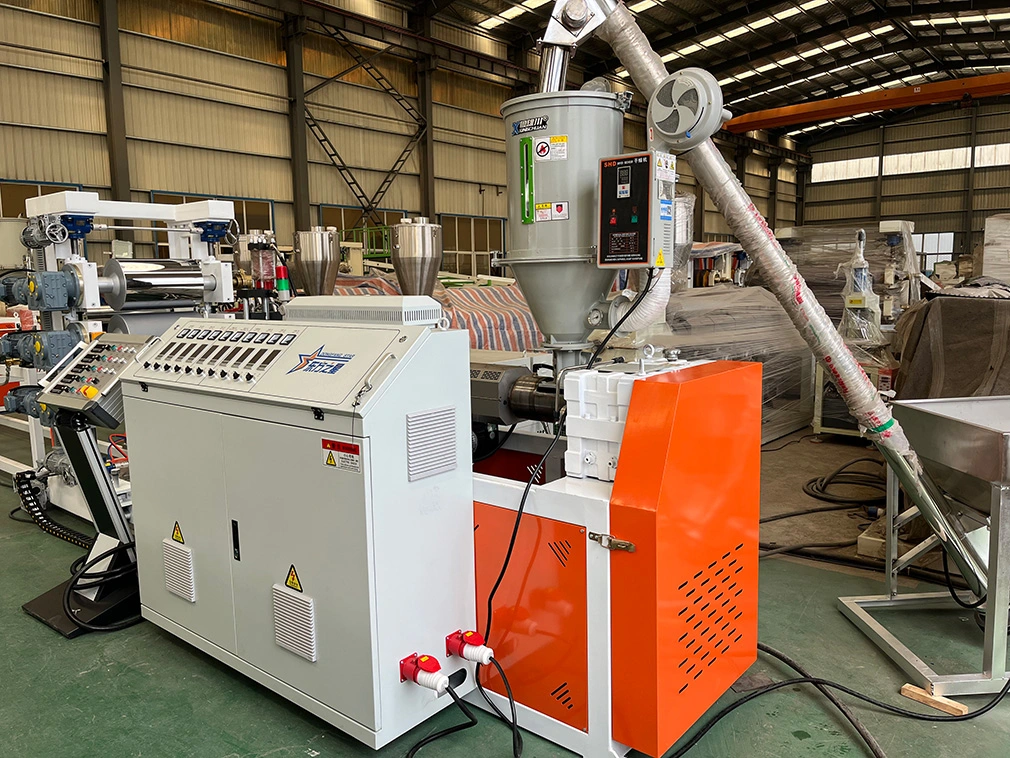

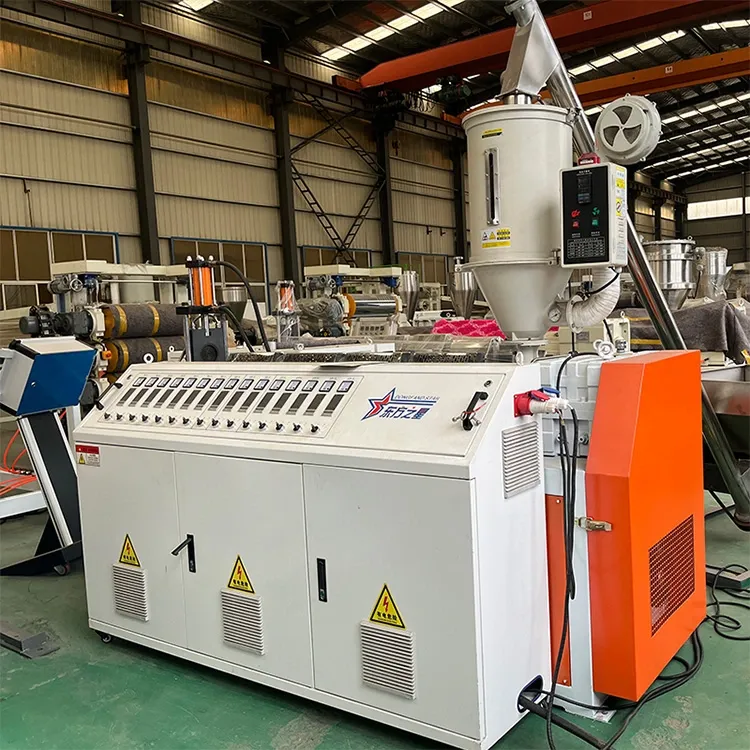

| 2． | SJ-65 single screw extruder | 1 set |
| 3． | L-450 mold and hydraulic mesh changer | 1 set |

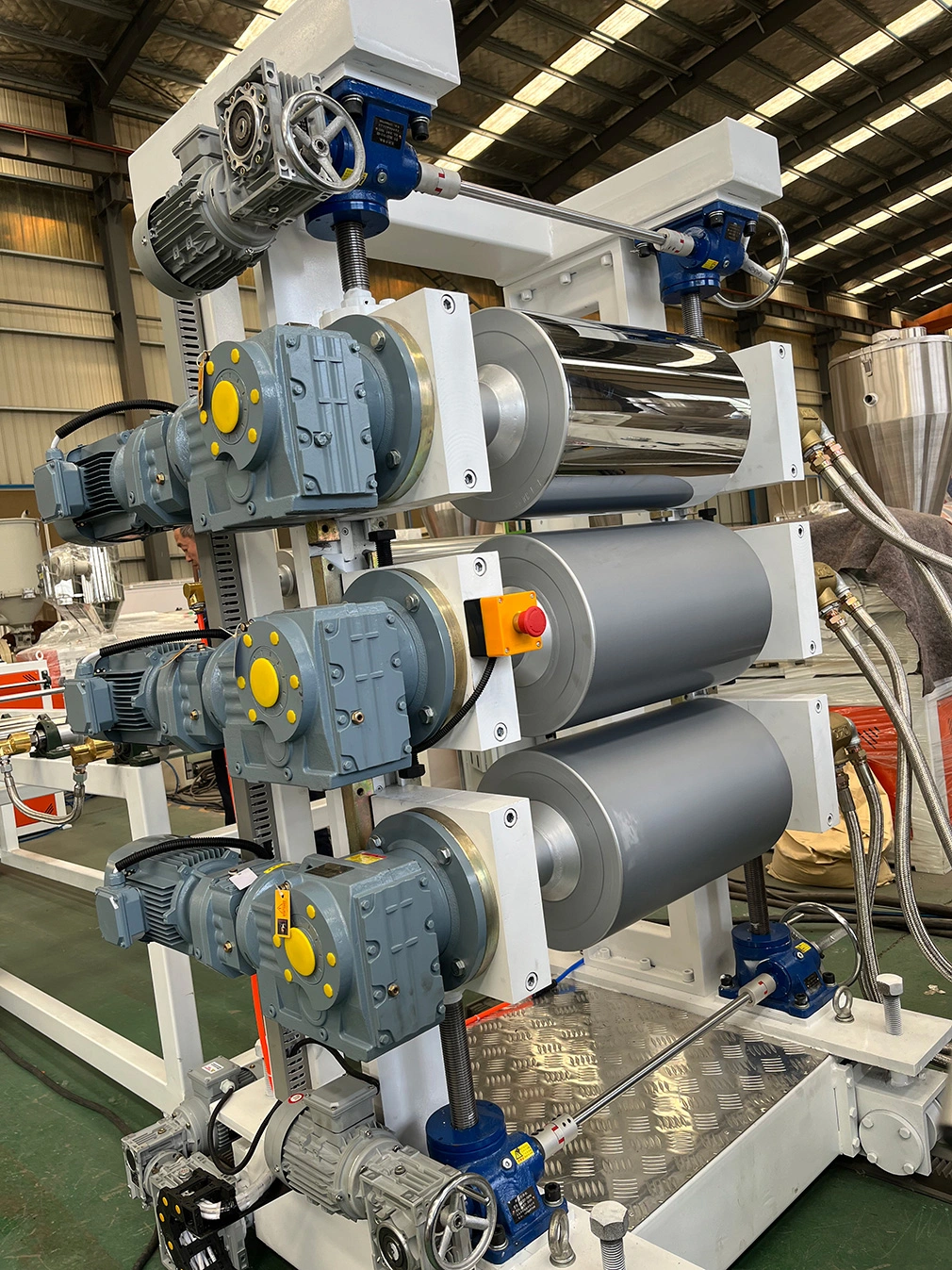

| 4． | L=600MM three roll calender | 1 set |
| 5． | Roll temperature control system | 1 set |
| 6． | Cooling tray, cutting edge | 1 set |

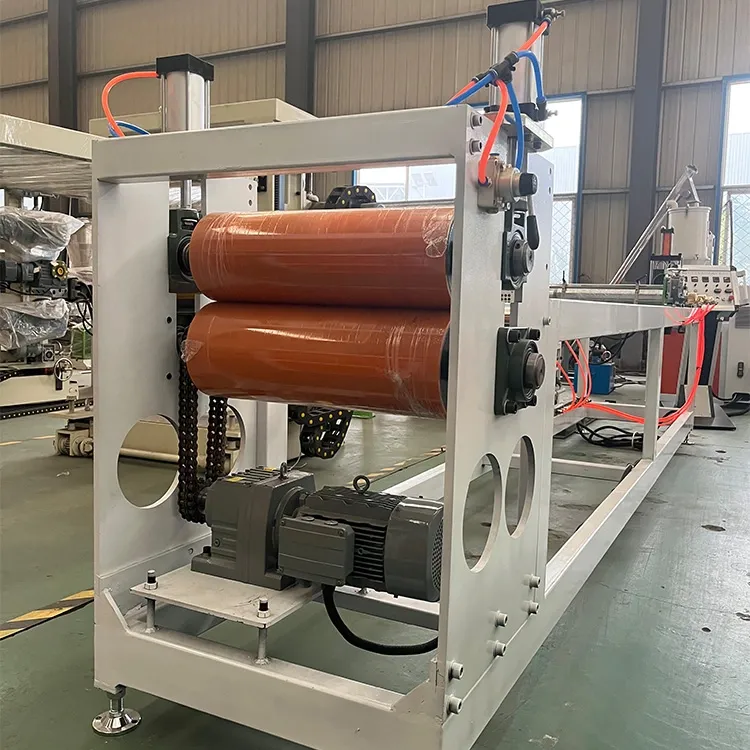

| 7． | hauling engine | 1 set |

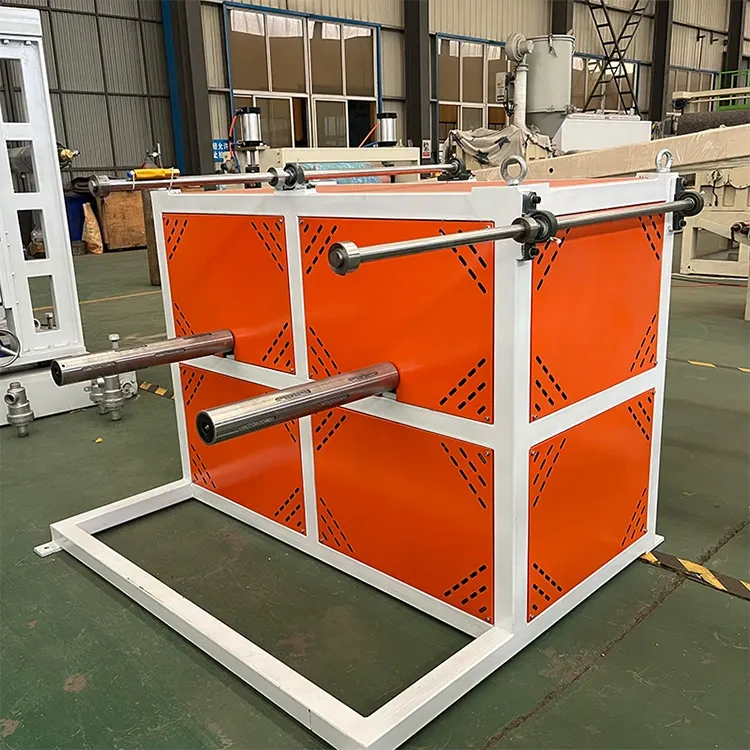

| 8． | Duplex winding machine | 1 set |
| 9． | Complete electrical control system | 1 set |

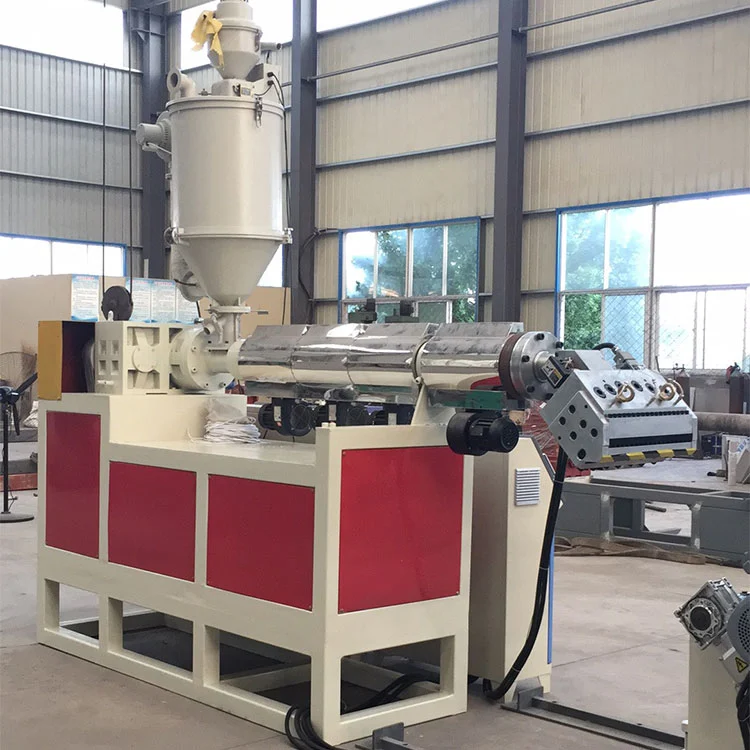

| Screw material | 38CrMoAL, nitrided steel |
| Screw hardness | HV950 |
| Cylinder material | Tubing wear-resistant material, nitrided steel |
| Die hardness | HV 1050 |
| Screw diameter | 65 mm |
| draw ratio | 30/1 |
| Main motor power | 30KW |
| The total heating power of the host is increased | 24KW |
| Tubular heating method | Aluminum or ceramic casting |
| Temperature control method | Automatic temperature control, fan automatic cooling |
| Form of a network changer | Duplex plate type |
| Specifications of the network changer | HW-100 |
| Volume of hydraulic oil | 20L |
| Power of the hydraulic station | 2.2KW |
| Mold structure | Made by Oriental Star, with a hanger-type flow channel and T-shaped mold |
| Mold material | High quality mold steel |
| The chrome plating treatment is applied to the flow channel in the mold, and the minimum thickness of the chrome plating layer is 0.03-0.05mm | |
| Polished to mirror (cavity Ra 0.1um, lip Ra 0.05um) | |
| die width | Product width: 300MM for 450mm |
| Thickness of the product | 0.5-2mm |

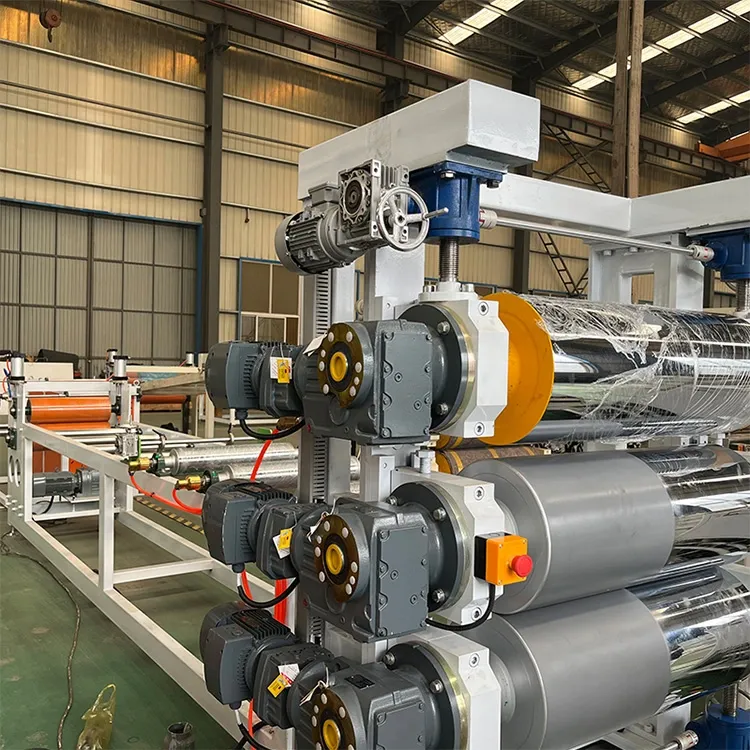

| Roll diameter | 320mm |
| Effective width of roller | 600mm |
| Roller material | alloy steel |
| Roller structure | Made by Oriental Star, with special multi-flow channel design |
| axiality | ≤0.005mm |
| Roll surface smoothness | Ra≤0.016um |
| Roll hardness | HRC58-62 |
| Chroming thickness | 0.08mm |
| Transmission reducer | Gear reduction motor |
| transmission power | 3×1.5KW |
| Speed control | Invt or Wecron frequency converter |
| Three roller gap adjustment method | Turbine worm gear electric adjustment, safety emergency stop switch, synchronous speed control. |
| Three roller form | The slope |
| Three roller wall panels | Overall steel plate welding processing |
| Three roller centering roller bearing | Haoyou or Wafangdian |
| revolving joint | Sino-foreign joint venture |
| cooling medium | heat conduction oil |
| Temperature control range | Room temperature to 180℃ |
| Temperature control accuracy | ±1℃ |
| water pump | 2.2KW hot oil pump *3 units |
| heater power | 6kw * 3 sets |
| Box material | stainless steel |
| Water valve | Pneumatic angle seat valve |
| The installation position is on the side of the cooling bracket, which is easy to move and maintain. | |

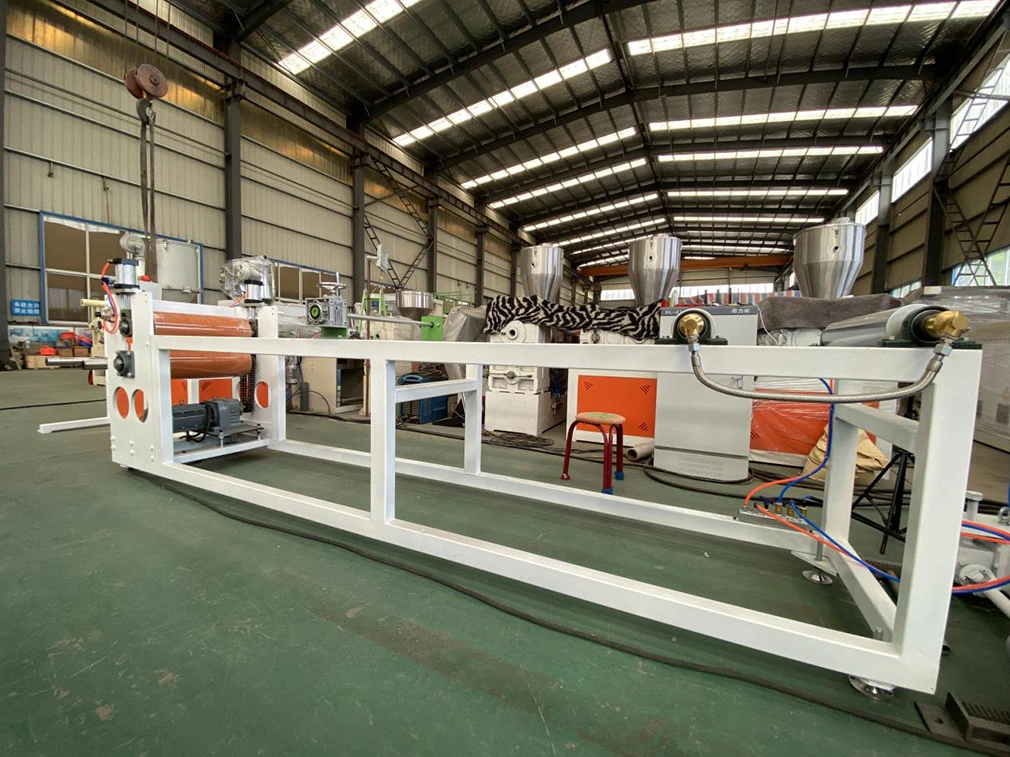

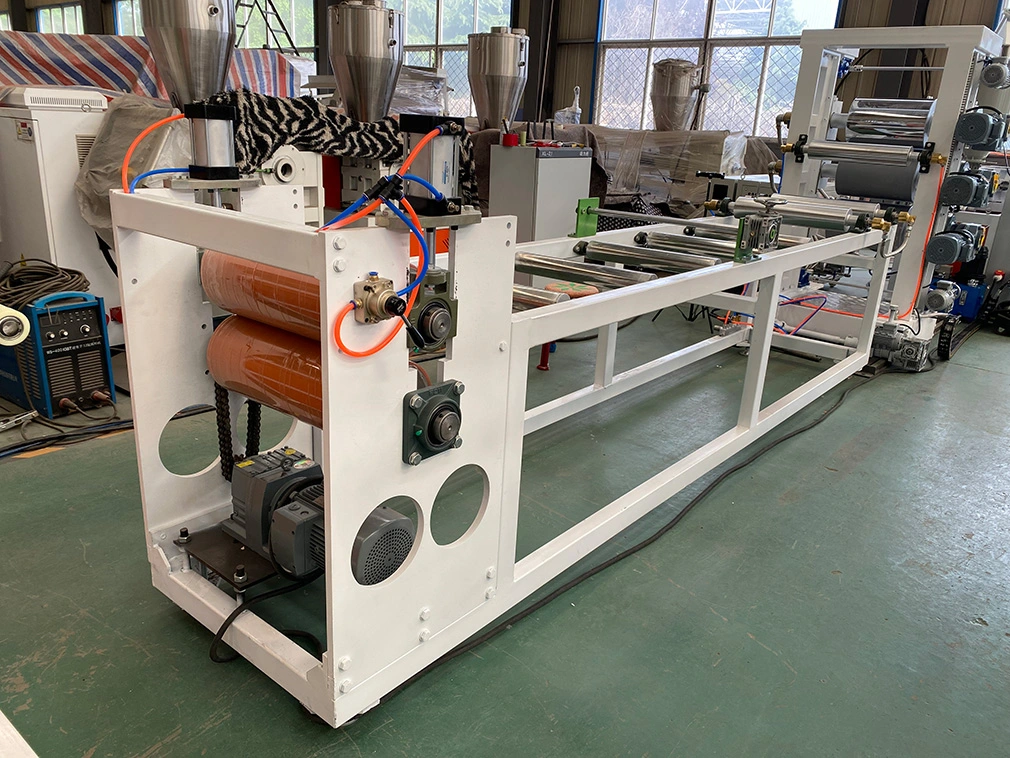

| Length of the bracket | 4 meters |

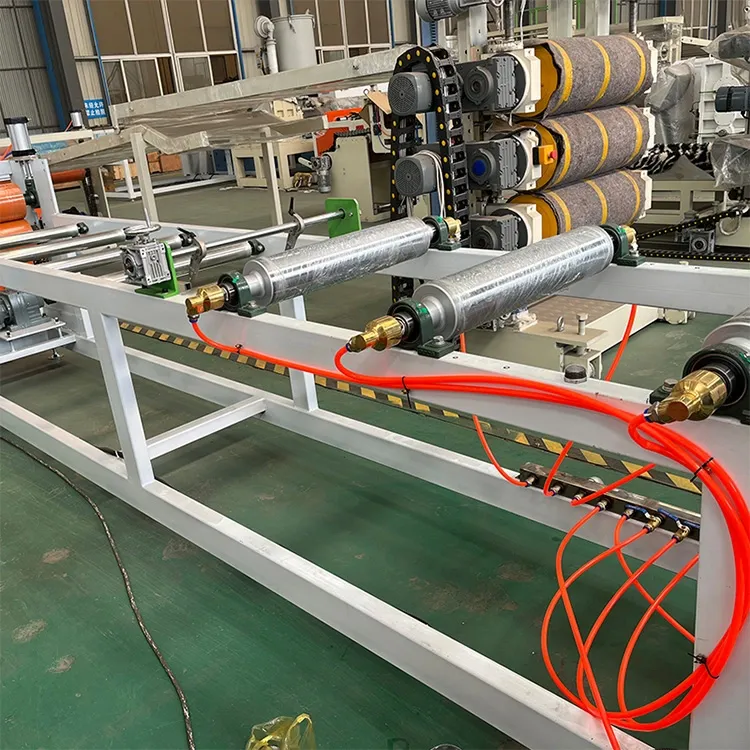

| Pre-cooling roll | Three smooth steel rods with built-in water circulation. |
| Trough (non-powered) | High quality stainless steel roller |
| Cooling roller specifications | Φ75×600mm |
| specifications | Ф200×600mm |
| material quality | PU rubber covered roller |
| transmission | reduction box |
| power | 1×1.5Kw |
| control | Invt frequency conversion control |
| Clamping method | pneumatic |
| mode of speed regulation | It can be synchronized with the three rollers or independent |

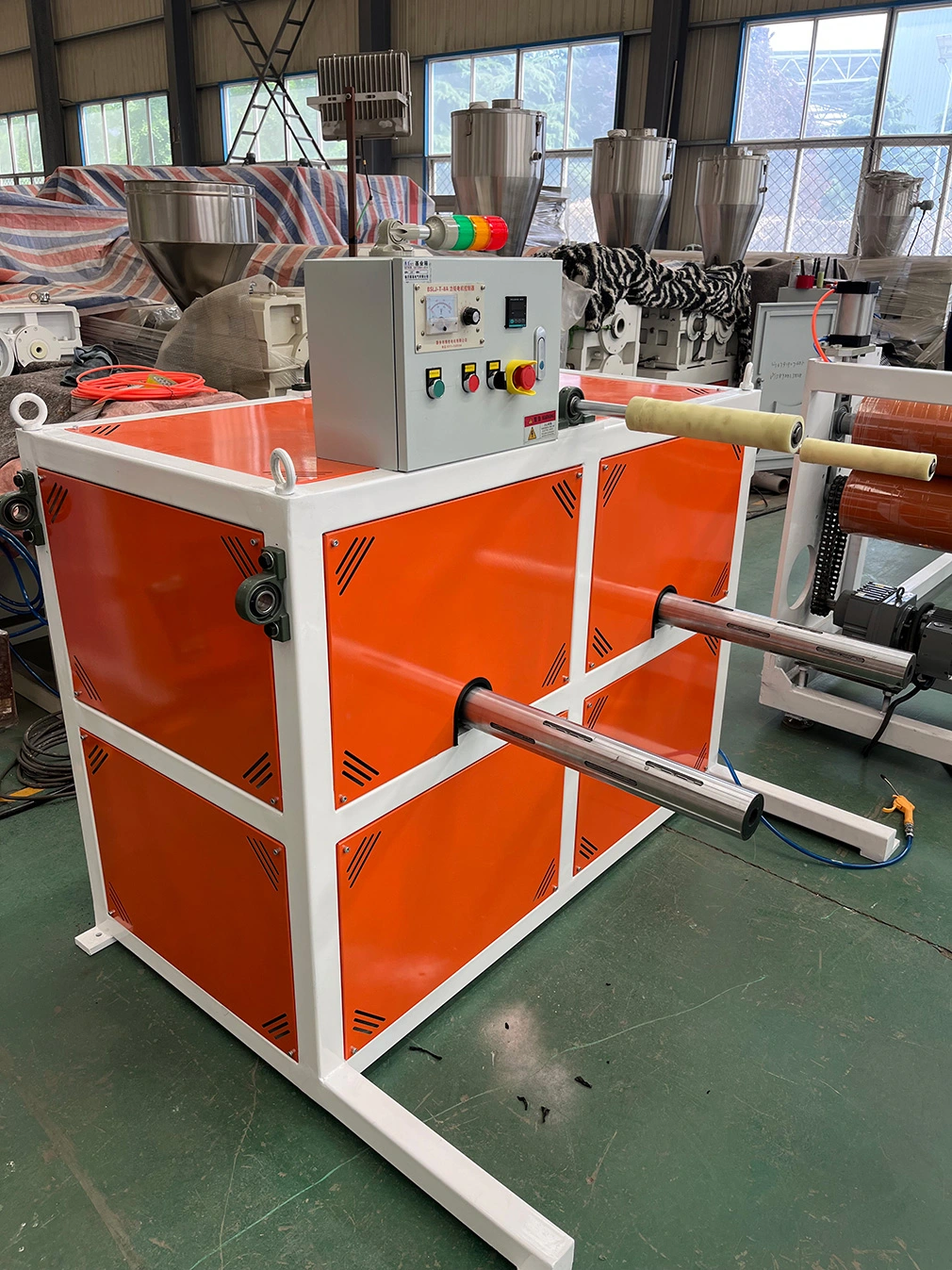

| Roll control | Constant tension |
| Rolling form | Dual station gas inflation shaft |
| control | Automatic length counting |
| Roll diameter | 100-500mm |
| Paper tube core specification | 3-inch coat |
