Pom sheet itself has the characteristics of corrosion resistance, high wear resistance and high strength, so it is widely used in parts manufacturing and electronic insulation materials. At the same time, Pom sheet is colorless and odorless, and is also widely used in the medical industry. In recent years, Pom has also been used in many food packaging.
| order number | name | quantity |
| 1. | Automatic feeding + drying system | 1 set |
| 2． | SJ-65 single screw extruder | 1 set |
| 3． | L-450 mold and hydraulic mesh changer | 1 set |
| 4． | L=600MM three roll calender | 1 set |
| 5． | Roll temperature control system | 1 set |
| 6． | Cooling tray, cutting edge | 1 set |
| 7． | hauling engine | 1 set |
| 8． | Duplex winding machine | 1 set |
| 9． | Complete electrical control system | 1 set |

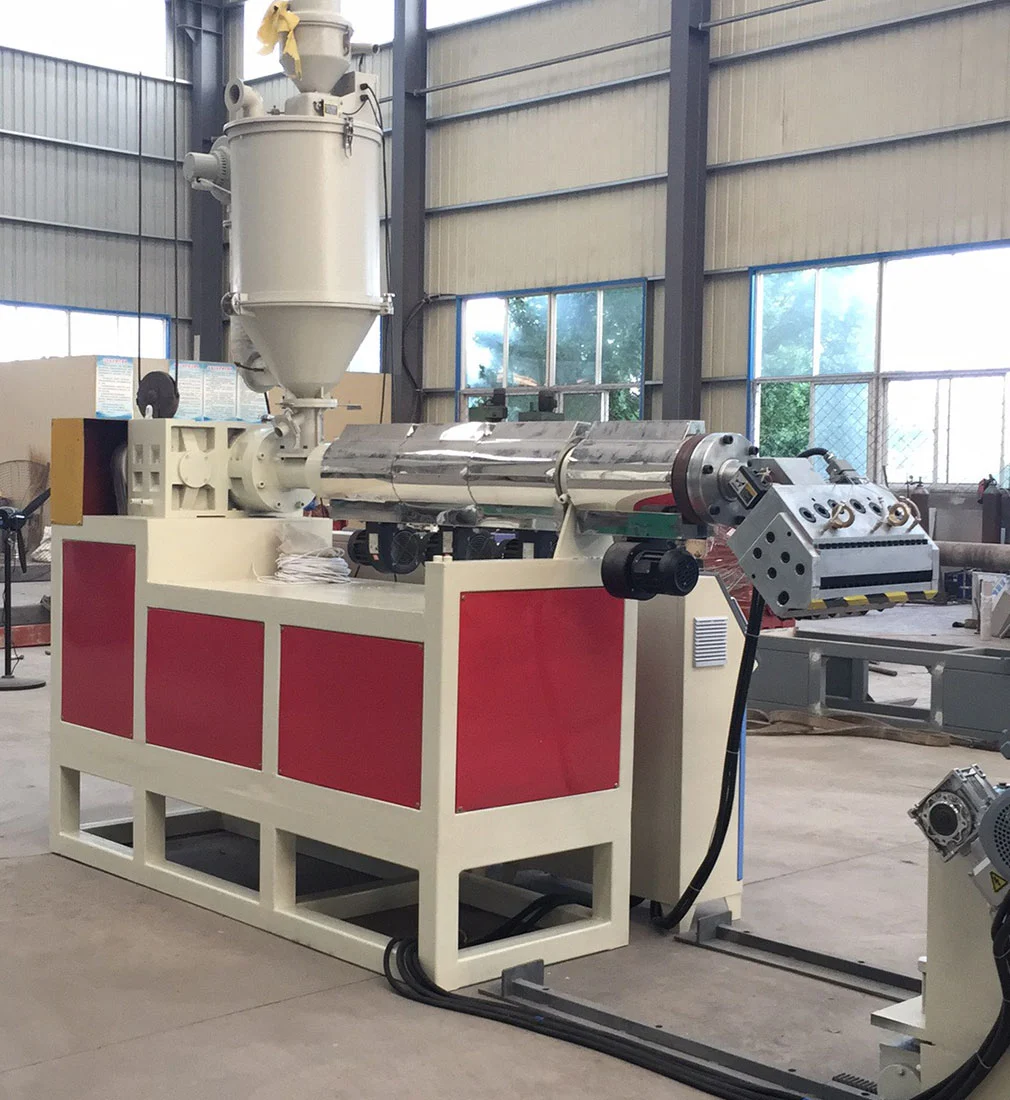

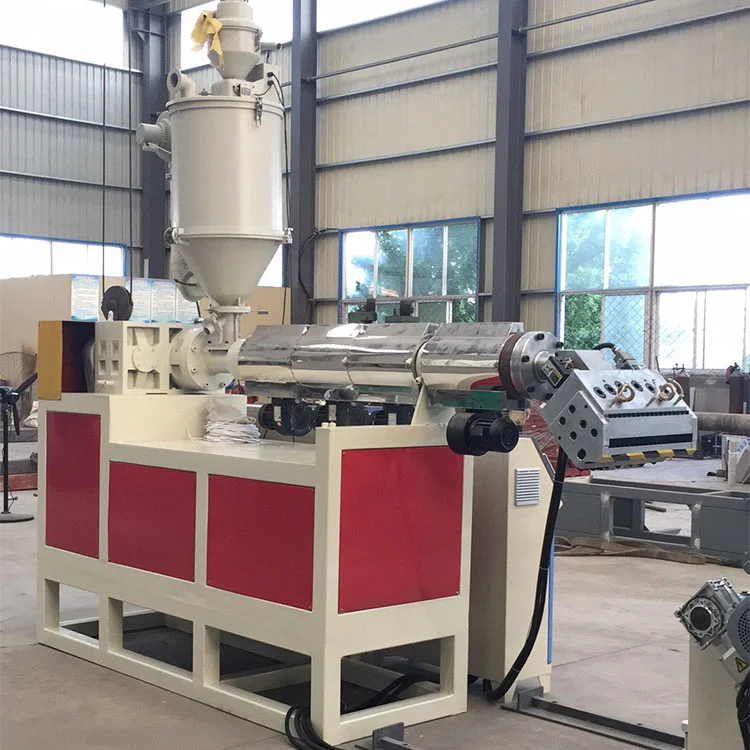

Pom Sheet Extruder Machine-SJ65 single screw extruder
Screw barrel and temperature control
| Screw material | 38CrMoAL, nitrided steel |
| Screw hardness | HV950 |
| Cylinder material | Tubing wear-resistant material, nitrided steel |
| Die hardness | HV 1050 |
| Screw diameter | 65 mm |
| draw ratio | 30/1 |
| Main motor power | 30KW |
| The total heating power of the host is increased | 24KW |
| Tubular heating method | Aluminum or ceramic casting |
| Temperature control method | Automatic temperature control, fan automatic cooling |
Pom Sheet Extruder Machine-Molds and mesh changers
| Form of a network changer | Duplex plate type |
| Specifications of the network changer | HW-100 |
| Volume of hydraulic oil | 20L |
| Power of the hydraulic station | 2.2KW |
| Mold structure | Made by Oriental Star, with a hanger-type flow channel and T-shaped mold |
| Mold material | High quality mold steel |
| The chrome plating treatment is applied to the flow channel in the mold, and the minimum thickness of the chrome plating layer is 0.03-0.05mm | |
| Polished to mirror (cavity Ra 0.1um, lip Ra 0.05um) | |
| die width | Product width: 300MM for 450mm |
| Thickness of the product | 0.5-2mm |

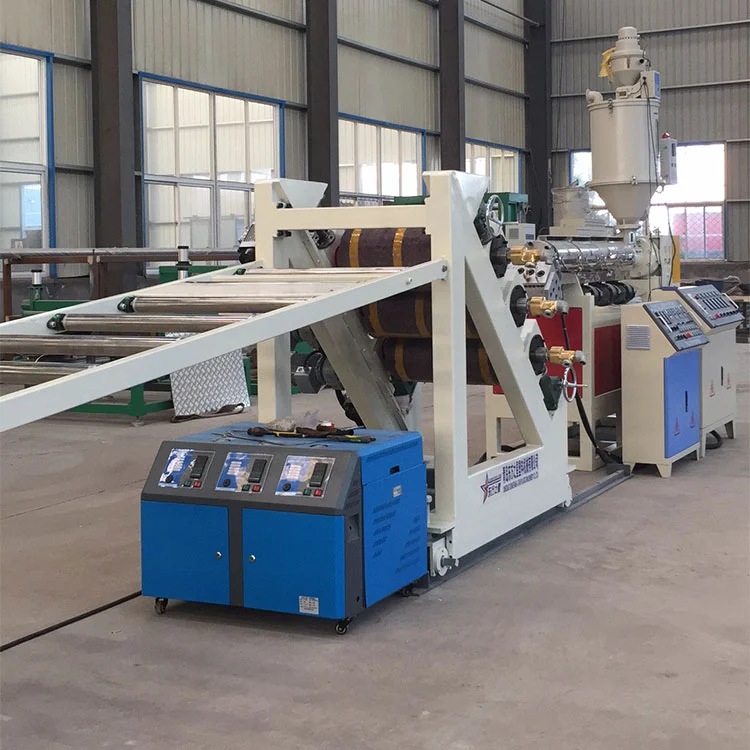

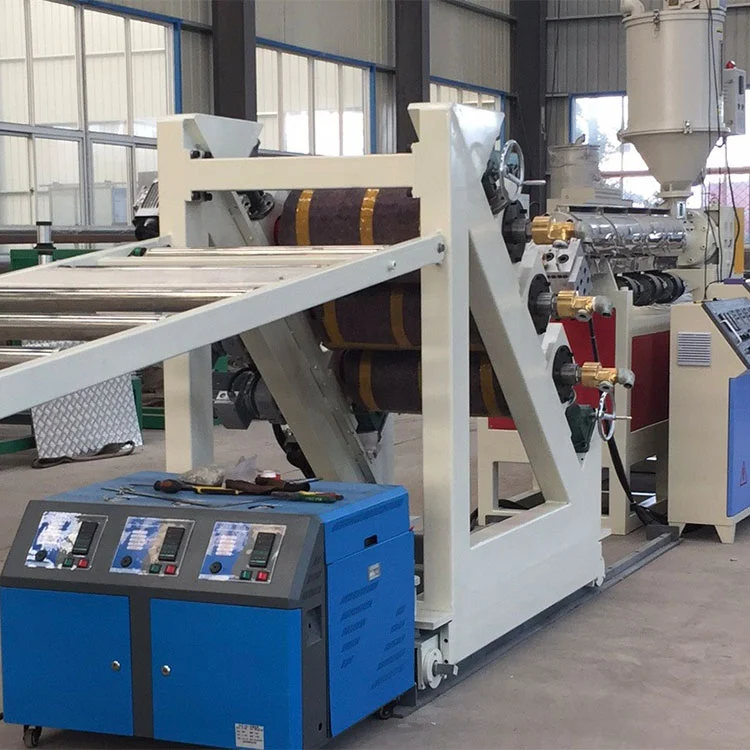

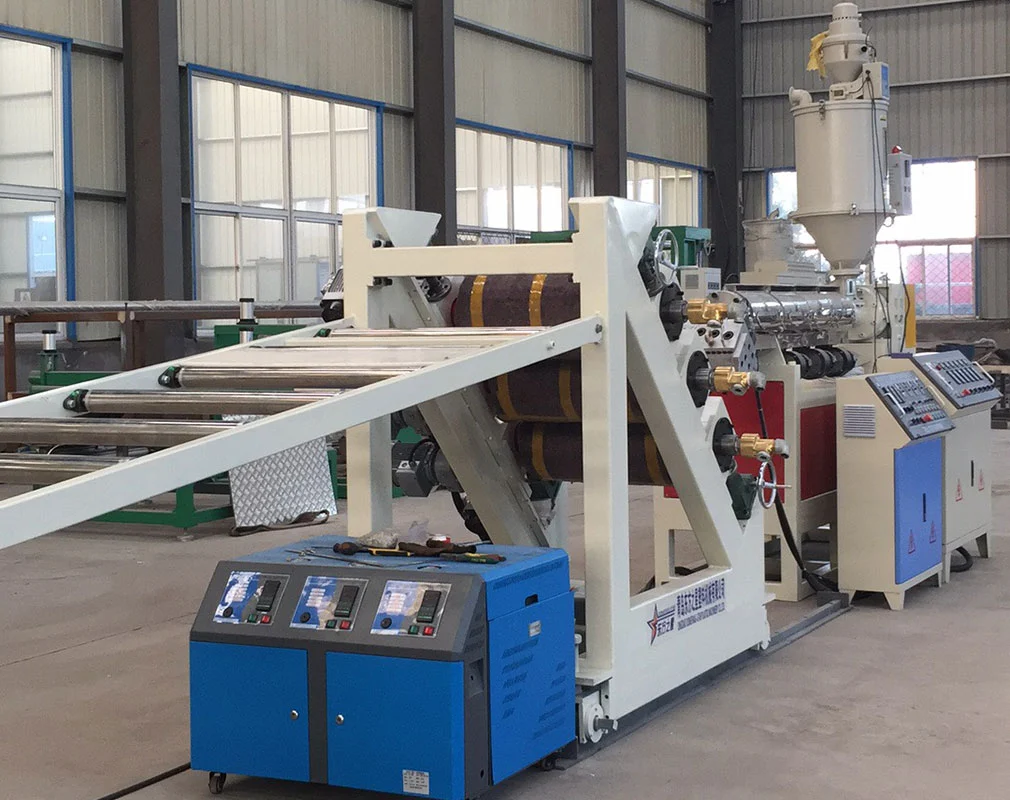

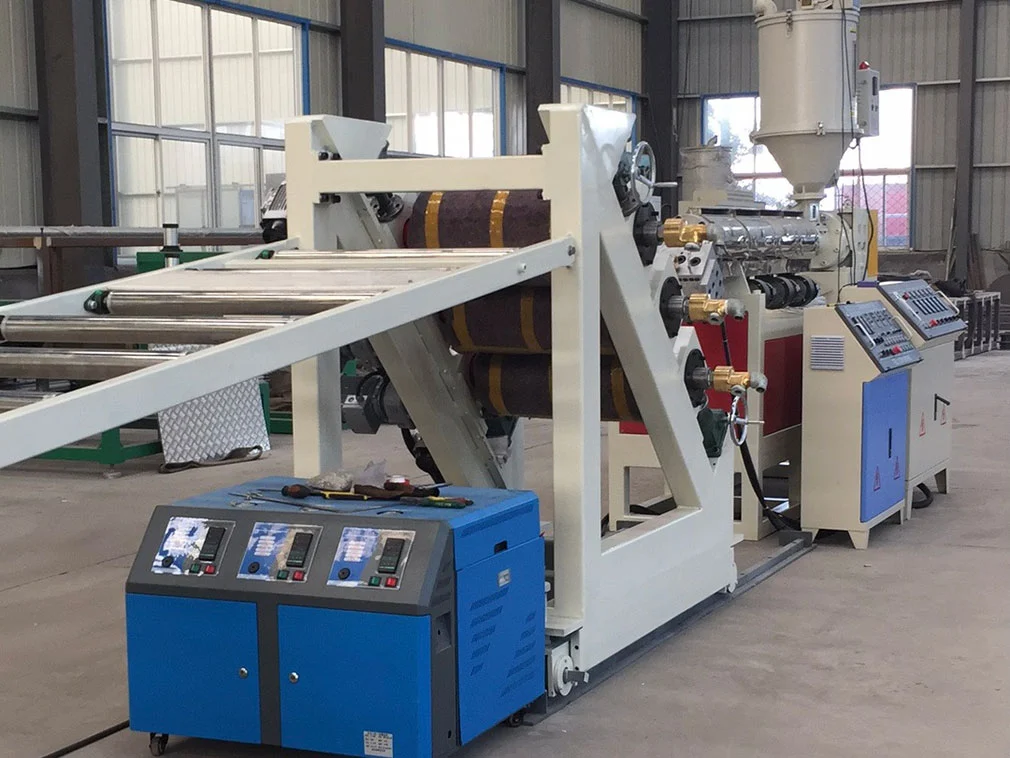

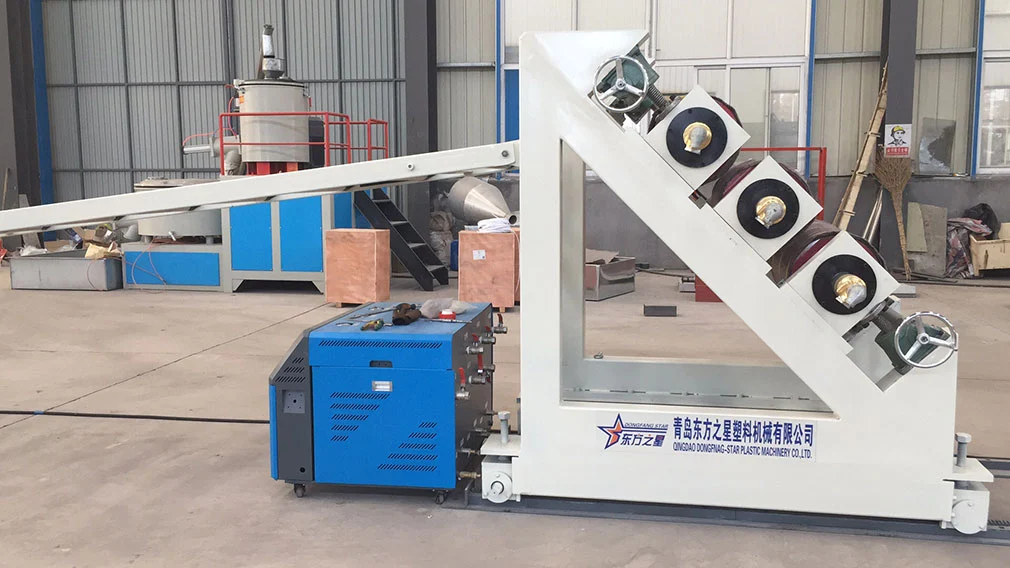

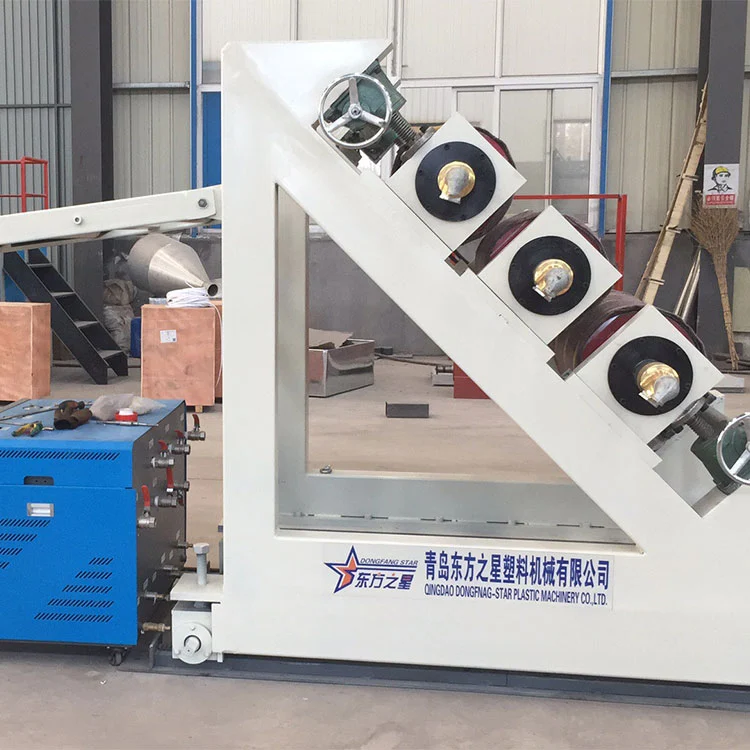

Pom Sheet Extruder Machine- Pressing machine
| Roll diameter | 320mm |
| Effective width of roller | 600mm |
| Roller material | alloy steel |
| Roller structure | Made by Oriental Star, with special multi-flow channel design |
| axiality | ≤0.005mm |
| Roll surface smoothness | Ra≤0.016um |
| Roll hardness | HRC58-62 |
| Chroming thickness | 0.08mm |
| Transmission reducer | Gear reduction motor |
| transmission power | 3×1.5KW |
| Speed control | Invt or Wecron frequency converter |
| Three roller gap adjustment method | Turbine worm gear electric adjustment, safety emergency stop switch, synchronous speed control. |
| Three roller form | The slope |
| Three roller wall panels | Overall steel plate welding processing |
| Three roller centering roller bearing | Haoyou or Wafangdian |
| revolving joint | Sino-foreign joint venture |
Pom Sheet Extruder Machine- Roll temperature control system
| cooling medium | heat conduction oil |
| Temperature control range | Room temperature to 180℃ |
| Temperature control accuracy | ±1℃ |
| water pump | 2.2KW hot oil pump *3 units |
| heater power | 6kw * 3 sets |
| Box material | stainless steel |
| Water valve | Pneumatic angle seat valve |
| The installation position is on the side of the cooling bracket, which is easy to move and maintain. | |
Pom Sheet Extruder Machine- Cooling bracket
| Length of the bracket | 4 meters |
| Pre-cooling roll | Three smooth steel rods with built-in water circulation. |
| Trough (non-powered) | High quality stainless steel roller |
| Cooling roller specifications | Φ75×600mm |

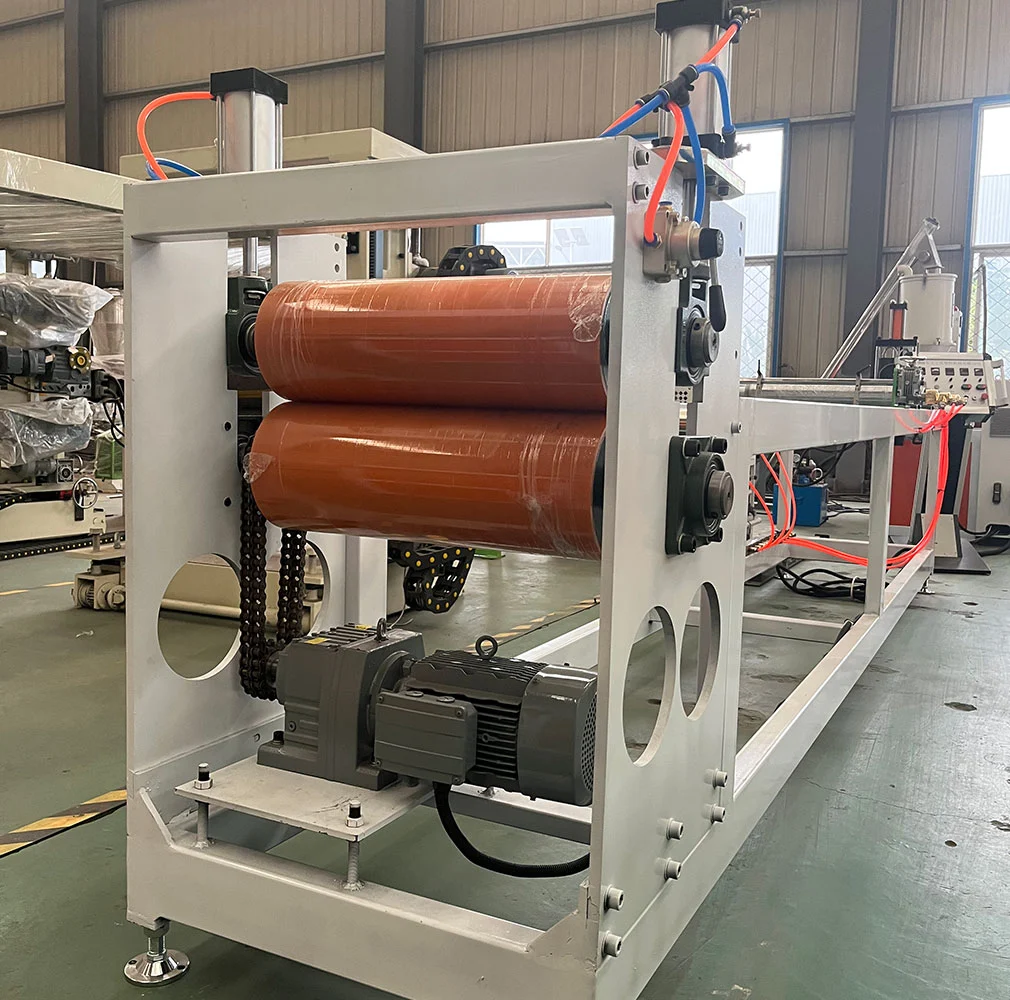

Pom Sheet Extruder Machine- Traction machine
| specifications | Ф200×600mm |
| material quality | PU rubber covered roller |
| transmission | reduction box |
| power | 1×1.5Kw |
| control | Invt frequency conversion control |
| Clamping method | pneumatic |
| mode of speed regulation | It can be synchronized with the three rollers or independent |

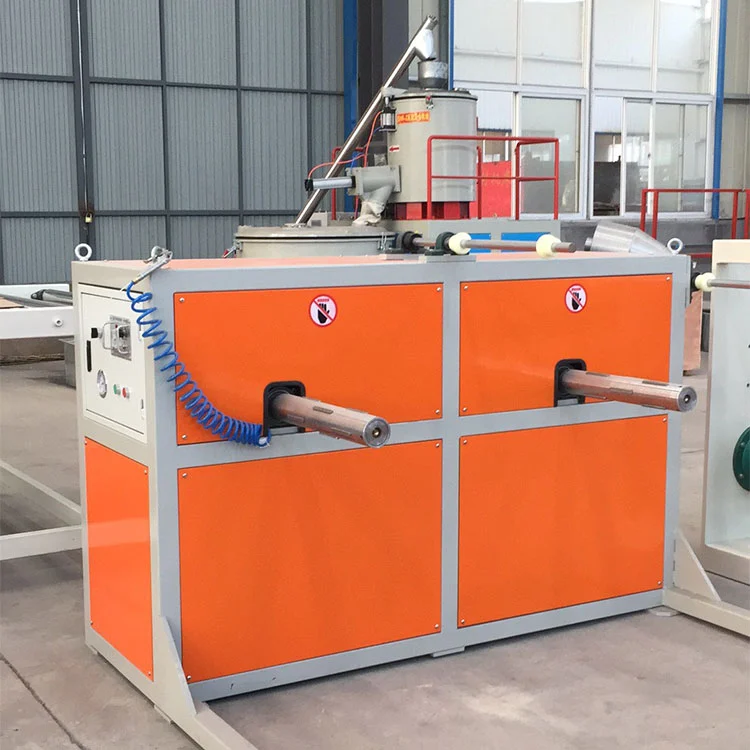

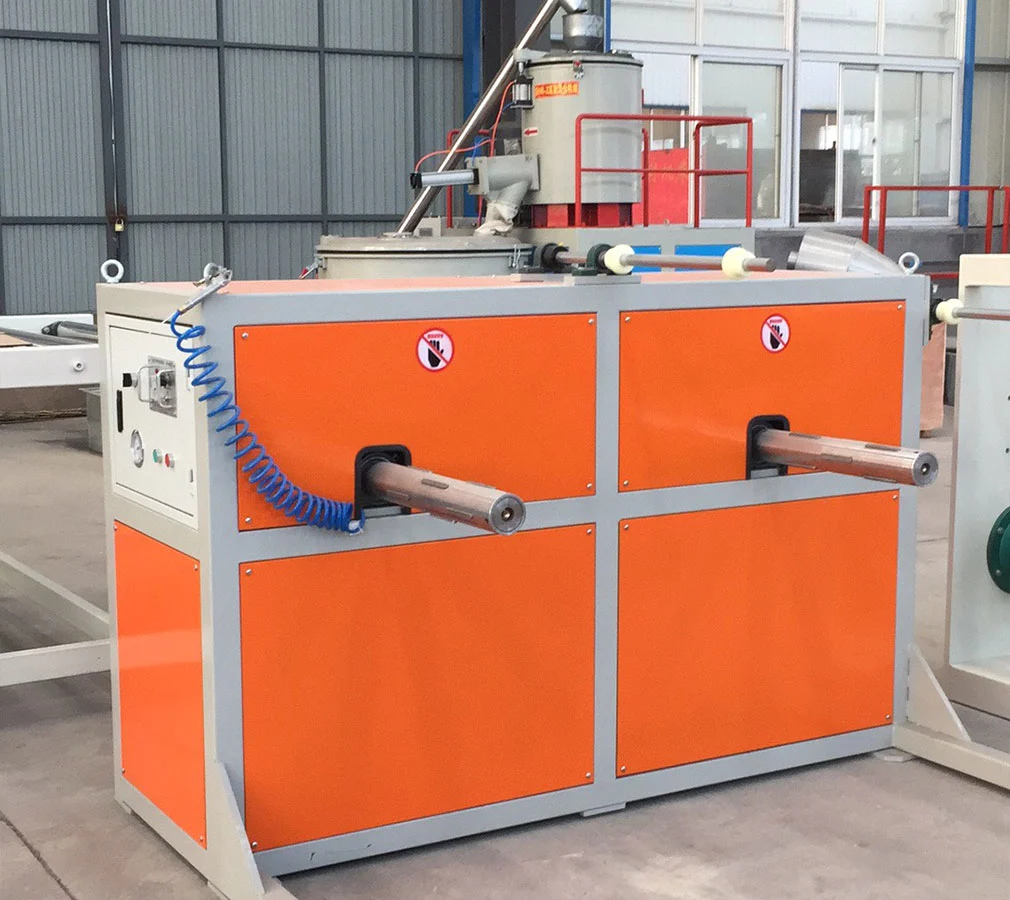

Pom Sheet Extruder Machine- winding machine
| Roll control | Constant tension |
| Rolling form | Dual station gas inflation shaft |
| control | Automatic length counting |
| Roll diameter | 100-500mm |
| Paper tube core specification | 3-inch coat |
