The essence of PP manure belts is that they leverage the corrosion resistance, low friction, and easy customization of PP material to address the pain points of traditional manual manure cleaning: low efficiency, high pollution, and high cost. From mainstream breeds like laying hens and pigs to specialty breeds like quail and fur animals, they improve farming hygiene, reduce labor costs, and mitigate disease risks—a key reason for their irreplaceable status in modern intensive farming.
How can we solve the problem of easy breakage and short lifespan of manure cleaning belts?
Excellent equipment + professional formula
Qingdao East Star Plastic Machinery Co., Ltd. is a manufacturer specializing in the production of manure cleaning belt equipment, Qingdao East Star Plastic Machinery Co., Ltd. manure cleaning belt equipment features a mold temperature controller that independently controls the temperature of each roller, ensuring stable roller temperature and preventing PP degradation! The 2600mm mold flow channel is uniform, with an error of ≤0.1mm, preventing uneven thickness. The mirror-finished roller has a roughness of ≤0.02μm, and a smooth stainless steel cooling rack reduces friction loss!
Free formula adjustments are available to ensure your manure cleaning belt is both tough and wear-resistant!

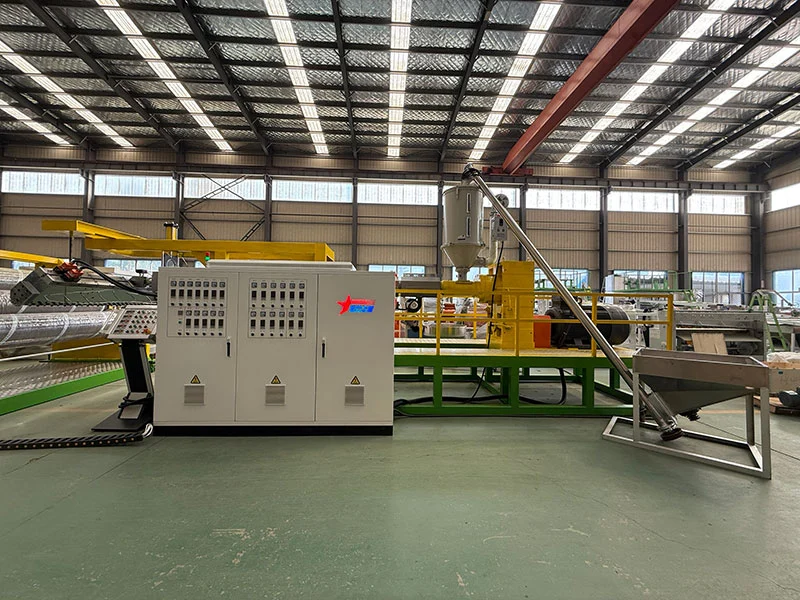

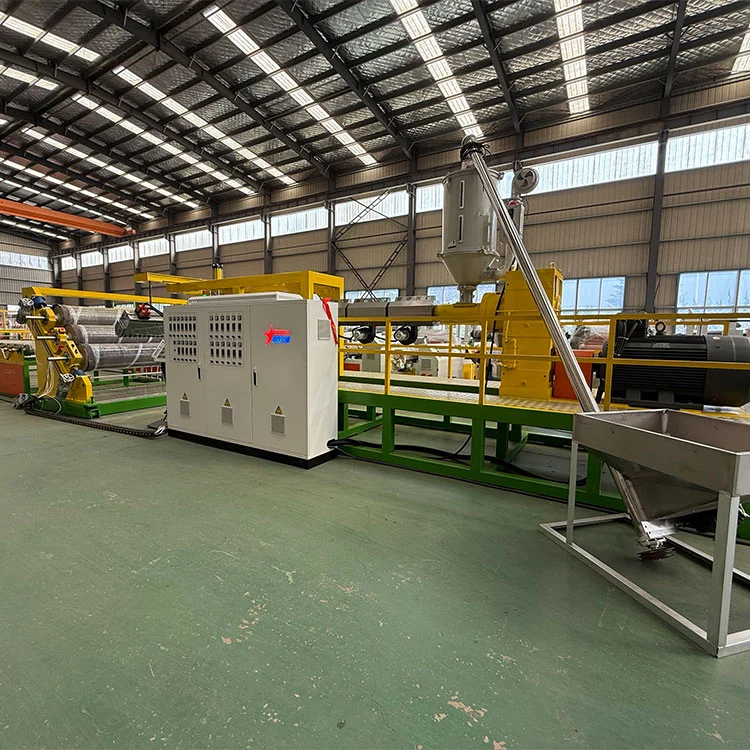

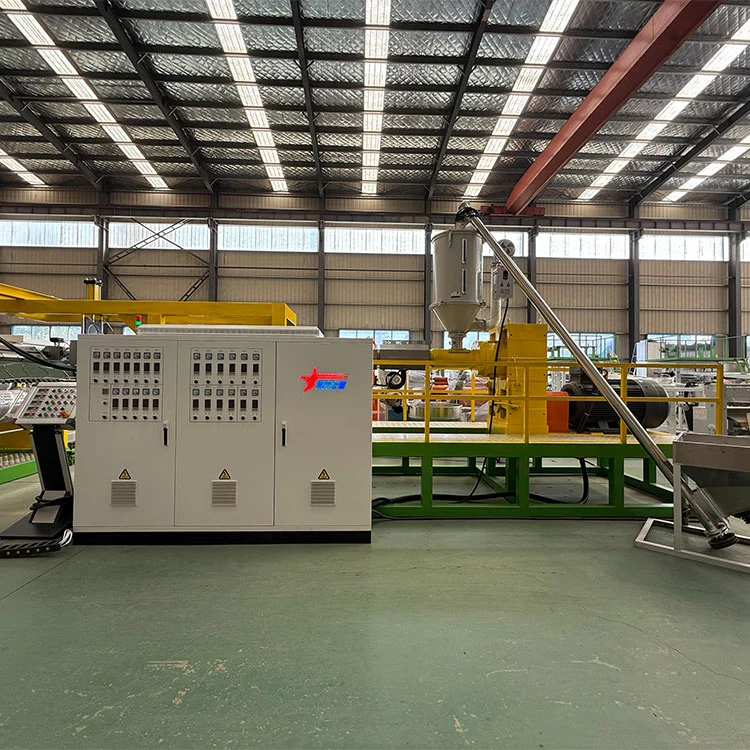

| 1． | SJ-130 / 33 single screw extruder | 1set |

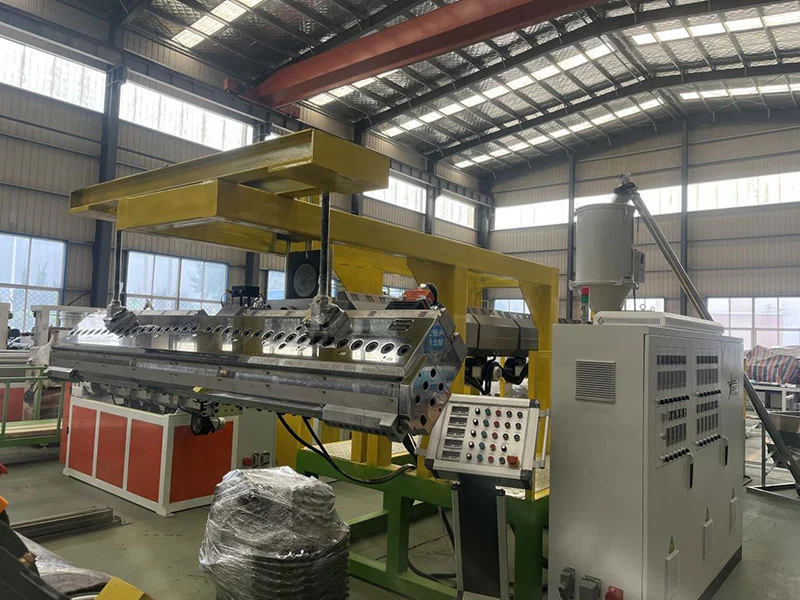

| 2． | T -die | 1 set |

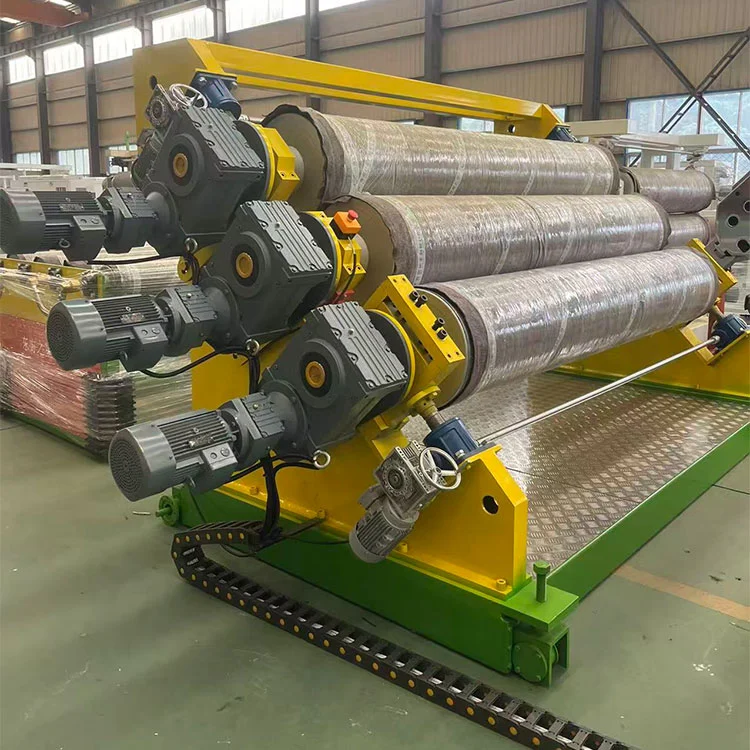

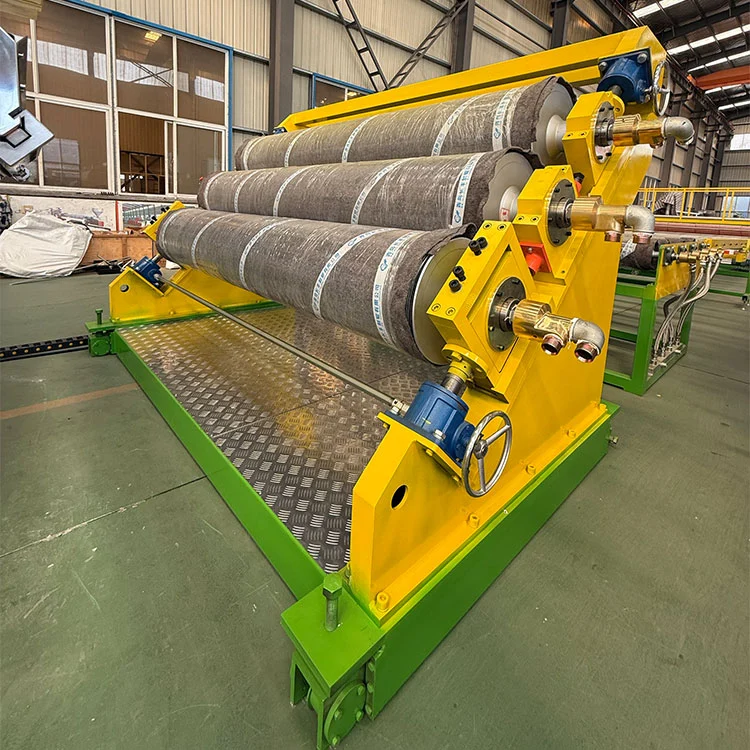

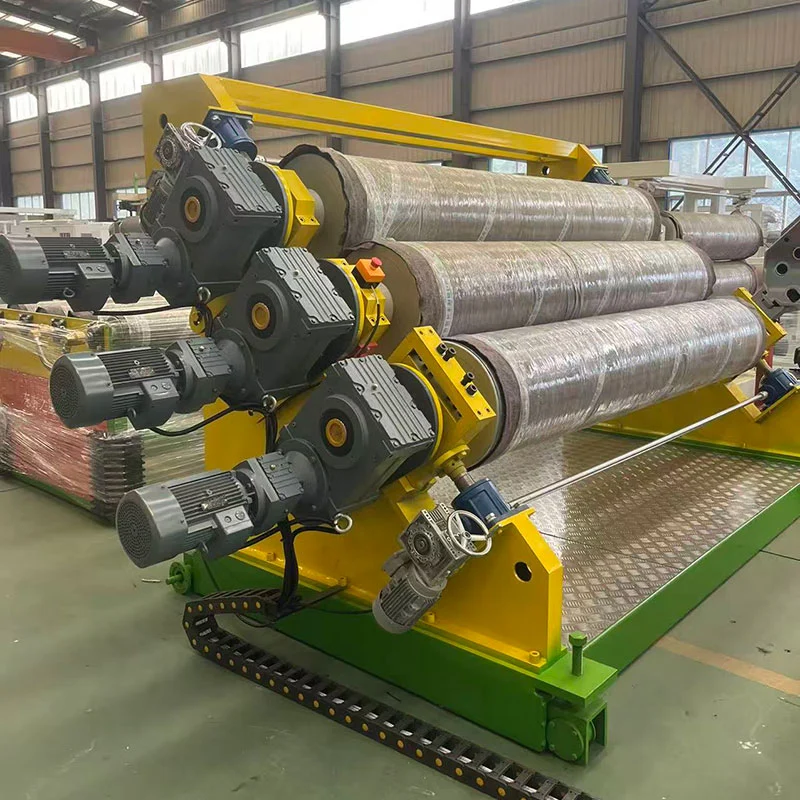

| 3． | three-rolle calender | 1set |
| 4． | Roller temperature control system | 1set |
| 5． | Cooling bracket | 1 set |
| 6． | Traction machine | 1set |

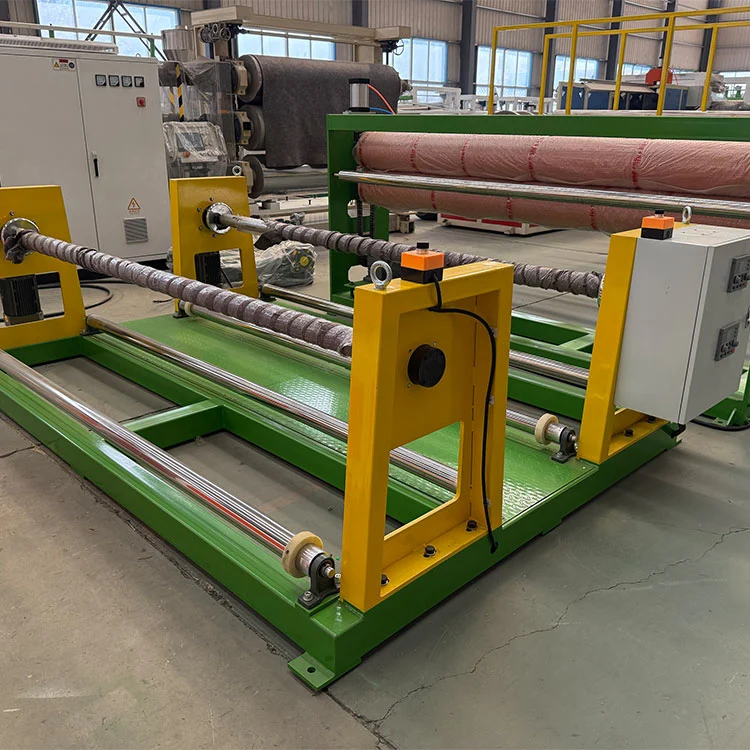

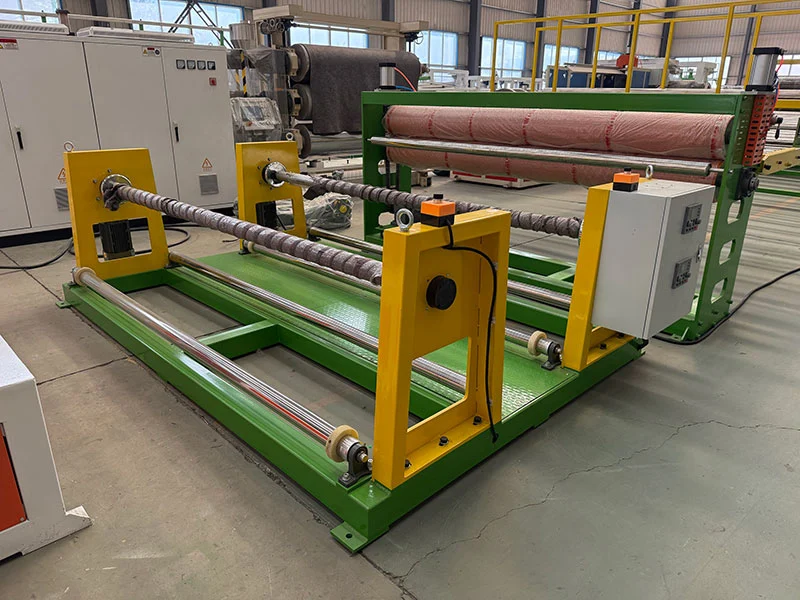

| 7． | winding machine | 1set |
| 8． | Complete electrical control system | 1set |
| Screw material | 38CrMoAL, nitride steel |
| Screw hardness | HV950 |
| Machine cylinder material | Drum wear-resistant material, nitride steel |
| Machine cylinder hardness | HV 1050 |
| Screw diameter | 130mm |
| draw ratio | 33/1 |
| Power of main motor | 160KW |
| Bottle heating method | Casting aluminum or ceramics |
| Temperature control mode | Automatic temperature control, fan forced cooling |
| structure | Frack flow channel, T mold |
| material quality | High quality mold steel |
| The flow channel inside the mold is chrome-plated, and the minimum thickness of the chrome-plated layer is 0.03-0.05mm | |
| Polished to mirror (Ra 0.1 um, Ra 0.05 um) | |
| die width | 1250mm |
| Product thickness | 0.3-2.5mm |
| Roller diameter | 450mm |
| Effective width of roller | 1400mm |
| Roller material | 45 Steel |
| Roller structure | Qingdao roller making or Xuzhou Saite machinery special multi-flow channel design |
| axiality | ≤0.005mm |
| Roller finish | Ra ≤0.016um |
| Roller surface hardness | HRC58-62 |
| Chrome thickness | 0.08mm |
| Transmission deceleration box | Redson or Felocca brand |
| transmission power | 3×2.2KW |
| Speed control | Ying wei teng |
| Three-roller clearance adjustment mode | Cylinder adjustment, safety emergency stop switch, synchronous control system. |
| Three roll form | Slant 45° type |
| Three roll wall board | Integral steel plate welding processing |
| Three-roller centering roller bearing | Ha axis or tile house shop |
| revolving joint | Sino-foreign joint venture |
| The length of the bracket | 6 Meters |
| Hollers (unpowered) | Quality stainless steel roller |
| specifications | Φ 75×1400mm |
| specifications | Ф220×1400mm |
| material quality | Nitrile roller |
| transmission | reduction box |
| power | 2.2Kw |
| control | Wei Chuang frequency conversion control |

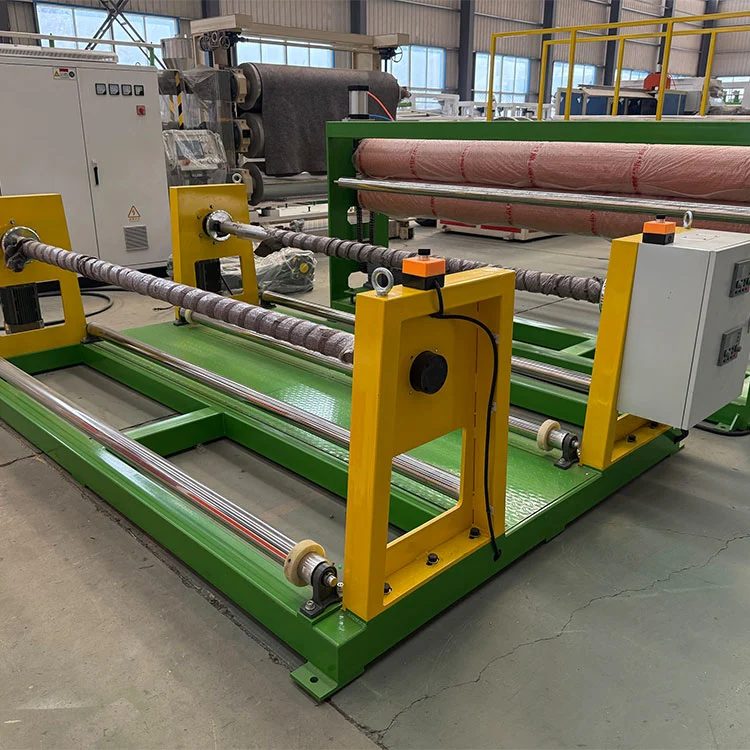

| Step up the way | pneumatic |
| Type Dual-station | flip type |
| Rewinding diameter | 500mm |
| Specifications | Paper tube core 3 inches |
