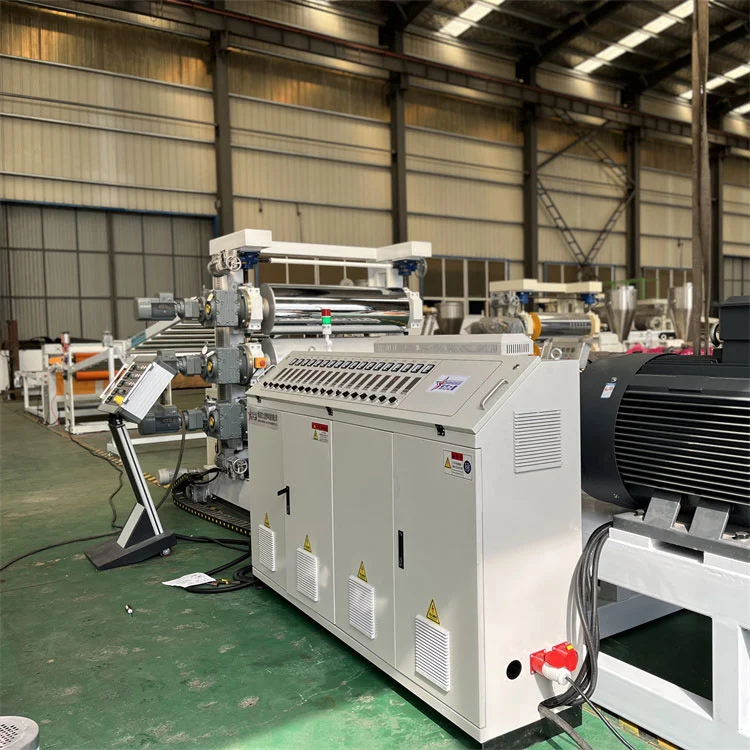

PVC livestock board is also called PVC tortoise board PVC anti-static board: The equipment mainly consists of 120 single screw extruder, three-roll calender, cooling bracket, rubber roller traction machine, shearing machine, conveyor belt device, PVC tortoise board equipment product standard width 1000mm, thickness 6mm, mainly used for pig house construction, various animal breeding, construction projects, swimming pool construction and other public construction, patterns we can produce according to customer requirements, different patterns replace different rollers.
| order number | name | quantity |
| 1 | Stainless steel screw feeder | 1 set |
| 2 | SJ 20-33/1 single screw extruder | 1 set |
| 3 | MJ-1150 light panel mold | 1 set |
| 4 | BF-1200X∮400 three-roll calender | 1 set |
| 5 | BF-1200-6 meter cooling bracket | 1 set |
| 6 | BF-1200*∮220 rubber roller traction machine | 1 set |
| 7 | BF-1200 friction winding machine | 1 set |
| 8 | Three-in-one water roller constant temperature machine | 1 set |
| 9 | DK-18 district extrusion production line electrical control cabinet | 1 set |
| 1 0 | Technical data on random equipment | 1 copy |
PVC livestock board equipment- SJ 120×3 0/1 single screw extruder
| Screw diameter: | 120mm (Zhoushan, Zhejiang) |
| Screw length to diameter ratio: | 30∶1 |
| Screw structure: | new high plasticizing screw, suitable for powder and granular materials. |
| Cylindrical screw material: | 38C rMoAIA nitriding treatment |
| Nitride layer depth: | 0.4-0.7 mm |
| Screw hardness: | HV>740 |
| Cylinder hardness: | HV>940 |
| Screw speed: | 15-70 rpm |
| Motor power: |
1 10 kw (Shandong brand motor) Heating section 6 x 6 kw (aluminum casting + stainless steel hood) Cylindrical cooling 6 zones x 180w |
| Extrusion output: | 300-400kg/h |
Reduction gear Reddish face reducer Y-3 15 reducer (produced in Changzhou, Jiangsu province)
Installation form belt drive or shaft joint direct connection
Gear material 20CrMnTi carburized and quenched
The cooling method is to cool the teeth through water in the condenser
Drier E-200KG type
Main electrical control system:
Contactor Schneider or Siemens or ABB contactor
Temperature control meter Omron intelligent temperature control meter
Frequency converter Inverter or Weichuang frequency converter

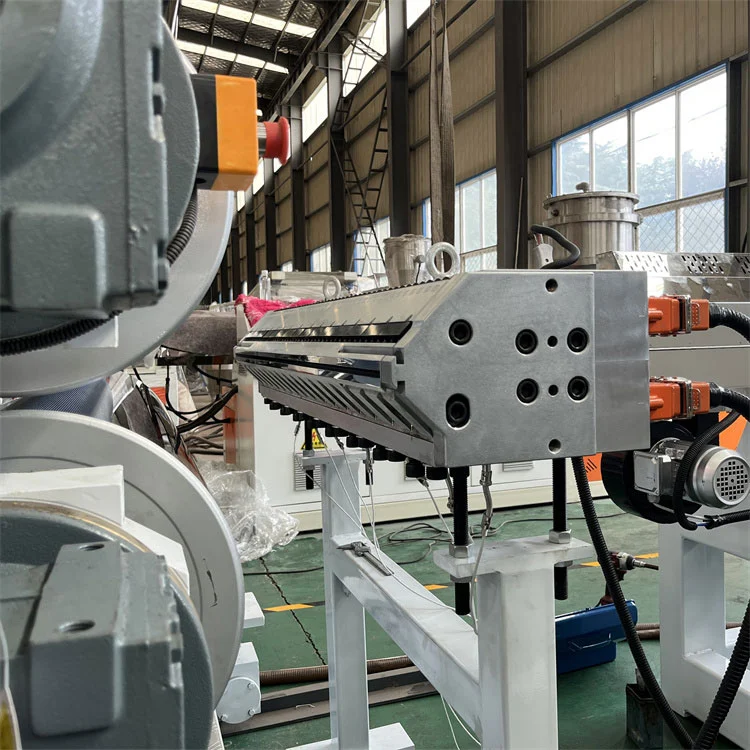

PVC livestock board equipment-BF-1150 Clothes hanger plate mold: one set
Mold material: high quality mold steel forging and tempering, hard chrome plating, polishing treatment The plate head with a clothes hanger is 1-6 mm thick and 1 0 00 mm wide Effective width of the mold is 1 15 0mm per set The heating power is 1 5kw and the internal heating method is adopted Temperature control zone section 5 The head flow channel is in the form of clothes hanger type gradual flow channel, and the head is made of high quality alloy steel 5CrNIMo, polished after chrome plating; the upper die lip push micro-adjustment.

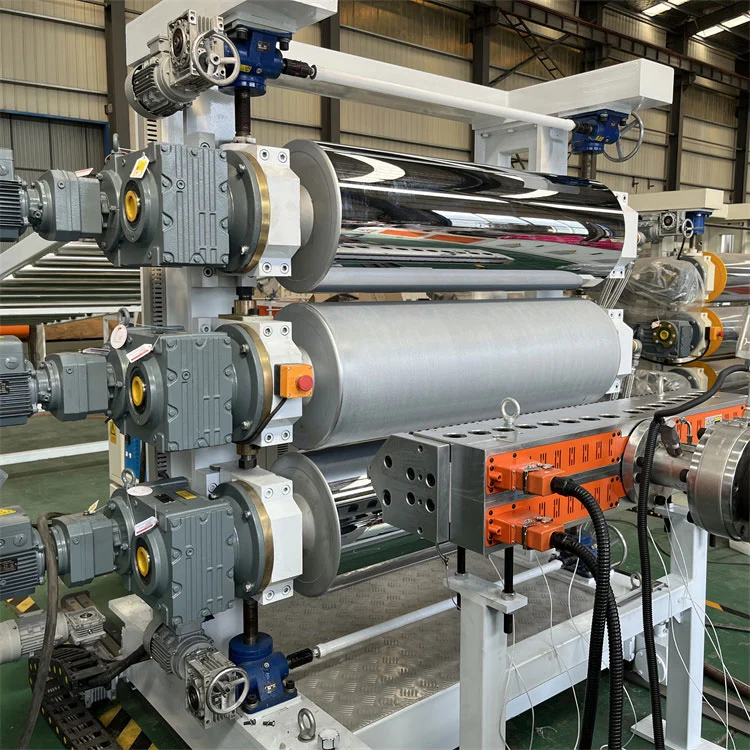

PVC livestock board equipment-Vertical three-roll calendering machine: one
A. Structure of the calendering machine: vertical three rolls (with roller safety protection device)
b. Number of rollers; three (produced in Qingdao)
C. Drum diameter: 40 0mm
d, roller length: 12 0 0mm
e. Wall thickness of the roller: ≥2 1 mm
F. Roll material: 45# steel is used, and hardening treatment is carried out, and the hardness can reach RC60-65
G. Roller surface treatment: mirror treatment
H. Drum structure: multi-layer composite rapid exchange system is adopted to ensure uniform and constant temperature of the drum.
I. Constant temperature medium of the roller: softened water
j. Three-roll control system: frequency conversion control is adopted to realize synchronous and independent speed control.
K, transmission system: 1.5KWx3=4.5kw, ensure the smooth operation of the three rollers.
PVC livestock board equipment-Stainless steel cooling bracket: 1 set
A. Cooling rack length: 6 meters.
B. Roller: all made of stainless steel.
c. Roll spacing within the first two meters: 400mm.
D. The bracket is equipped with a cutting edge device: 1 set, and the cutting knife is made of high-quality alloy knife
e. Bearing: Adjustable bearing

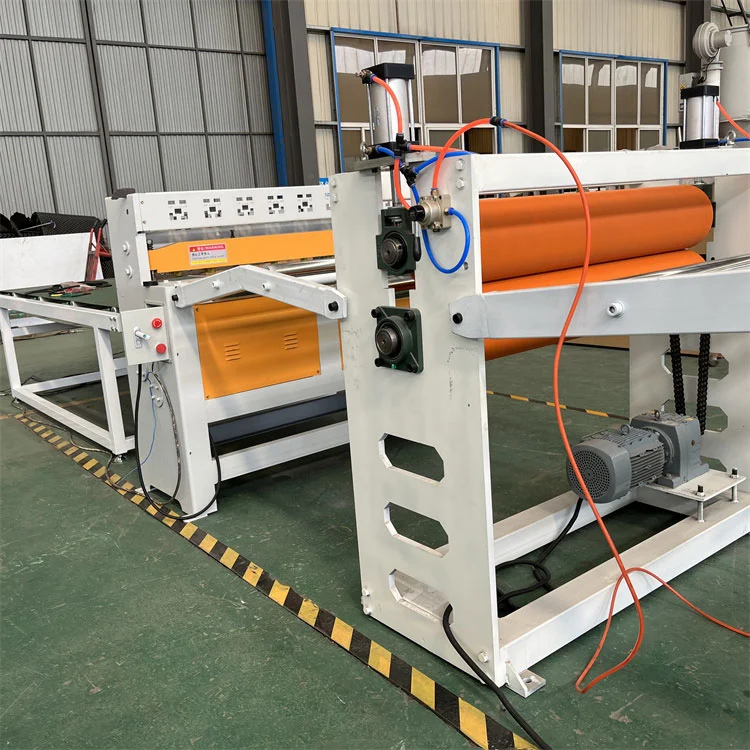

PVC livestock board equipment-Rubber roller traction machine: 1 unit
A. Traction rubber rollers: 2
b. Traction roller diameter: 220mm
c. Traction roller length: 12 00mm
D, traction rubber roller surface: corrosion resistant, temperature resistant, wear-resistant rubber and polishing.
e. Transmission system: gear reducer transmission is adopted
F. Traction control: Invincible or Weichuang frequency converter
G. Speed control: equipped with three roller calender and traction speed linkage adjustment system, the traction machine can be independently speed adjusted

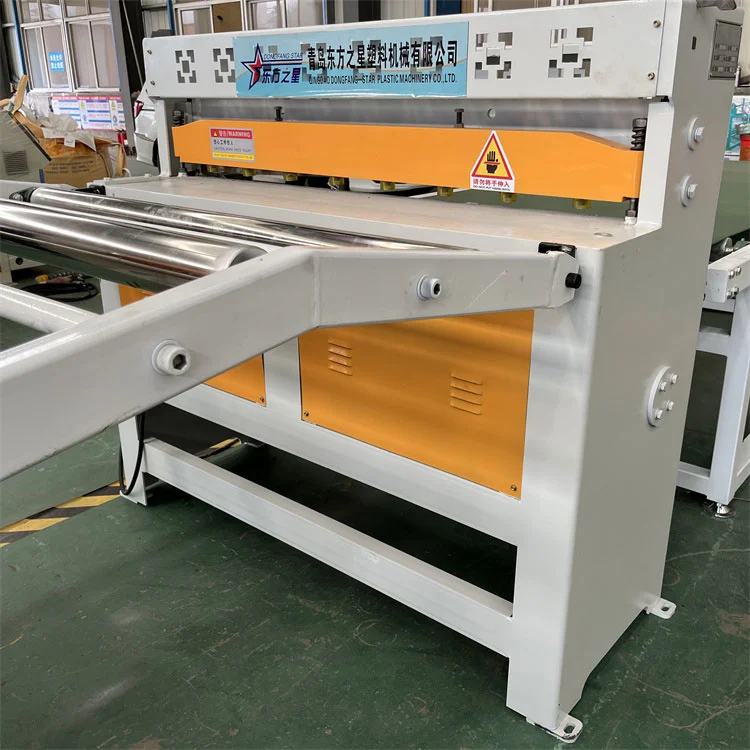

PVC livestock board equipment-Cutting machine
Cutting width: 1000MM
b. Motor power: 2.2KW
c. Cutting control: electric
d. Metering method: Korean Ottonix encoder
e. Cutting length: adjustable

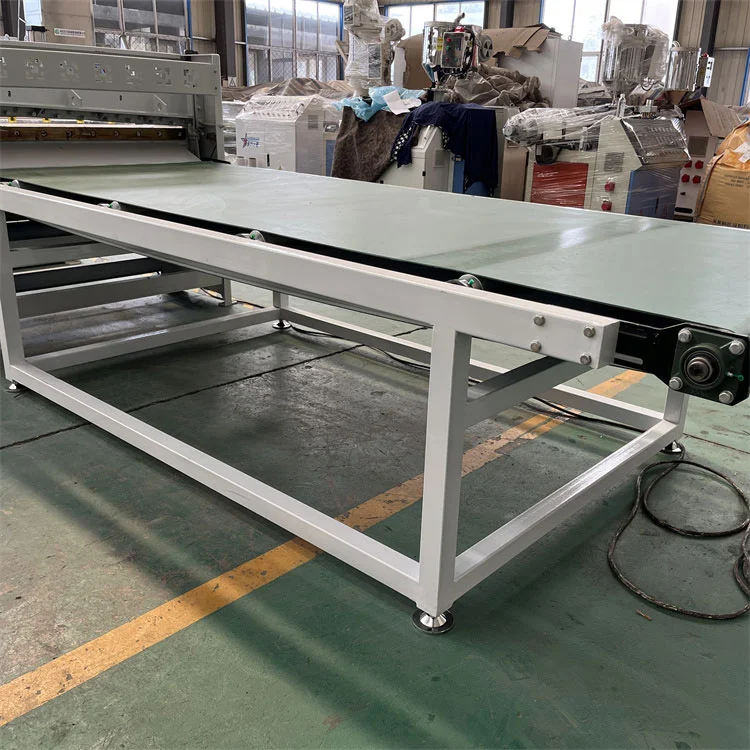

f. Receiving method: belt conveying, manual assistance
J. Belt conveying length: 3 meters
H. Conveying motor power: 0.75KW
