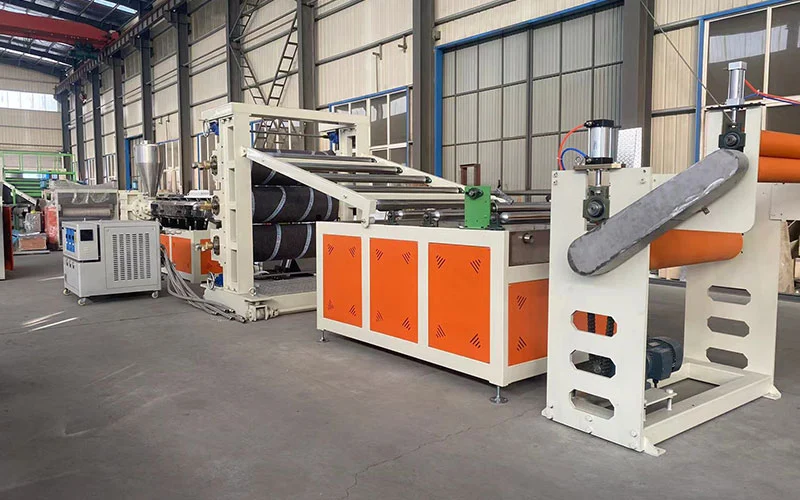

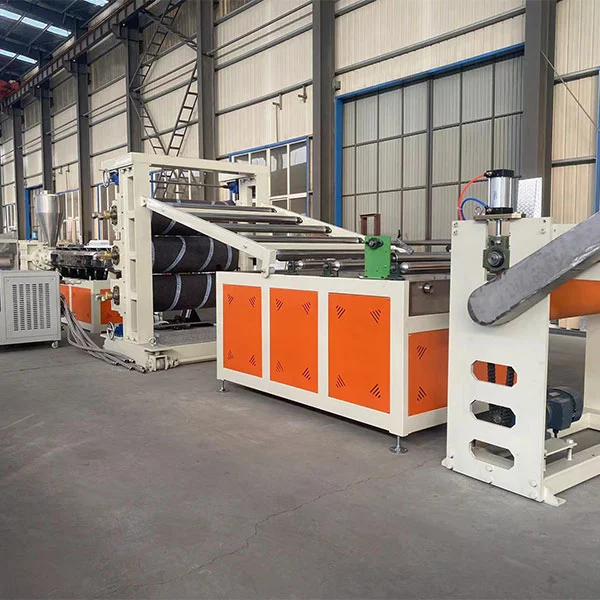

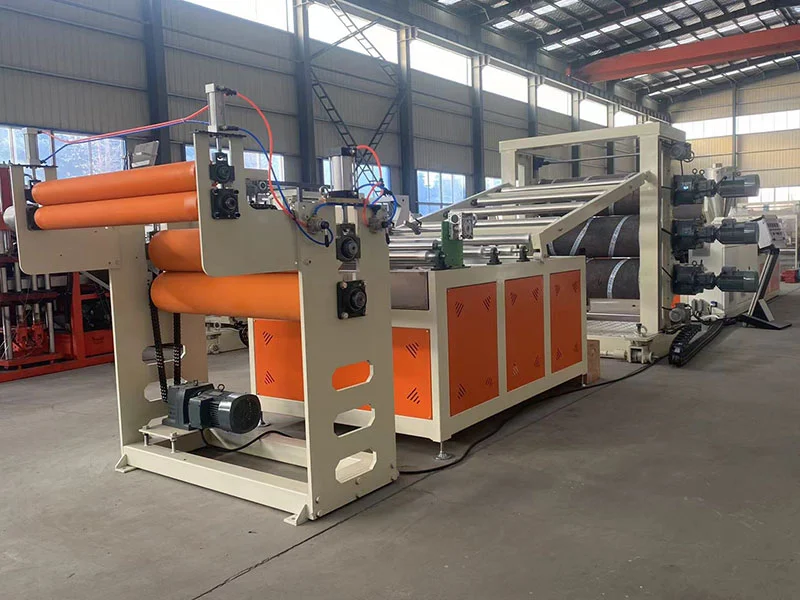

PVC transparent tablecloth machine uses a single screw extruder, a T-shaped elastic die with adjustable die, a vertical super mirror calender, a three-in-one water temperature machine, a stainless steel cooling water tank, and is equipped with a wide adjustable trimming knife, a rubber roller traction machine, and a friction winder. The electric control cabinet uses: Omron intelligent temperature controller, Siemens low-voltage electrical appliances, and a well-known domestic and foreign brand Weichuan inverter. The produced sheet surface is glossy, transparent and flawless, soft, without cracks, no odor, no bubbles, finely made, and widely used; used for home, fast doors, chemicals, insulation pads, and air-conditioned room partitions; the working temperature range is from minus 20 degrees Celsius to 60 degrees Celsius, and can be bonded and welded. Easy to clean.
| order number | name | quantity |
| 1 | Spiral feeder + hot air dryer | 1 set |
| 2 | SJ 90-3 3/ 1 extruder | 1 set |
| 3 | The DK-20 electronic control system | 1 set |
| 4 | MJ-750Plate Mold | 1 set |
| 5 | BF-800X 400 three-roller optical press | 1 set |
| 6 | BF-800-6000 Cooling bracket | 1 set |
| 7 | BF-800X 240 rubber roller tractor | 1 set |
| 8 | BF-800 rewinder | 1 set |
| 9 | Technical data of random equipment | 1 set |

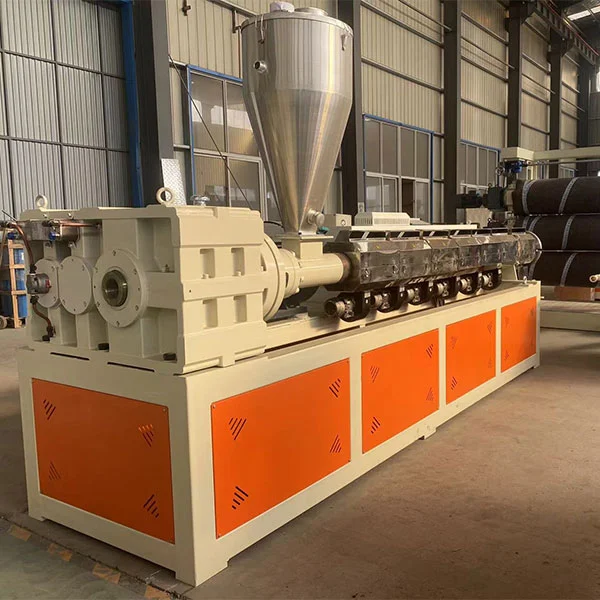

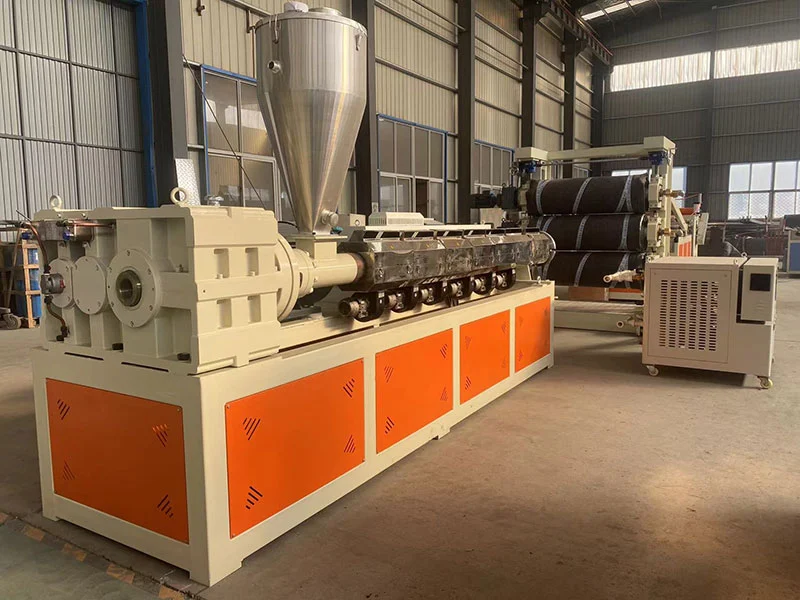

Single screw extruder SJ 90-33 / 1
| Screw diameter: | 90mm (Zhejiang Zhoushan Jinteng or five star screw) |
| Screw aspect ratio: | 33:1 |
| Screw rod structure: | a new type of high-efficiency screw rod |
| Cartridge screw material: | 38C rMoAIA nitrogen infiltration treatment |
| Depth of the nitride layer: | 0.4-0.7 mm |
| Screw hardness: | HV> 740 |
| Cartridge hardness: | HV> 940 |
| Screw rotation speed: | 10-50 rpm |
| Motor power: |
55 kW (Shandong brand-name motor) 4 kW of heating section 6 (cast aluminum + stainless steel hood) Drum cooling area 6180w |
| Extrusion quantity: |
100-150kg / h Y-250 reducer (produced in Changzhou, Jiangsu) |
| Installation form: |
belt drive or shaft joint straight connection Gear material is 20CrMnTi through carburizing quenching The cooling mode passes the condenser Automatic vacuum feeder E-100 KG type |
| Electrical appliance control system: |
Contactor Schneider or a Siemens contactor Temperature control table Omron intelligent temperature control table Inverter Inwitten frequency conversion speed governor Exhaust device |
| Vacuum pump: | Qingdao brand |
| Power: | 4kw |

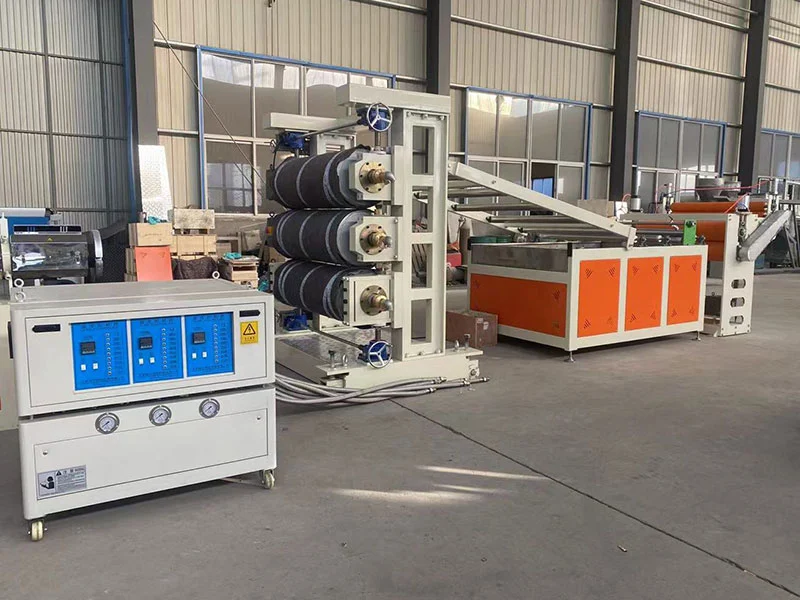

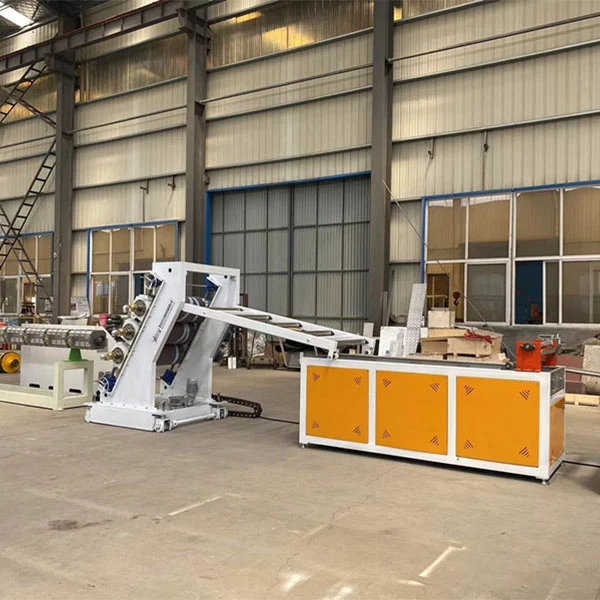

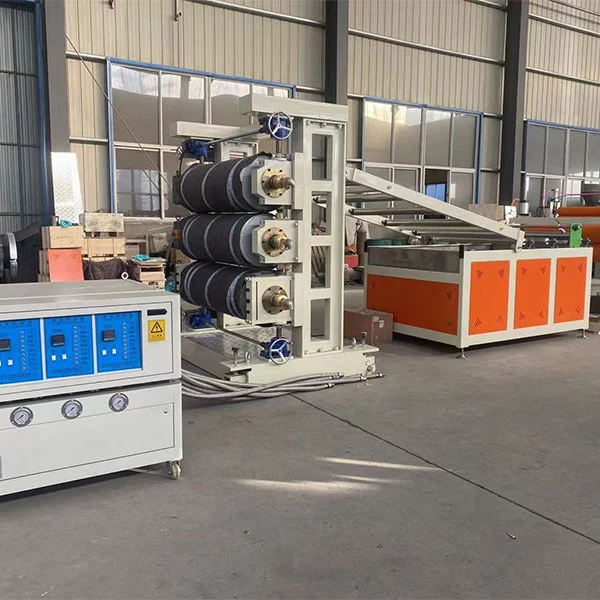

A. Press structure: vertical three-roller (equipped with roller safety protection device)
B. Number of rollers; Three (produced by Lianfeng, Changzhou, Jiangsu)
C. Roller diameter: 320mm
D. Roll length: 800mm
E. Wall thickness of the roller: 25mm
F. roller: the material uses 45 # steel, and after the hard treatment, the hardness can reach RC60-65
G. roller surface treatment: mirror treatment
H. The roller structure adopts a multi-layer composite rapid exchange system to ensure the uniform constant temperature of the roller.
I. Constant temperature medium of the roller: softening the water
J. The three-roll control system adopts frequency conversion control, which can realize synchronization and independent speed control.
The control system of k and three rollers adopts the independent control system mode
k. The F reducer transmission system is adopted to ensure the smooth operation of the three rolls.
l. the transmission power of 1.5KWx3=4.5kw
A. Length of 4m.
B. The roller is made of stainless steel pipe.
C. The roll distance within the first two meters is 400mm.
d. The bracket has 1 set of edge cutting device, which is made of high quality alloy knife.
There are 3 alloy edge cutters above the cooling rack

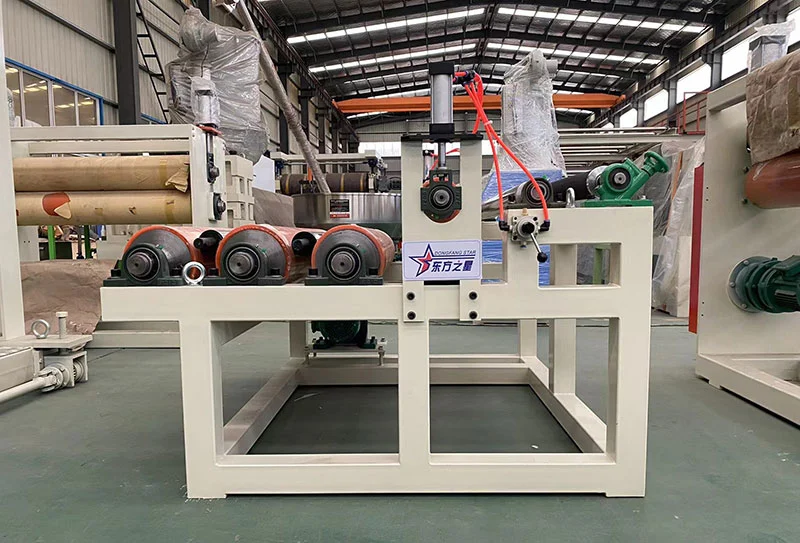

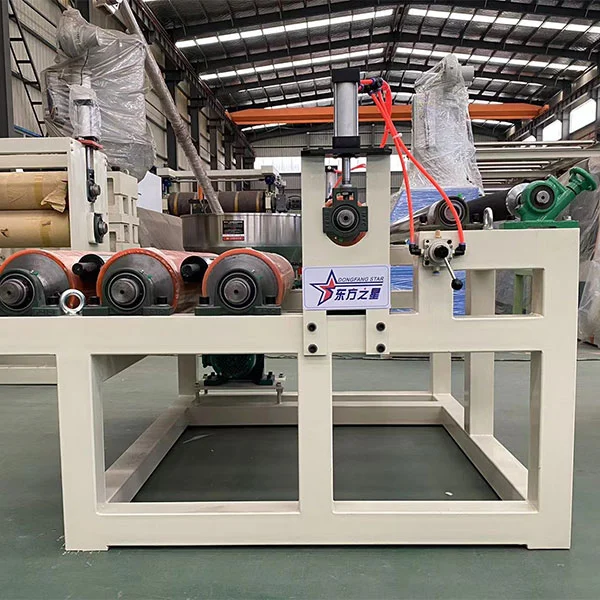

A. Traction rubber roller: 2 pieces
B. Traction roller diameter: 220mm
C. Length of the traction roller: 800mm
D. The traction rubber roller surface is corrosion resistant and temperature resistant rubber and polished (Hebei Baoding Special Rubber Products Factory)
E. Reduction drive system adopts reducer drive (high-torque F-series gear reducer)
F. With a 1.5KW frequency converter
G. equipped with a three-roller press and traction speed linkage adjustment system. the tractor can be independent speed control system

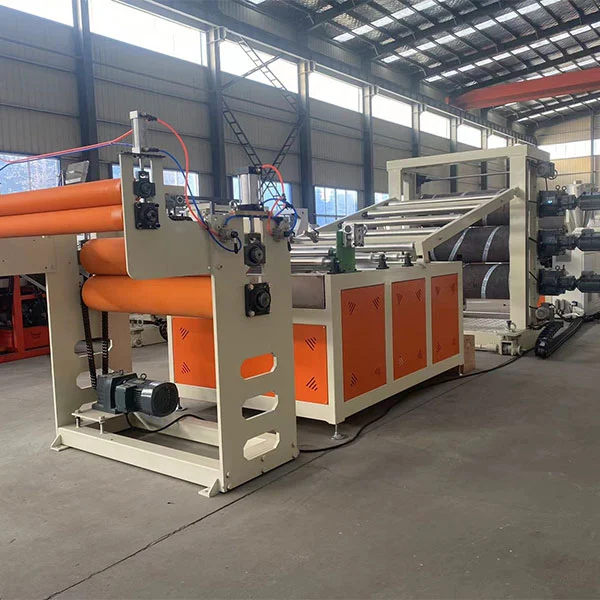

A. Volume width: 200MM
B. Motor power: 1.5
C. Number of stations: double stations
d. Number of rolls: 2
E. Volume diameter: 200-400mm
F. Uncharge method: manual assistance
