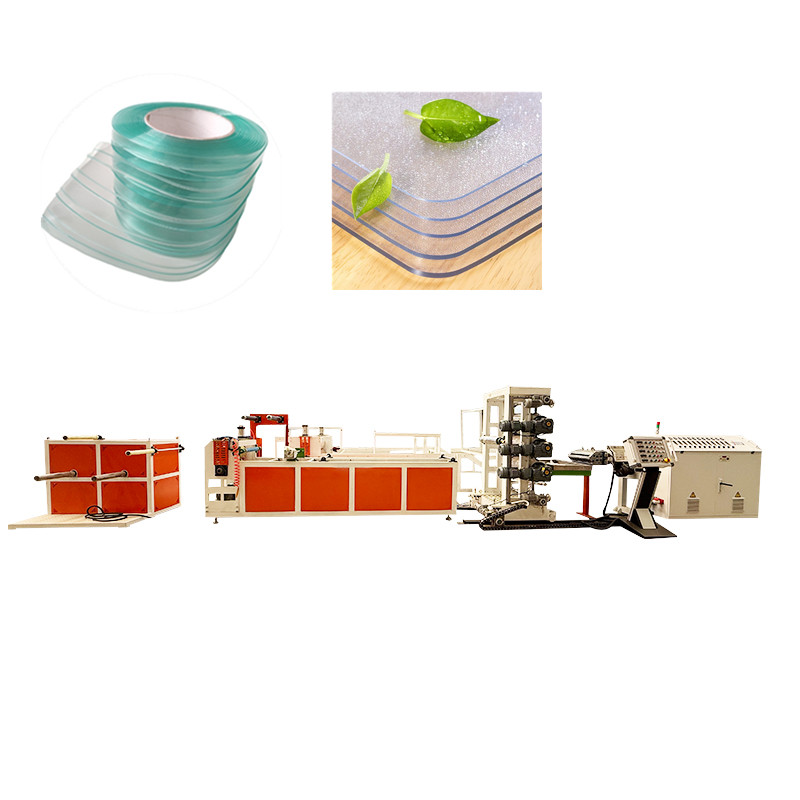

Qingdao East Star Plastic Machinery Co., Ltd. is a manufacturer specializing in the production of PVC strip door curtain extruder machine. The three-roll calender used in our PVC strip door curtain extruder machine is independently developed and designed, which can achieve one machine for multiple uses. It can produce both strip door curtains and smooth or matte soft door curtains, which greatly reduces production investment and facilitates production. Welcome to purchase. And the factory has PVC strip door curtain equipment in stock all year round
| order number | name | quantity | remarks |
| 1 | Spiral feeder + hot air dryer | 1 set | The main components of the whole line adopt well-known brands at home and abroad: The electrical system adopts Siemens contactor, Omron intelligent temperature controller and Inwitfrequency frequency regulator. The hard tooth face reducer adopts plastic machine special high torque gear reducer. Screw material cylinder using one of the top ten domestic brands of Zhejiang five star or Jinteng screw The mirror roller is made by Changzhou Lianfeng Machinery. |

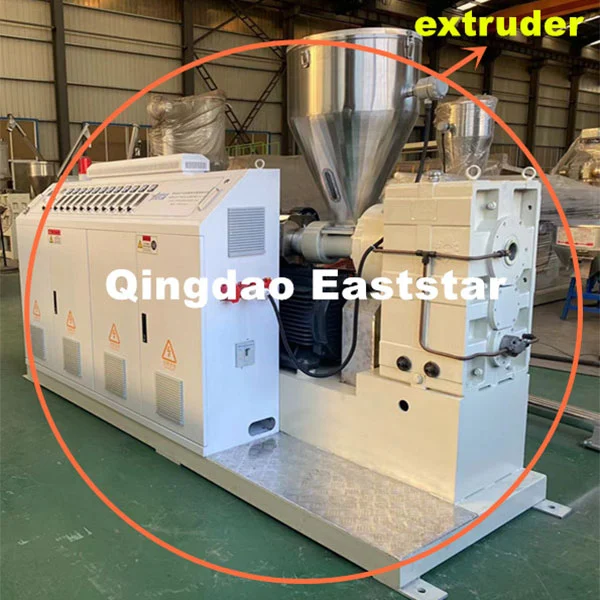

| 2 | SJ 90-33/1 extruder | 1 set | |
| 3 | DK-14 Electronic control system | 1 set | |

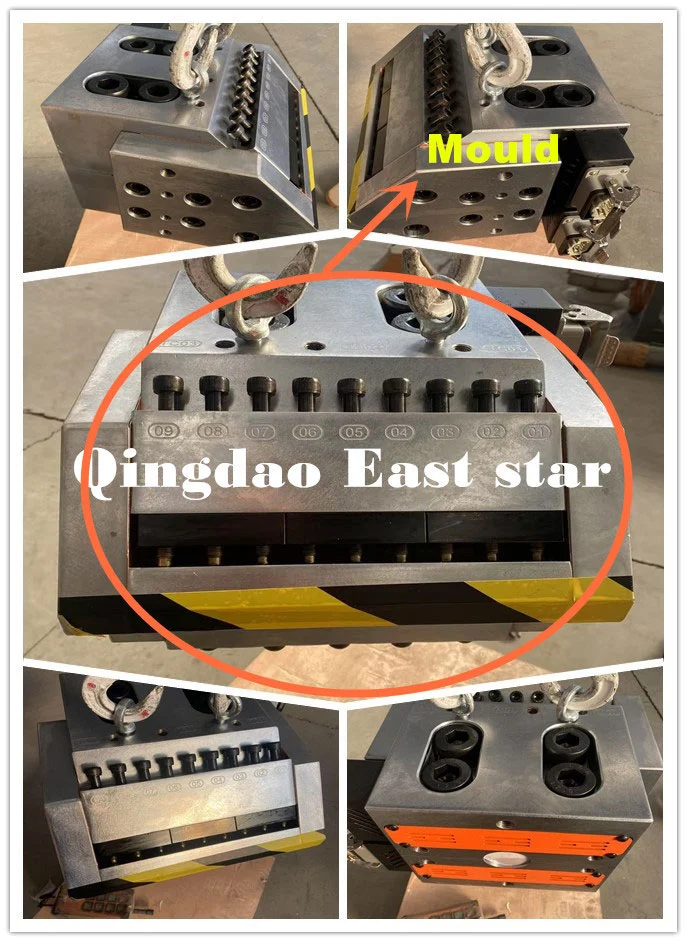

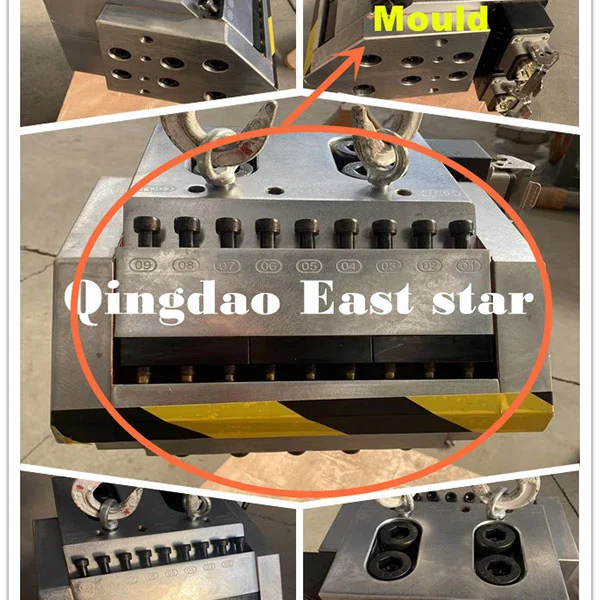

| 4 | MJ-200 sheet Mold | 1 set | |

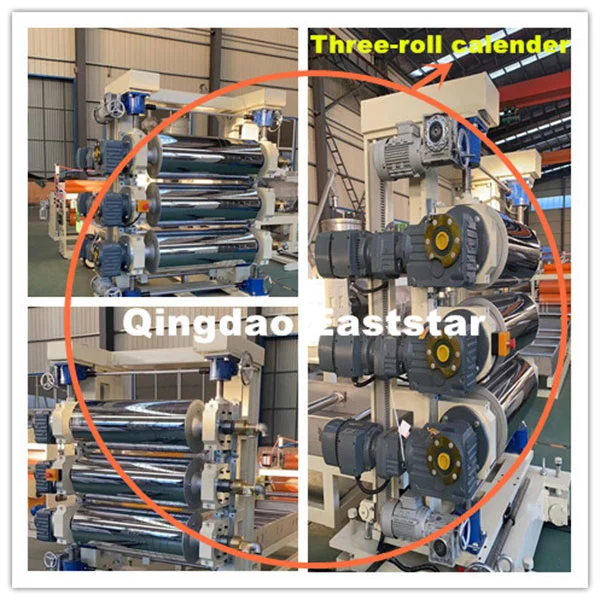

| 5 | BF-800X 320 three-roller optical press | 1 set | |

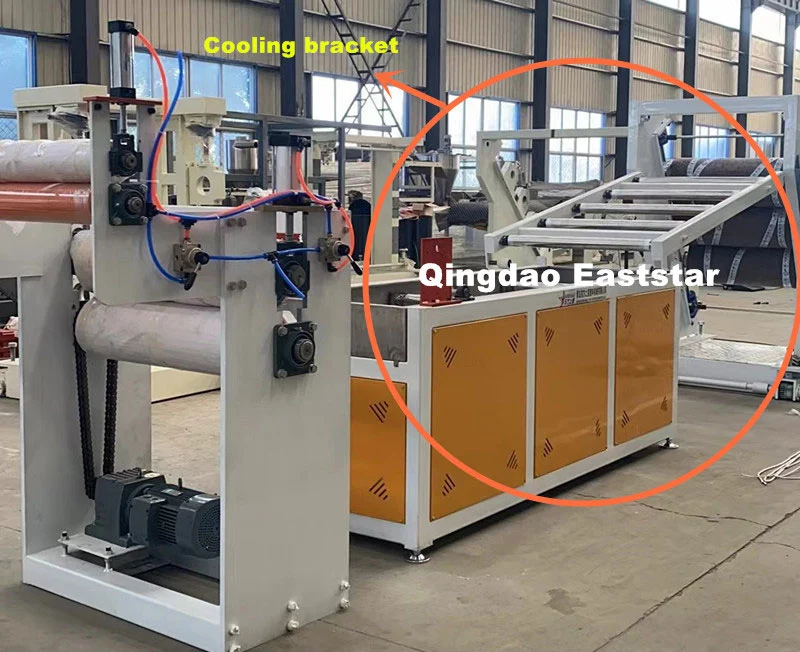

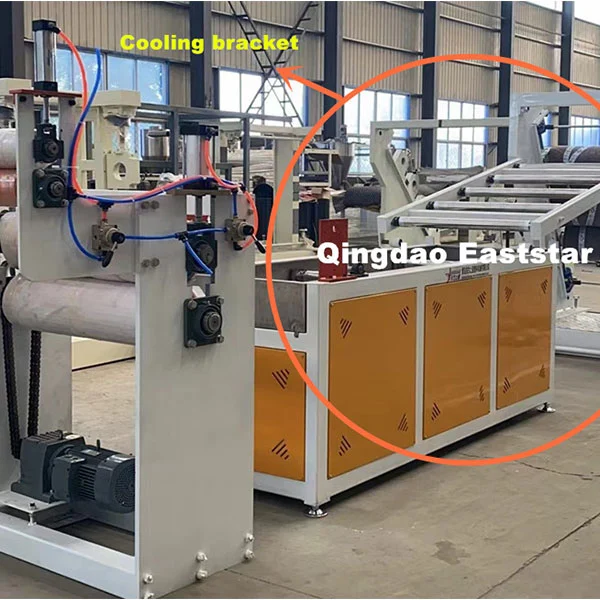

| 6 | BF-800-4000 cooling bracket | 1 set | |

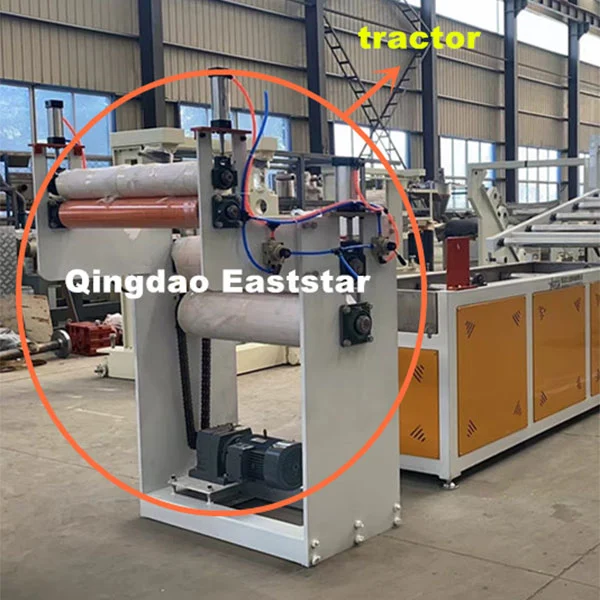

| 7 | BF-800X 200 rubber roller tractor | 1 set | |

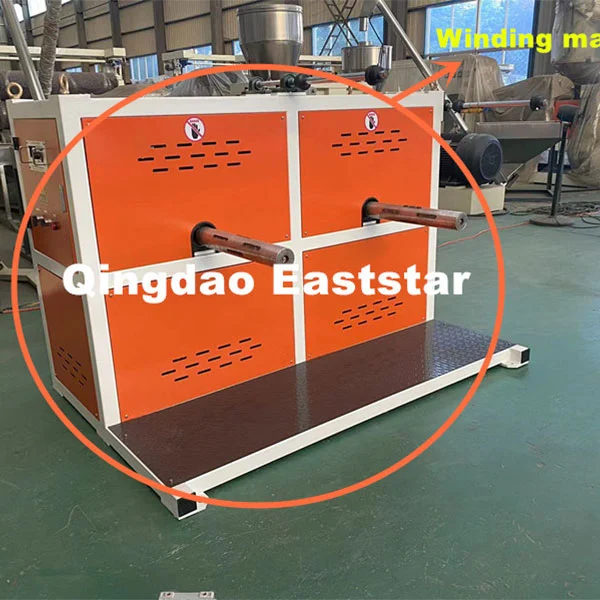

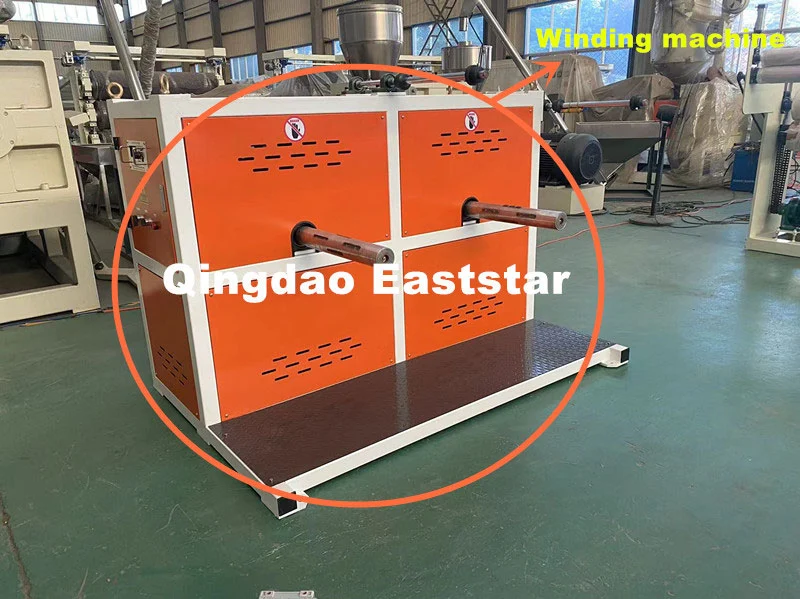

| 8 | The BF-600 friction winder | 1 set | |
| 9 | Three-in-one water-type thermostat | 1 set | |
| 10 | Technical data of random equipment | 1 set |
| Screw diameter: | 90mm (Zhejiang Zhoushan Jinteng or five star screw) |
| Screw aspect ratio: | 33:1 |
| Screw rod structure: | a new type of high-efficiency screw rod |
| Cartridge screw material: | 38C rMoAIA nitrogen infiltration treatment |
| Depth of the nitride layer: | 0.4-0.7 mm |
| Screw hardness: | HV> 740 |
| Cartridge hardness: | HV> 940 |
| Screw rotation speed: | 10-50 rpm |
| Motor power: |
37 kW (Shandong brand-name motor) 4 kW of heating section 6 (cast aluminum + stainless steel hood) Drum cooling area 6180w |
| Extrusion quantity: |
100-150kg / h Y-250 reducer (produced in Changzhou, Jiangsu) |
| Installation form: |
belt drive or shaft joint straight connection Gear material is 20CrMnTi through carburizing quenching The cooling mode passes the condenser Automatic vacuum feeder E-100 KG type |
| Electrical appliance control system: |
Contactor Schneider or a Siemens contactor Temperature control table Omron intelligent temperature control table Inverter Inwitten frequency conversion speed governor |
Mold material high quality mold steel forging, plating hard chromium, polishing processing
The thickness of the clothing rack type plate machine piece is 1-3 mm, and the product width is 200 / 300mm
The effective width of each mold is 240 / 350mm
The heating power is 15 / 9 kW and is internally heated
Area 3 of the temperature control section
The nose runner form is a clothes rack type gradient runner, the head is made of high quality alloy steel 5CrNIMo, the surface is chrome plated and polished; the upper mold lip is adjusted, and the lower mold lip can be replaced.

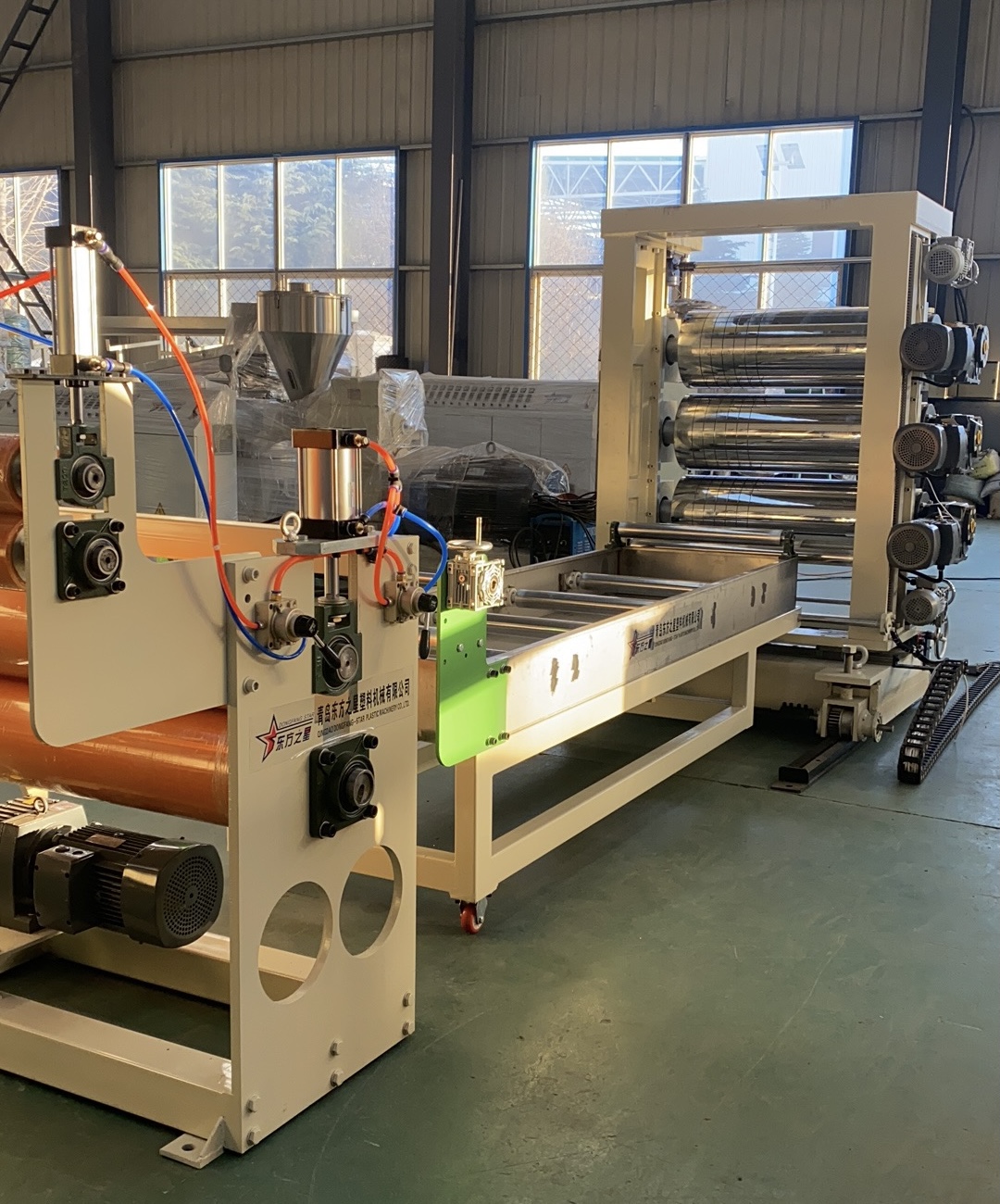

A. Press structure: vertical three-roller (equipped with roller safety protection device)
B. Number of rollers; Three (produced by Lianfeng, Changzhou, Jiangsu)
C. Roller diameter: 320mm
D. Roll length: 800mm
E. Wall thickness of the roller: 25mm
F. roller: the material uses 45 # steel, and after the hard treatment, the hardness can reach RC60-65
G. roller surface treatment: mirror treatment
H. The roller structure adopts a multi-layer composite rapid exchange system to ensure the uniform constant temperature of the roller.
I. Constant temperature medium of the roller: softening the water
J. The three-roll control system adopts frequency conversion control, which can realize synchronization and independent speed control.
The control system of k and three rollers adopts the independent control system mode
I. The F reducer transmission system is adopted to ensure the smooth operation of the three rolls.
J. the transmission power of 1.5KWx3=4.5kw
A. Length of 5 m.
B. The roller is made of stainless steel pipe.
C. The roll distance within the first two meters is 400mm.
d. The bracket has 1 set of edge cutting device, which is made of high quality alloy knife.
A. Traction rubber roller: 2 pieces
B. Traction roller diameter: 220mm
C. Length of the traction roller: 800mm
D. The traction rubber roller surface is corrosion resistant and temperature resistant rubber and polished (Hebei Baoding Special Rubber Products Factory)
E. Reduction drive system adopts reducer drive (high-torque F-series gear reducer)
F. With a 1.5KW frequency converter
G. equipped with a three-roller press and traction speed linkage adjustment system. the tractor can be independent speed control system
A. Volume width: 400MM
B. Motor power: 1.5
C. Number of stations: double stations
d. Number of rolls: 2
E. Volume diameter: 200-400mm
F. Uncharge method: manual assistance
