The equipment uses a single screw extruder, a T-shaped elastic die with adjustable die, a vertical super mirror calender, a three-in-one water temperature machine, a stainless steel cooling water tank, and is equipped with a wide adjustable trimming knife, a rubber roller traction machine, and a friction winder. The electric control cabinet uses: Omron intelligent temperature controller, Siemens low-voltage electrical appliances, and a well-known domestic and foreign brand Weichuan inverter. The produced sheet surface is glossy, transparent and flawless, soft, without cracks, no odor, no bubbles, finely made, and widely used; used for home, fast doors, chemicals, insulation pads, and air-conditioned room partitions; the working temperature range is from minus 20 degrees Celsius to 60 degrees Celsius, and can be bonded and welded. Easy to clean.
| order number | name | quantity |
| 1 | Spiral feeder + hot air dryer | 1 set |
| 2 | SJ 120-3 4 / 1 extruder | 1 set |
| 3 | The DK-20 electronic control system | 1 set |
| 4 | MJ-1160 Plate Mold | 1 set |
| 5 | BF-1400X 400 three-roller optical press | 1 set |
| 6 | BF-1400-6000 Cooling bracket | 1 set |
| 7 | BF-1400X 240 rubber roller tractor | 1 set |
| 8 | BF-1200 rewinder | 1 set |
| 9 | Technical data of random equipment | 1 set |

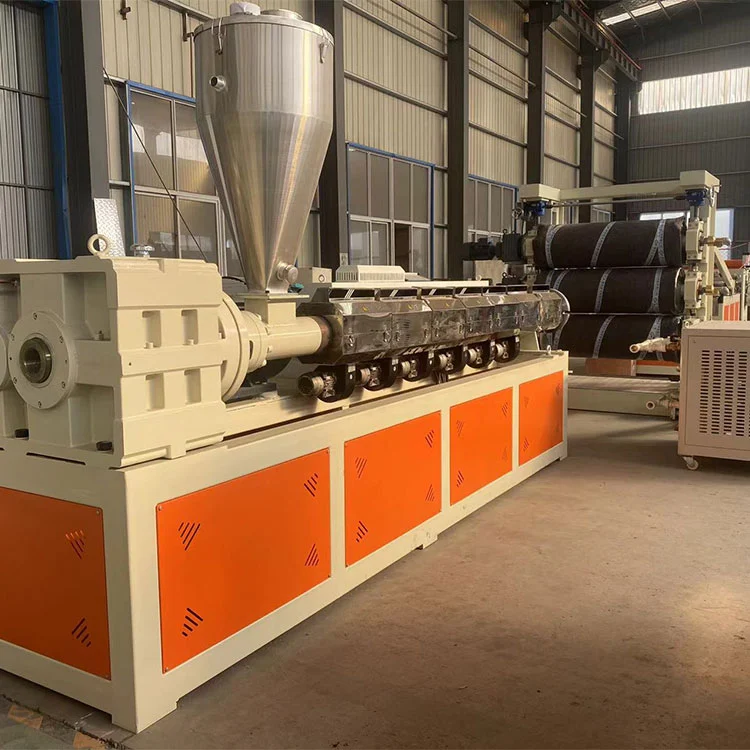

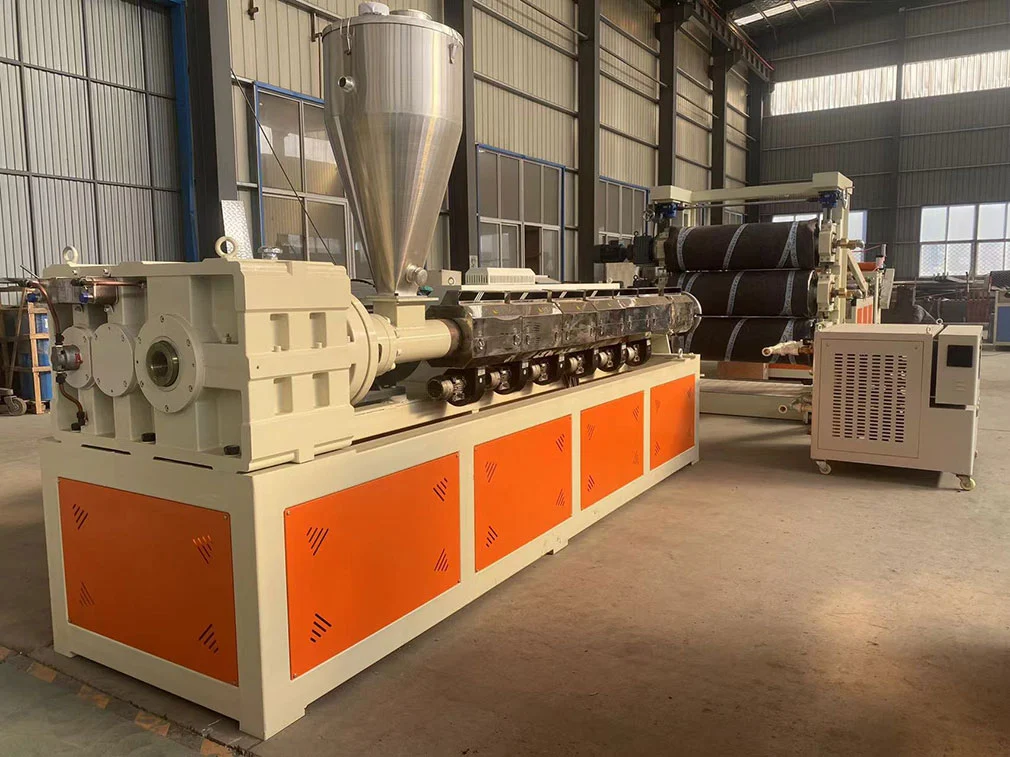

Single-screw extruder SJ 120 3 4 / 1
● Screw diameter: 120mm (produced in Zhoushan, Zhejiang Province)
● Screw aspect ratio: 3 4:1
● Screw rod structure: a new type of highly efficient screw rod
● Cartridge screw material: 38C rMoAIA nitrogen infiltration treatment
● Depth of the nitride layer: 0.4-0.7 mm
● Screw hardness: HV> 740
● Cartridge hardness: HV> 940
● Screw rotation speed: 10-70 rpm
● Motor power: 110 kW (Shandong brand-name motor)
● 5 kw of heating section 8 (cast aluminum + stainless steel air hood)
● Drum cooling area 8-250w
● Extrusion quantity: 200-40 0kg / h
● reducer hard tooth face reducer Y-315 reducer (produced in Changzhou, Jiangsu)
● Installation form of belt drive or shaft joint straight connection
● Gear material 20CrMnTi through carburizing quenching
● The cooling mode passes the condenser
● Automatic vacuum feeder E-200 KG type
● Electrical appliance control system:
● Contactor The Schneider contactor
● Temperature control table Omron intelligent temperature control table
● INVT frequency conversion speed governor
BF-1160 coat hanger type plate mold:
● Mold material high quality mold steel forging, plating hard chromium, polishing processing
● The thickness of the rack plate head is 0. 5-5mm and the product width is 1000mm
● Effective width of the die is 1160mm
● The heating power of 15 kW adopts the internal heating mode
● Area 7 of the temperature control section
● The nose runner is a rack gradient runner. The head is made of high quality alloy steel 40 CrMo, the surface is plated and polished; the mold lip is adjusted, and the lower mold lip can be replaced.

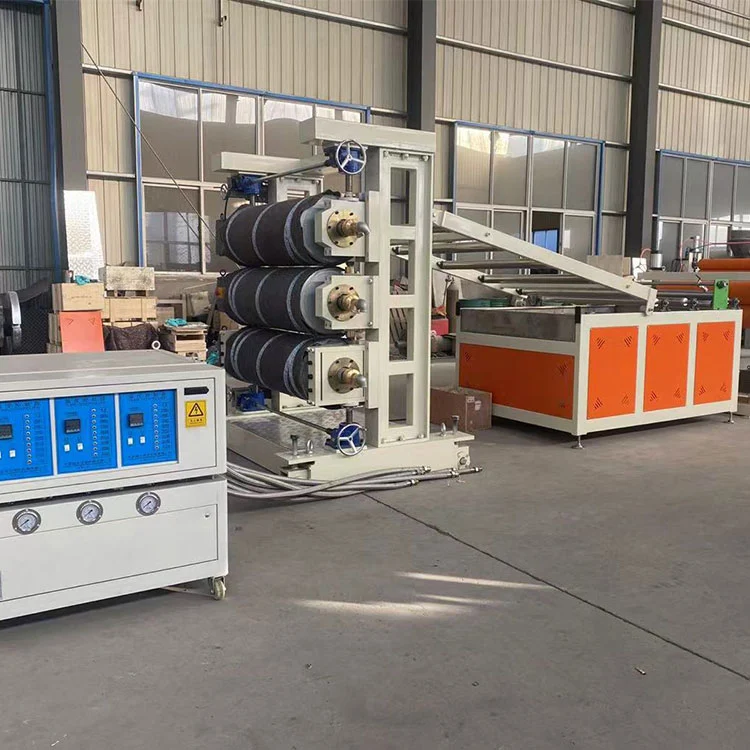

BF-1400X 400 three-roller optical press:
● Prespressed roller diameter Φ400mm (Changzhou Manufacturing)
● The roller processing process is passed through the mirror processing
● Three roller material 45 # finishing and quality,
● Chrome plating thickness of 0.05-0.1mm
● Effective length of roller is 1400mm
● Drive motor power 1.5kw 3 sets (high torque gear deceleration motor drive)
● The roller line speed is 0.5-12m / min
● The roller heating constant temperature system adopts three water temperature automatic control machines, which can control the roller temperature separately respectively.
The drive deceleration motor is controlled by variable frequency to achieve stepless speed regulation with high operation accuracy and overcome the error caused by mechanical transmission; the upper and lower roller clearance is controlled by the limit system, and the roller clearance can be adjusted by manual or deceleration motor; and the upper and lower limit systems are installed to ensure safety.
● Support frame length is 6,000 mm
● Stainless steel roller diameter: Φ 75mm
● Stainless steel roller length: 1,400 mm
● Cold ground frame with the roller arrangement of 8 meters of roller road, under the bracket.
● There are 3 alloy edge cutters above the cooling rack

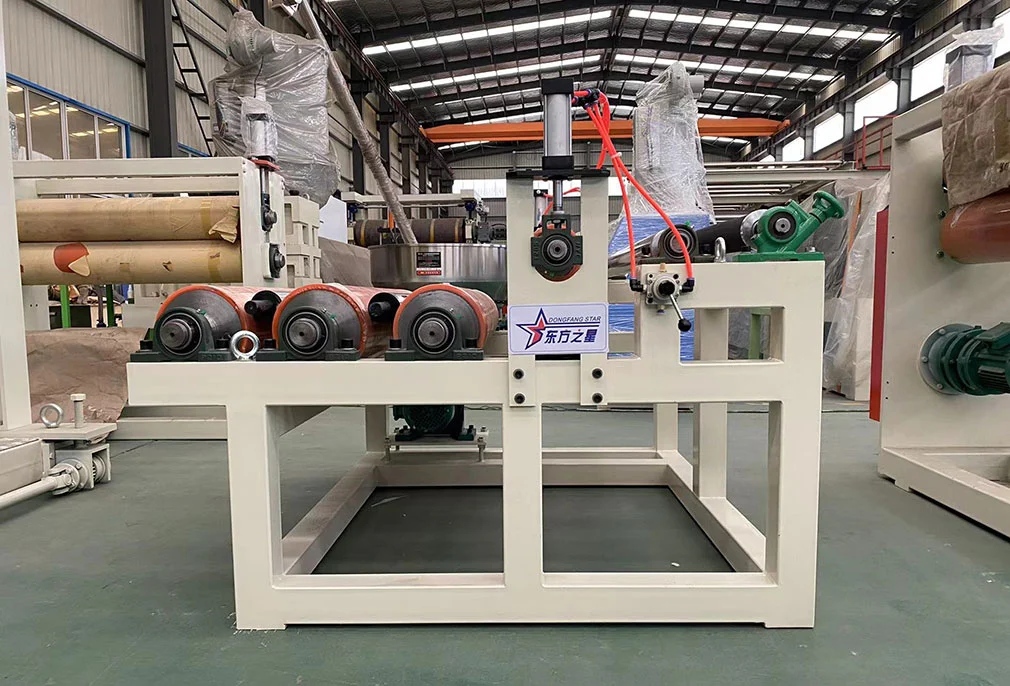

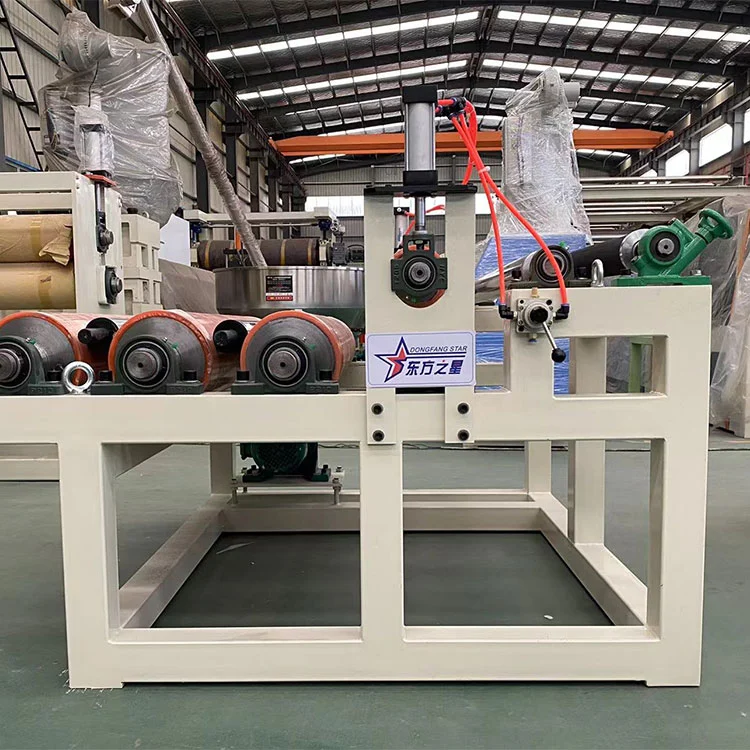

● Traction mode (group 1): two rubber rollers
● Rubber roller material: polyurethane adhesive roller
● 240mm
● Planetary cycloid speed reducer XWD-3-1.5-43
● Motor power is 2.2 kW
● Speed control mode, frequency converter
● Transmission mode: gear or sprocket drive
● Memeter rotation encoding
● The product width is 1200MM.
● Motor power is 1.5KW
● Wwinding mode roller friction type
● The volume length is 20-50 m
