Applications of HDPE Composite Aluminum Composite Panels

2025-11-20

Applications of HDPE Composite Aluminum Composite Panels

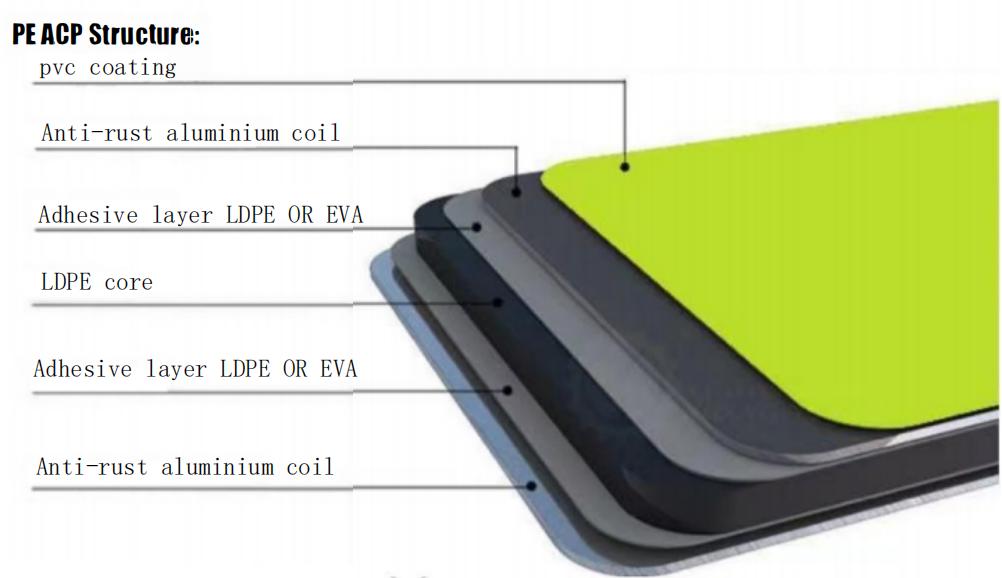

HDPE composite aluminum composite panels have a wide range of applications, thanks to their unique properties, offering advantages over other materials in various fields. HDPE composite aluminum composite panels retain the main characteristics of their original constituent materials (metallic aluminum and non-metallic polyethylene plastic) while overcoming their shortcomings, resulting in numerous superior material properties such as luxurious appearance, vibrant colors, weather resistance, corrosion resistance, impact resistance, fire resistance, moisture resistance, sound insulation, heat insulation, and shock resistance; lightweight, easy processing and molding, and easy handling and installation. Therefore, they are widely used in various building decorations, such as ceilings, column cladding, counters, furniture, telephone booths, elevators, shop fronts, billboards, and factory wall materials. They have become a representative of metal curtain walls (one of the three major curtain wall types, natural stone, glass, and metal). In developed countries, composite aluminum composite panels are also used in the manufacture of buses and train carriages, as sound insulation materials for aircraft and ships, and in the design of instrument enclosures.

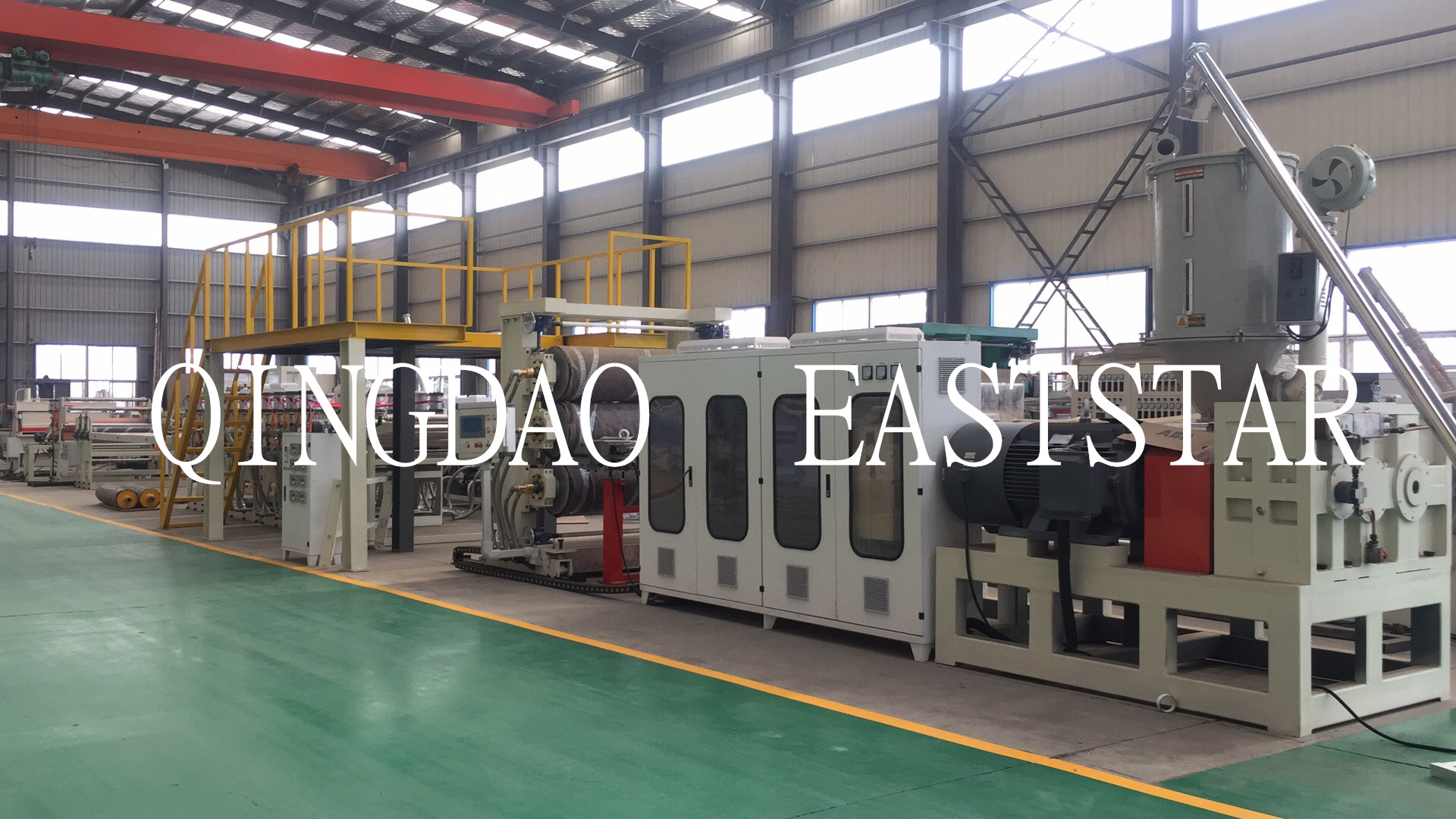

Composition of HDPE Composite Aluminum Composite Panel machine

序号NO. 设备Equipment 数量Qty.
1 85/170 同向锥双挤出机95/203 Co-rotating conical screw 1台1set
2 模具及液压换网器T-die and Hydraulic screen changer 1套1set
3 1950mm宽PE板机头1950mm T-die for 1700mm PE sheet 1套1set
4 JWLY2000三辊压光机JWLY 2000 Two-roller calendar 1套1set
5 水介质辊筒恒温装置Water medium calendar temperature controller 1套1set
6 覆高分子粘结膜机Macromolecule film covering unit 1台1set
7 四工位上下放铝箔机Four-station aluminum-placing unit 1台1set
8 铝塑热复合机Thermo-shaping machine for plastic-aluminum plate 1台1set
9 冷却装置Cooling Unit 1套1set
10 冷却风箱Cooling unit 1套1set
11 覆保护膜机Protection film covering unit 1台1set
12 牵引机Haul-off unit 1台1set
13 滚切,修边机组Generating cutting trimming machine 1台1set
14 横切、输送机Transverse cutter and transmission machine 1台1set
15 高温导热油加热器High temperature conductive oil 1台1set
16 五辊校平装置Five Roller leveler 1台1set
17 机械手Automatic stacker 1台1set
18 2000Kg/h 上料机(磁力架)2000kg/h Auto loader (magnetic rack) 1台1set
19 PLC控制系统PLC control unit 1套1set
